HP 1910 User Manual

337

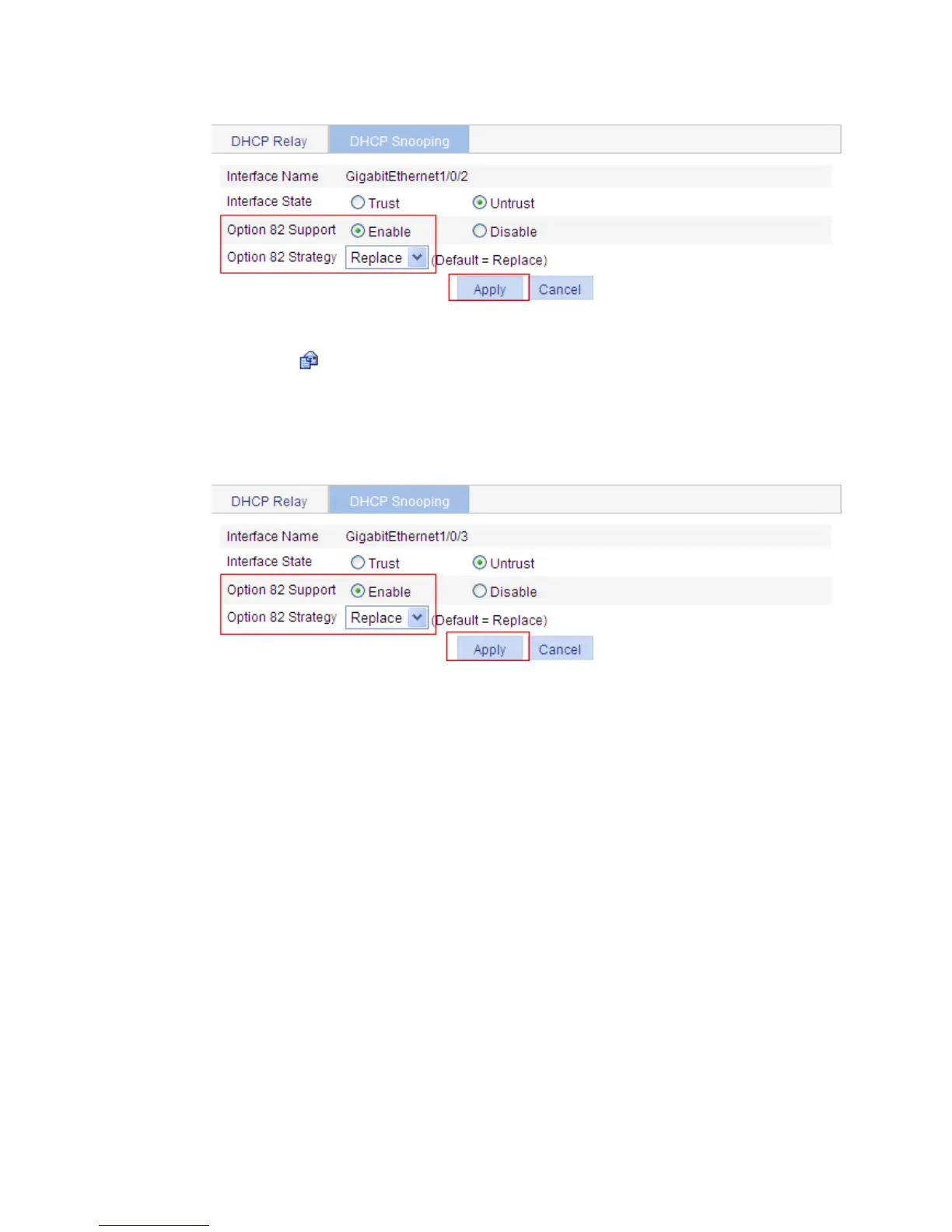

Figure 306 Configuring DHCP snooping functions on GigabitEthernet 1/0/2
4. Configure DHCP snooping functions on GigabitEthernet 1/0/3:
a. Click the icon for GigabitEthernet 1/0/3 on the interface list.
b. Select the Untrust option for Interface State, select the Enable option next to Option 82 Support,
and select Replace for Option 82 Strategy.
c. Click Apply.
Figure 307 Configuring DHCP snooping functions on GigabitEthernet 1/0/3

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
