HP 1910 User Manual

25

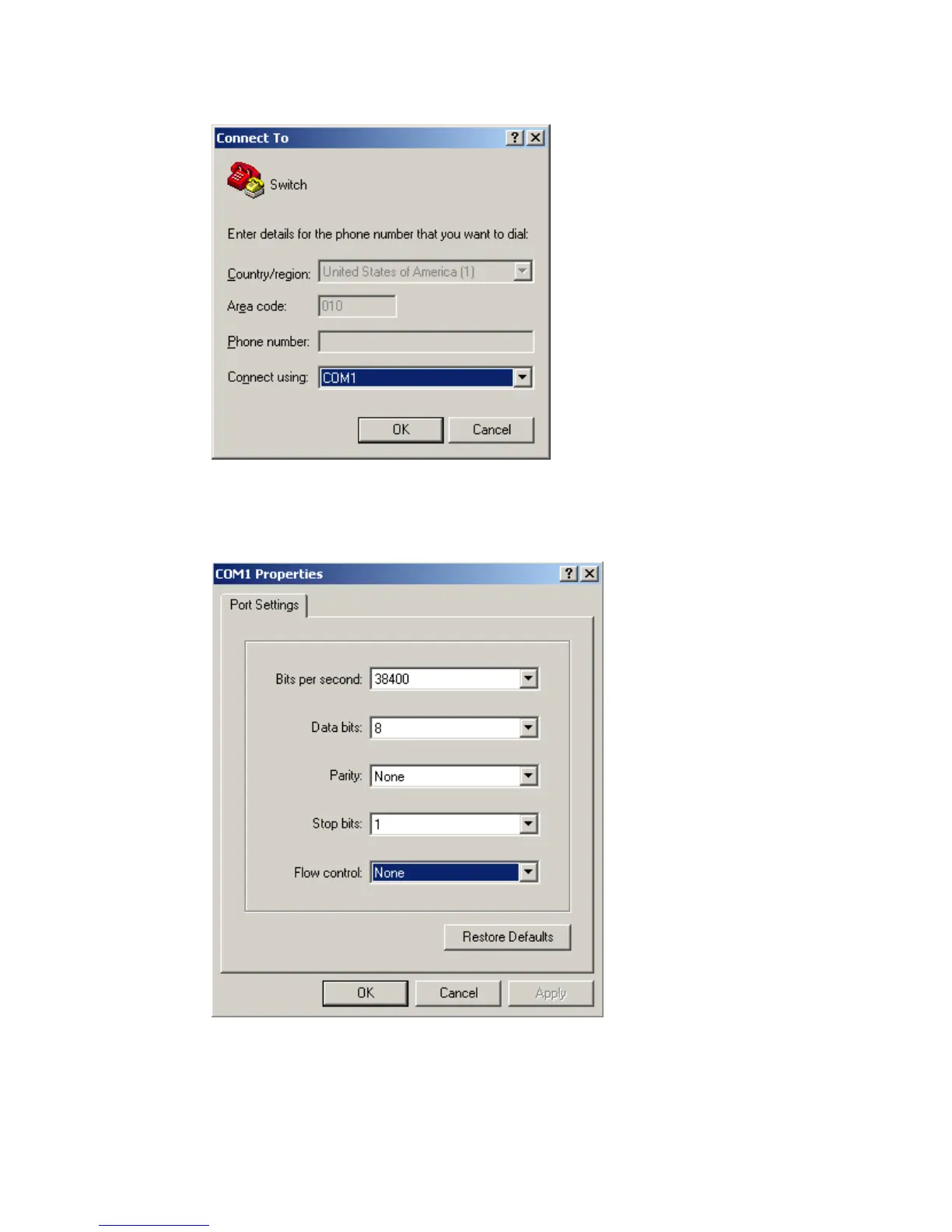

Figure 19 Setting the serial port used by the HyperTerminal connection
4. Set Bits per second to 38400, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to
None, and click OK.
Figure 20 Setting the serial port parameters
5. Select File > Properties in the HyperTerminal window.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
