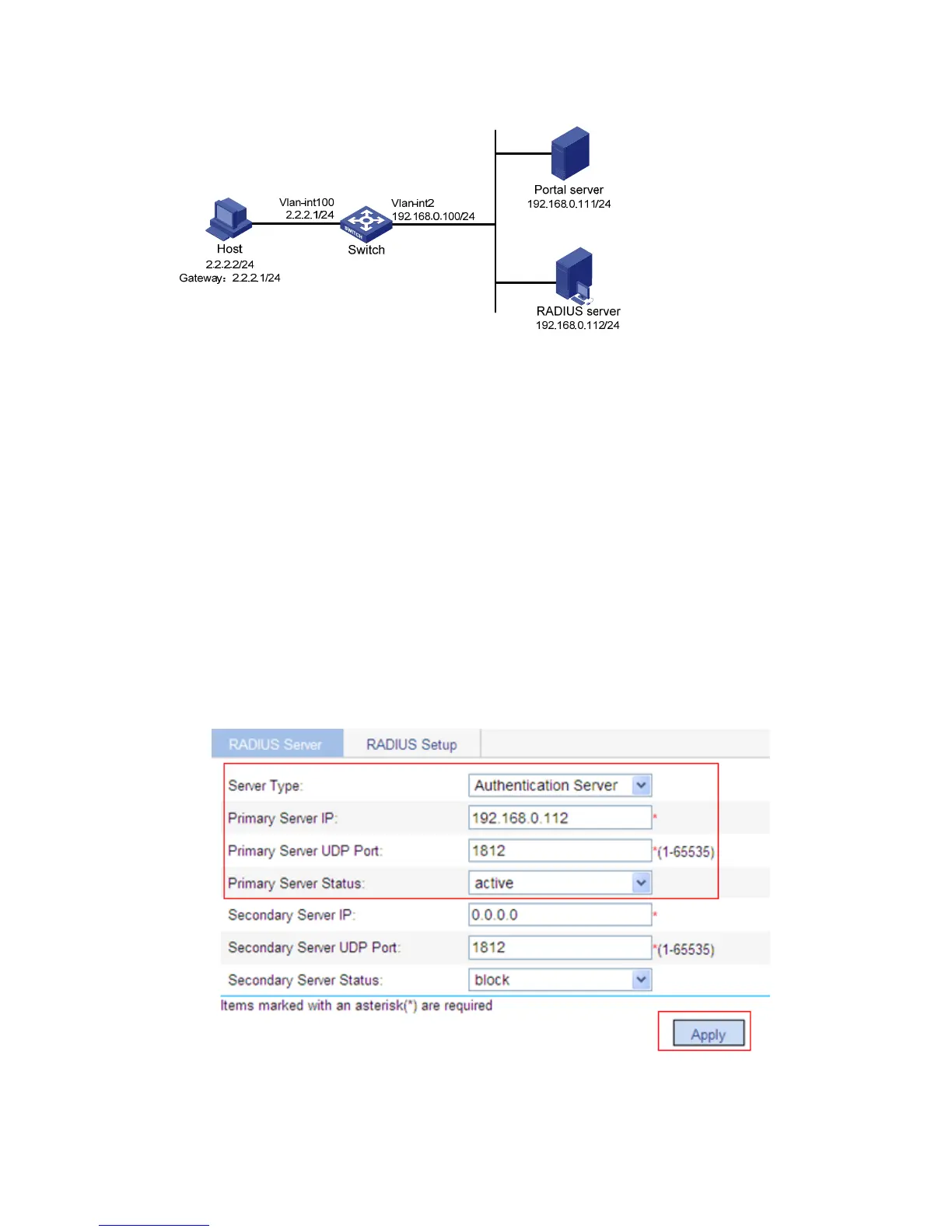

Figure 395 Network diagram
Configuration prerequisites
Make sure the IP address of the access device added on the portal server is the IP address of the interface
connected to the host (2.2.2.1 in this example), and the IP address group associated with the access
device is the subnet where the host resides (2.2.2.0/24 in this example).
Configure IP addresses for the host, switch, and servers as shown in Figure 395 and mak
e sure they can
reach each other.
Make sure the RADIUS server is correctly configured to provide authentication and accounting functions.
Configuring the switch
1. Configure the RADIUS authentication server:
a. Select Authentication > RADIUS from the navigation tree.
The RADIUS server configuration page appears, as shown in Figure 396.
b. Selec
t Authentication Server as the server type, enter the IP address 192.168.0.112 and port
number 1812, select active from the Primary Server Status list, and click Apply.
Figure 396 Configuring the RADIUS authentication server
2. Configure a RADIUS accounting server:

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
