HP 1910 User Manual

420

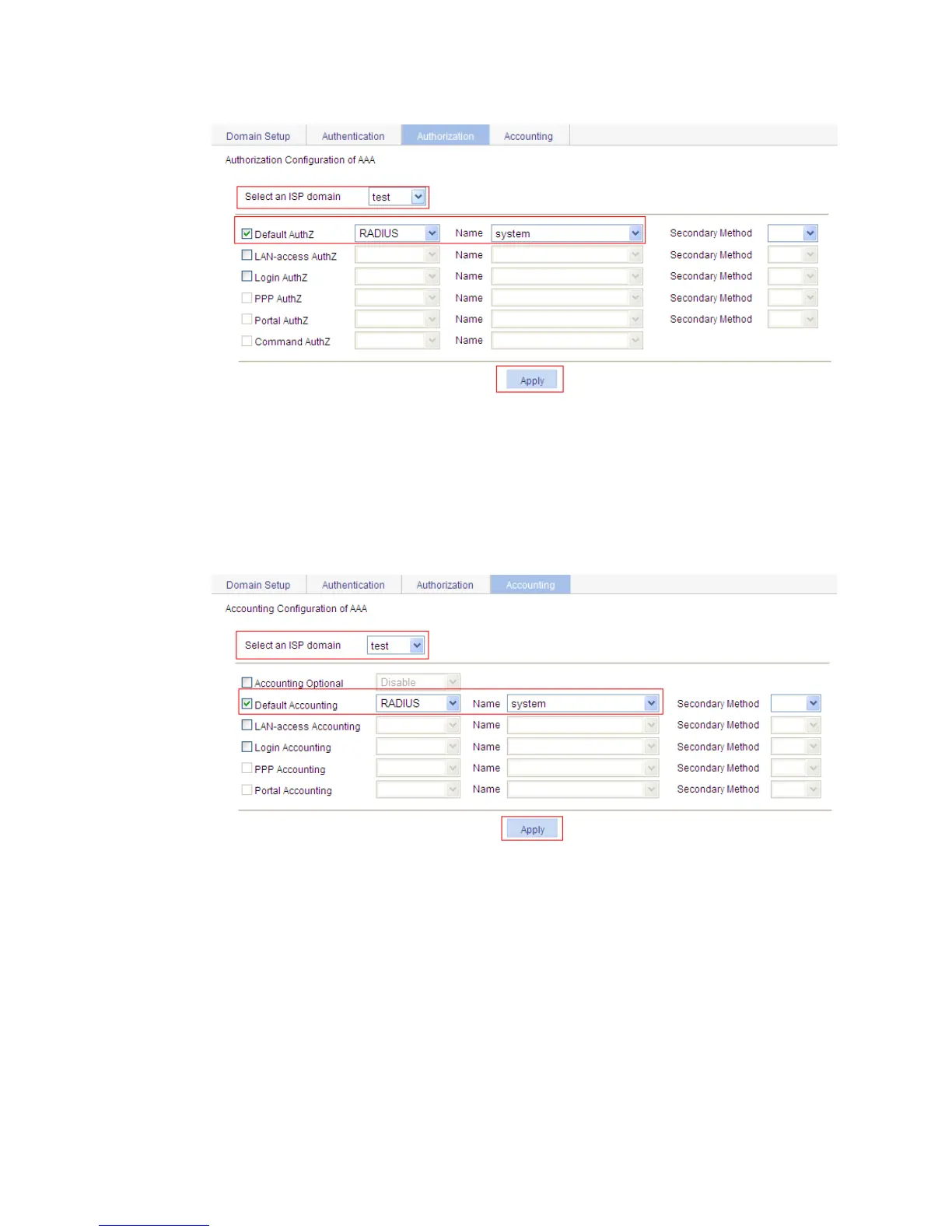

Figure 401 Configuring the authorization method for the ISP domain
g. On the Accounting tab, select the ISP domain test, select the Default Accounting box, select
RADIUS from Default Accounting list, select system from the Name list to use it as the
accounting scheme, and click Apply.
The configuration progress dialog box appears.
h. After the configuration process is complete, click Close.
Figure 402 Configuring the accounting method for the ISP domain
5. Configure Layer 3 portal authentication:
a. From the navigation tree select Authentication > Portal.
The portal server configuration page appears.
b. In the Portal Application: Layer 3 Interfaces area, click Add.
c. On the page that appears, select the interface Vlan-interface100, select Add for Portal Server
to add a portal server, select the Direct portal authentication mode, enter the portal server
name newpt, the portal server IP address 192.168.0.111, the shared key portal, the port
number 50100, and the redirection URL http://192.168.0.111:8080/portal for portal
authentication, and click Apply.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
