HP 1910 User Manual

423

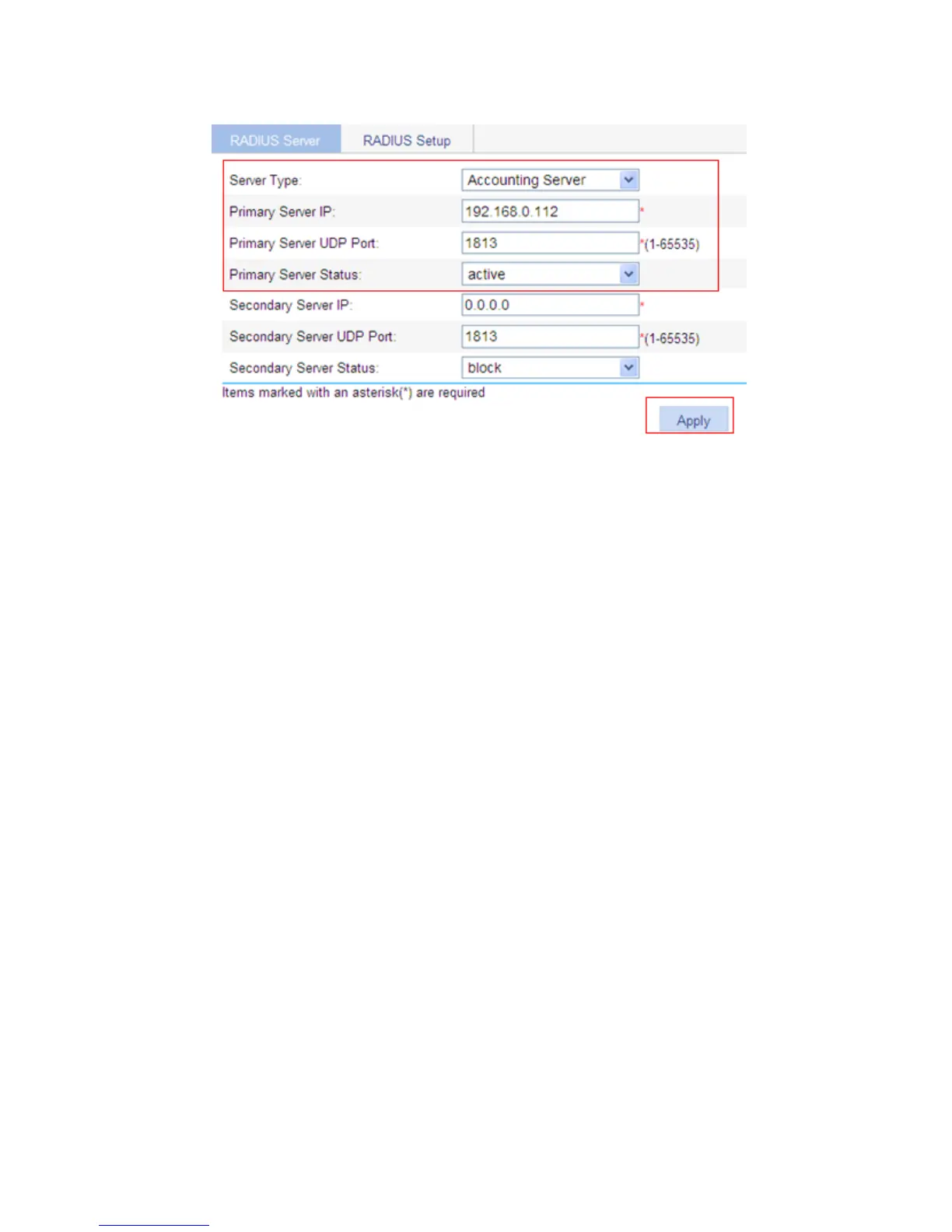

Figure 406 Configuring a RADIUS accounting server
3. Configure RADIUS scheme system for exchanges between the device and the RADIUS servers:
a. Click the RADIUS Setup tab.
b. Select extended as the server type.
c. Select the Authentication Server Shared Key box, enter the key expert, and then enter the key
again in the Confirm Authentication Shared Key field.
d. Select the Accounting Server Shared Key box, enter the key expert, and then enter the key
again in the Confirm Accounting Shared Key field.
e. Select without-domain as the username format.
f. Click Apply.

HP 1910 Specifications

General

Model	HP 1910
Category	Switch
Port Type	10/100/1000BASE-T
Layer	Layer 2
PoE Support	No
MAC Address Table Size	8K entries
VLAN Support	Yes
Management	Web-based GUI
Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Jumbo Frame Support	Yes
Ports	24
