d. Select 2, 3, and 4 on the chassis front panel. The numbers represent ports GigabitEthernet
1/0/2, GigabitEthernet 1/0/3, and GigabitEthernet 1/0/4, respectively.

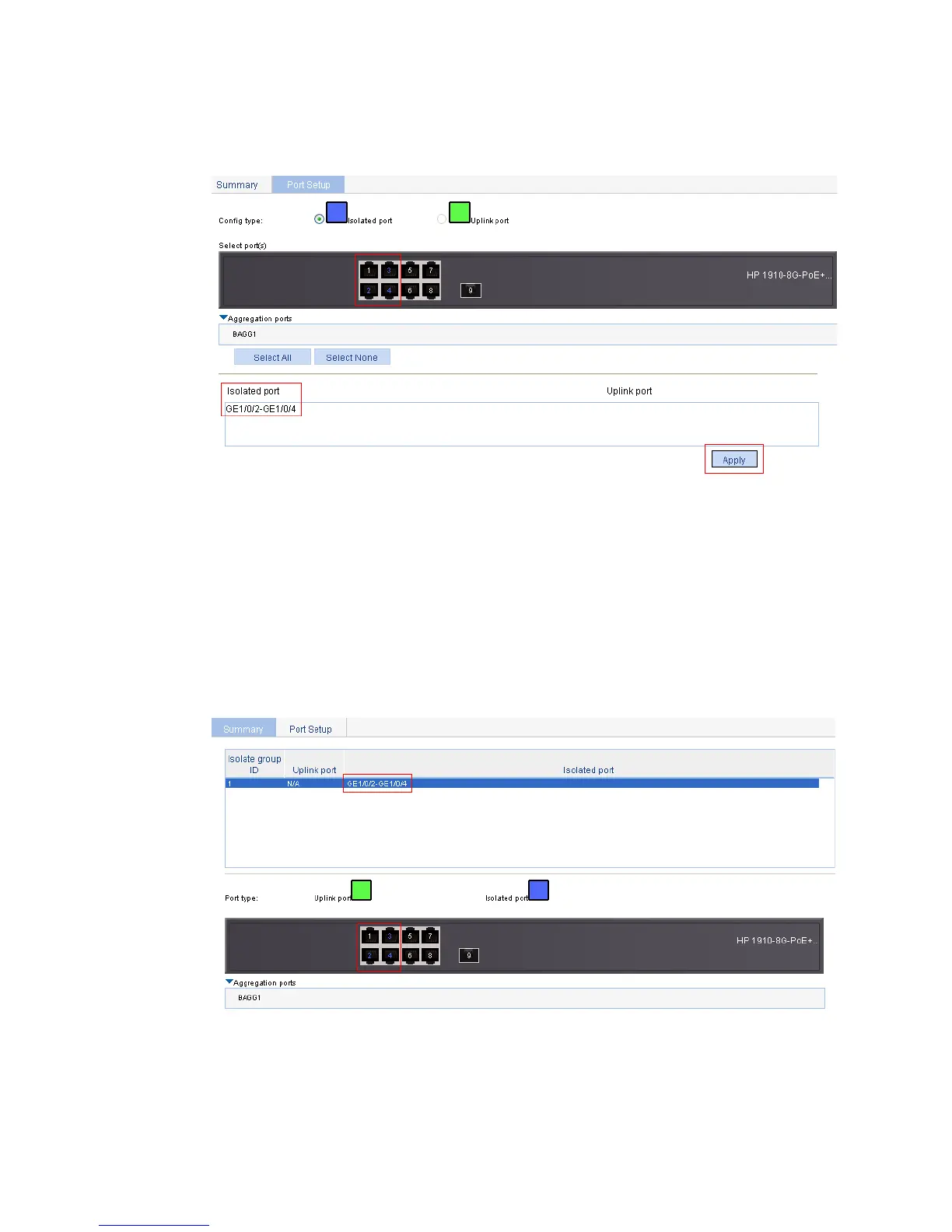

Figure 460 Configuring isolated ports for the isolation group
a. Click Apply.
A configuration progress dialog box appears.
b. After the configuration process is complete, click Close.
Viewing information about the isolation group
1. Click Summary. The page shown in Figure 461 appears.
2. Display port isolation group 1, which contains isolated ports GigabitEthernet 1/0/2,
GigabitEthernet 1/0/3, and GigabitEthernet 1/0/4.
Figure 461 Displaying information about port isolation group 1
