HP 1910 - Page 536

523

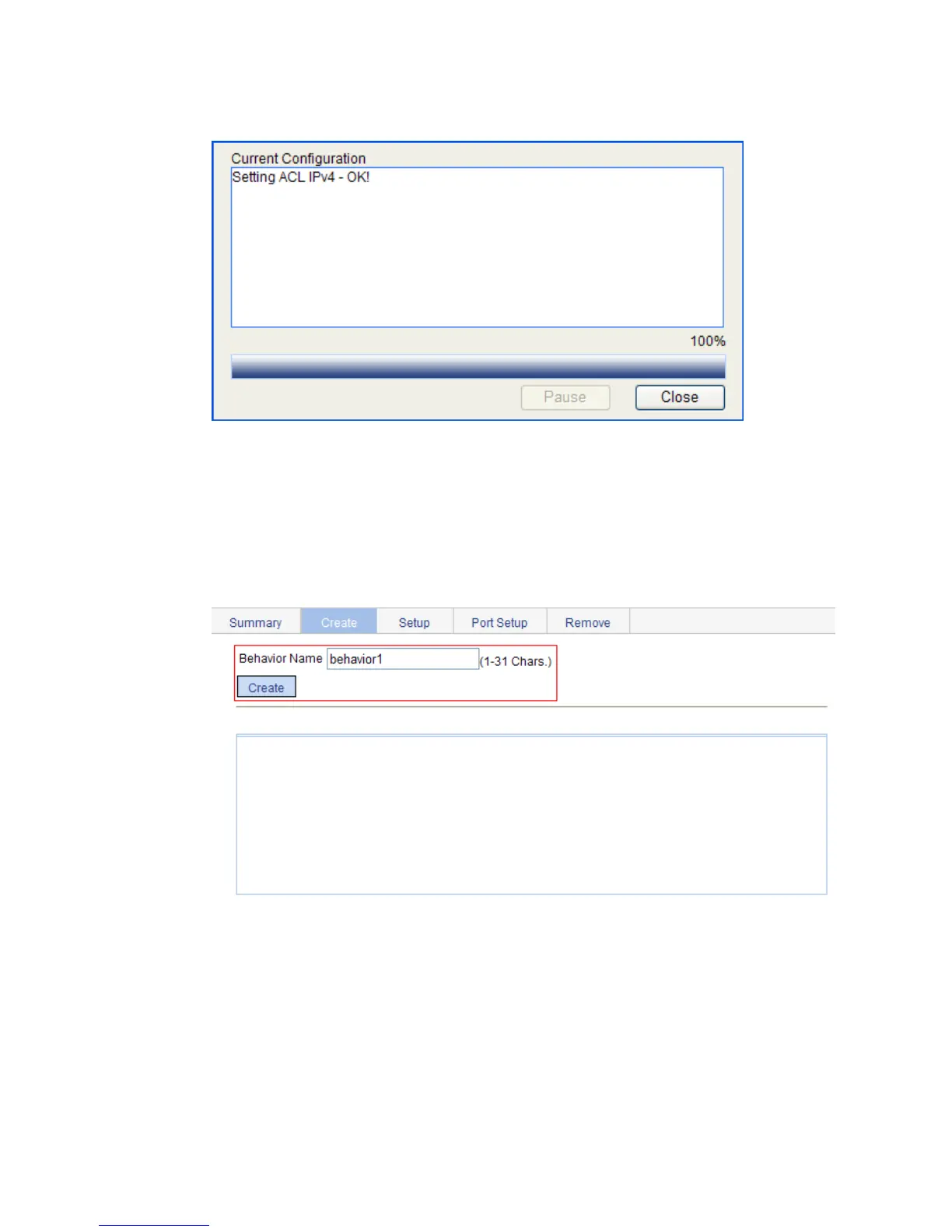

Figure 503 Configuration progress dialog box
6. Add a traffic behavior:
a. Select QoS > Behavior from the navigation tree.
b. Click the Create tab.
c. Enter the behavior name behavior1.
d. Click Create.
Figure 504 Adding a traffic behavior
7. Configure actions for the traffic behavior:
a. Click the Setup tab.
b. Select behavior1 from the list.
c. Select the Filter box, and then select Deny from the following list.
d. Click Apply.
A progress dialog box appears.
e. Click Close when the progress dialog box prompts that the configuration succeeds.
