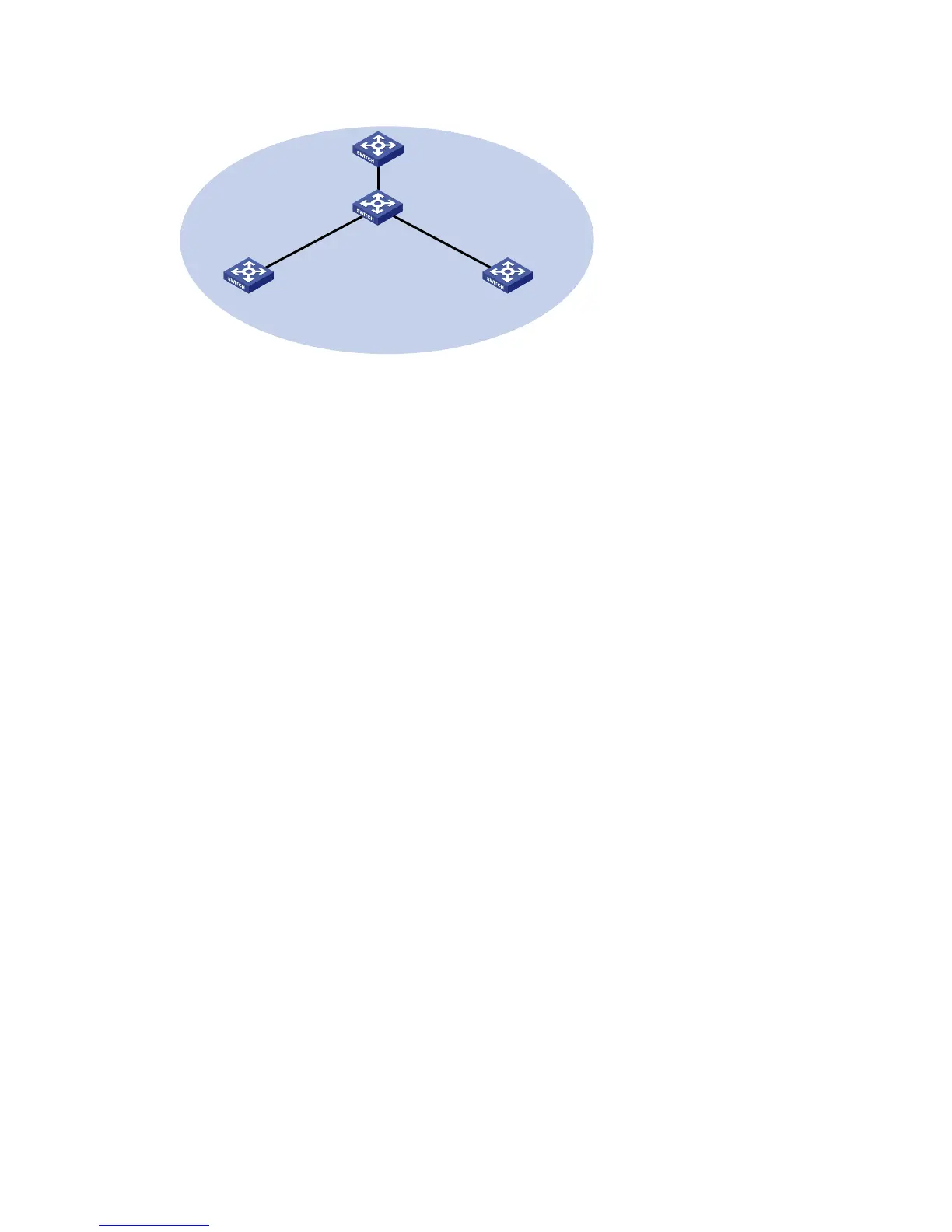

Figure 33 Network diagram
Configuration procedure
1. Configure global stack parameters on Switch A:
a. Select Stack from the navigation tree of Switch A to enter the page of the Setup tab, and then
perform the following configurations, as shown in Figure 34.
b. Typ
e 192.168.1.1 in the field of Private Net IP.
c. Type 255.255.255.0 in the field of Mask.
d. Select Enable from the Build Stack list.
e. Click Apply.
Switch B:
Slave device
Slave device
Switch C: Switch D: Slave device
Stack
Eth1/0/1
Switch
A
:
Master device
Eth1/0/1
Eth1/0/1
Eth1/0/1
Eth1/0/2
Eth1/0/3
