49

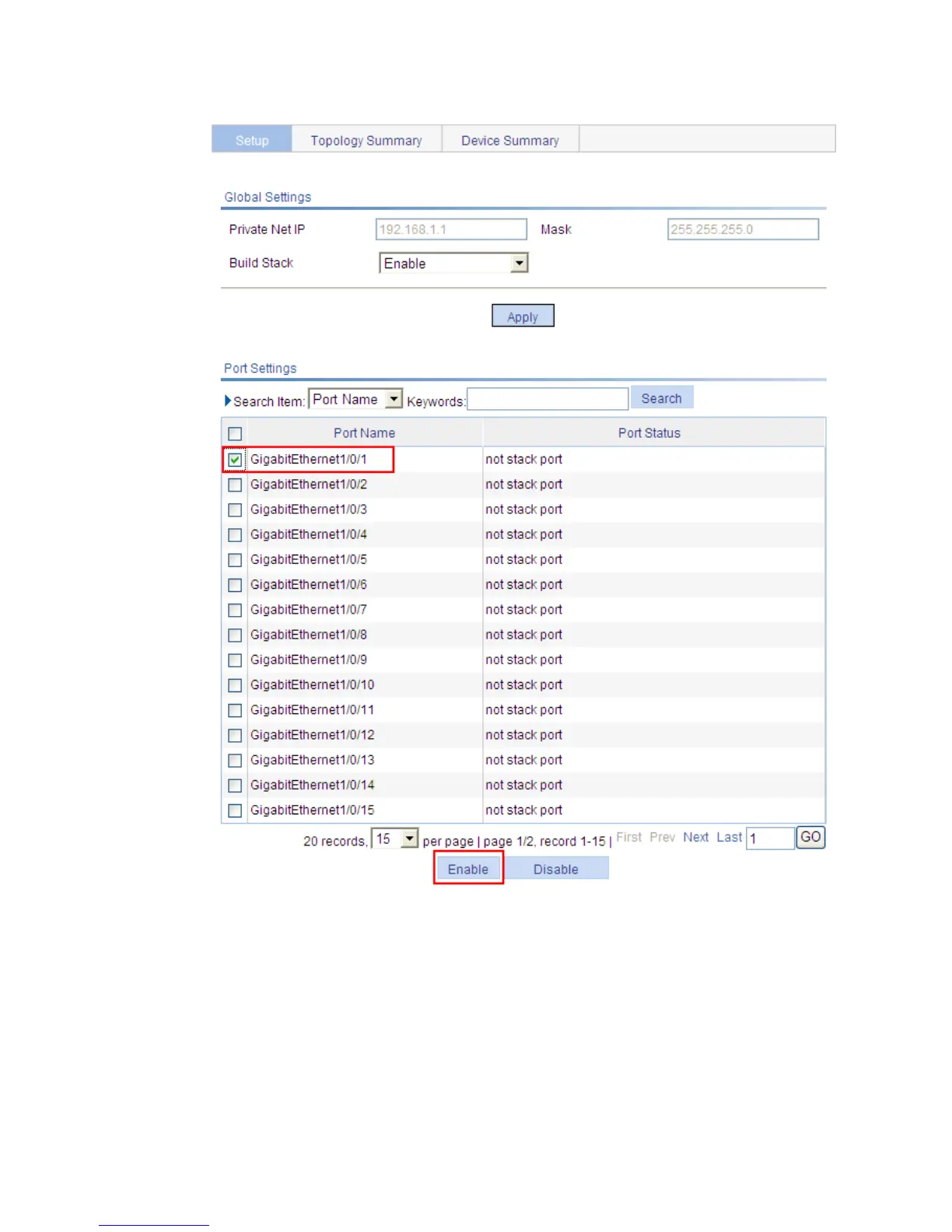

Figure 35 Configuring a stack port on Switch A
3. On Switch B, configure GigabitEthernet 1/0/2 (connected to Switch A), GigabitEthernet 1/0/1
(connected to Switch C), and GigabitEthernet 1/0/3 (connected to Switch D) as stack ports.
a. Select Stack from the navigation tree of Switch B.
b. On the Setup tab, select GigabitEthernet1/0/1, GigabitEthernet1/0/2, and
GigabitEthernet1/0/3 in the Port Settings area.
c. Click Enable.
