3. On switch A, configure a classifier-based mirroring policy to select inbound TCP traffic destined to the server at
10.10.30.153, and apply the policy to the interfaces of VLAN 10 (as described in About selecting inbound
traffic using advanced classifier-based mirroring on page 435.)

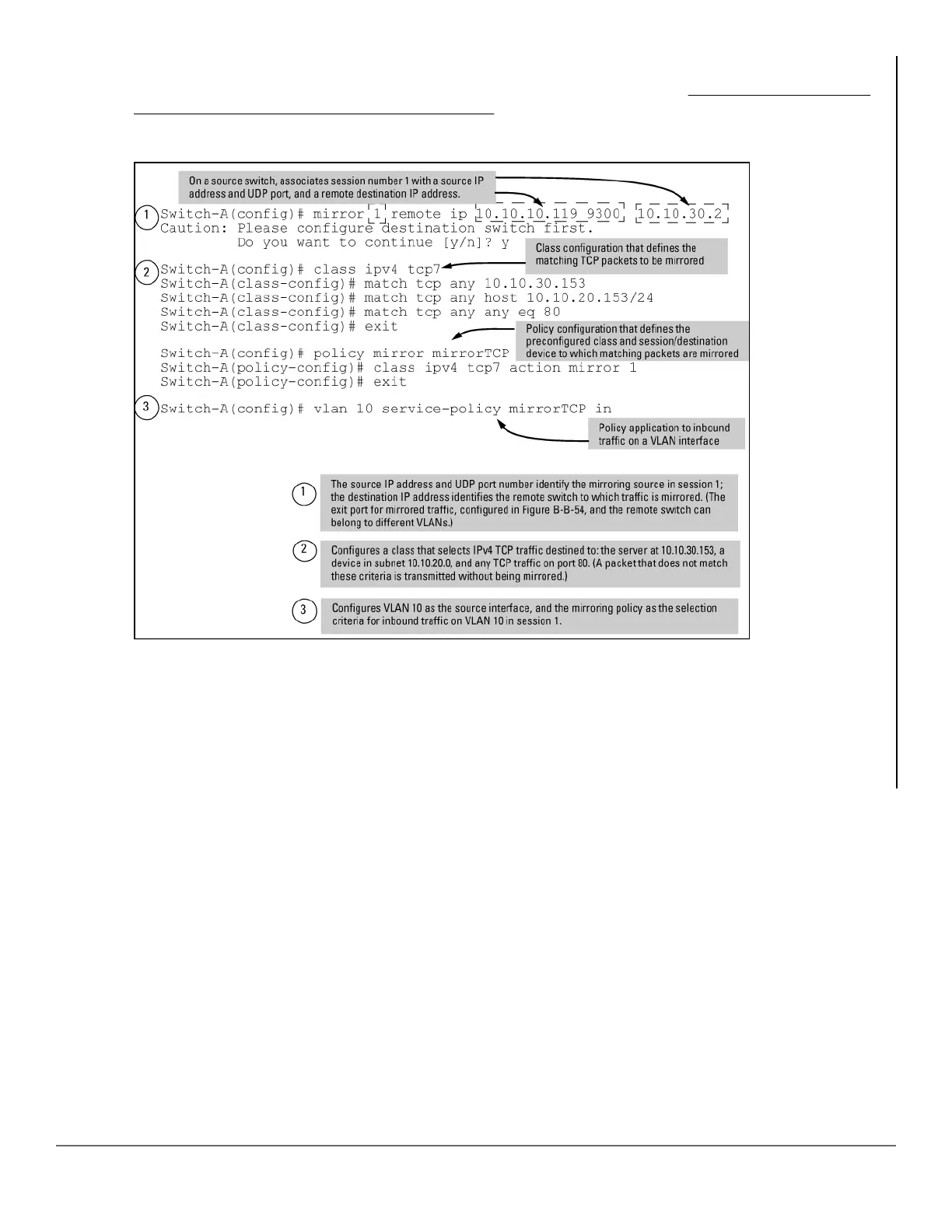

Figure 74: Configuring a classifier-based policy on source switch A
4. On source switch B, repeat steps 2 and 3:
a. Configure an association between the remote mirroring endpoint on switch C and a mirroring session on
switch B.
b. Configure a classifier-based mirroring policy to select inbound TCP traffic destined to the server at
10.10.30.153, and apply the policy to a VLAN interface for VLAN 20.
Chapter 12 Monitoring and Analyzing Switch Operation 441
