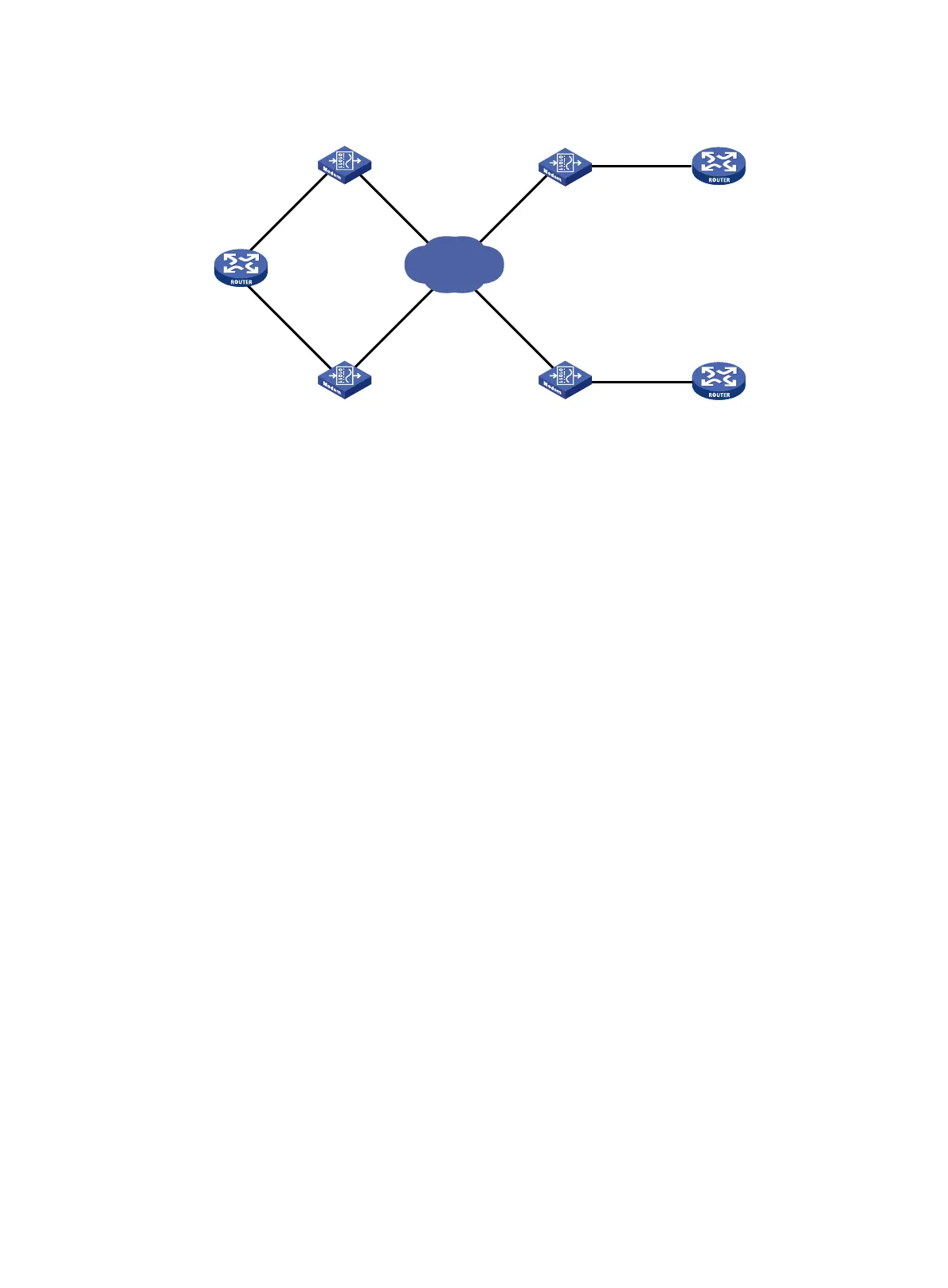

Figure 58 Network diagram

Configuration procedure

1. Configure Router A:

# Create dialer group 1 and configure a dial rule for it.

<RouterA> system-view

[RouterA] dialer-group 1 rule ip permit

# Create local users userb and userc for authenticating Router B and Router C, and configure the

service type as PPP for them.

[RouterA] local-user userb class network

[RouterA-luser-network-userb] password simple userb

[RouterA-luser-network-userb] service-type ppp

[RouterA-luser-network-userb] quit

[RouterA] local-user userc class network

[RouterA-luser-network-userc] password simple userc

[RouterA-luser-network-userc] service-type ppp

[RouterA-luser-network-userc] quit

# Configure an IP address for interface Dialer 0.

[RouterA] interface dialer 0

[RouterA-Dialer0] ip address 100.1.1.1 255.255.255.0

# Enable bundle DDR on the interface.

[RouterA-Dialer0] dialer bundle enable

# Specify the host name of the remote router allowed to call in.

[RouterA-Dialer0] dialer peer-name userb

# Associate the interface with dialer group 1.

[RouterA-Dialer0] dialer-group 1

# Configure PAP authentication on the interface.

[RouterA-Dialer0] ppp authentication-mode pap

[RouterA-Dialer0] ppp pap local-user usera password simple usera

# Configure the dial string for calling Router B.

[RouterA-Dialer0] dialer number 8810052

[RouterA-Dialer0] quit

PSTN

Modem

Router B

Router C

Router A

Modem

Ser2/1/0

Ser2/1/1

Ser2/1/0

Dialer 0

100.1.1.1/24

8810048

8810049

8810052

8810063

Dialer 0

100.1.1.2/24

Dialer 0

122.1.1.2/24

Dialer 1

122.1.1.1/24
