205

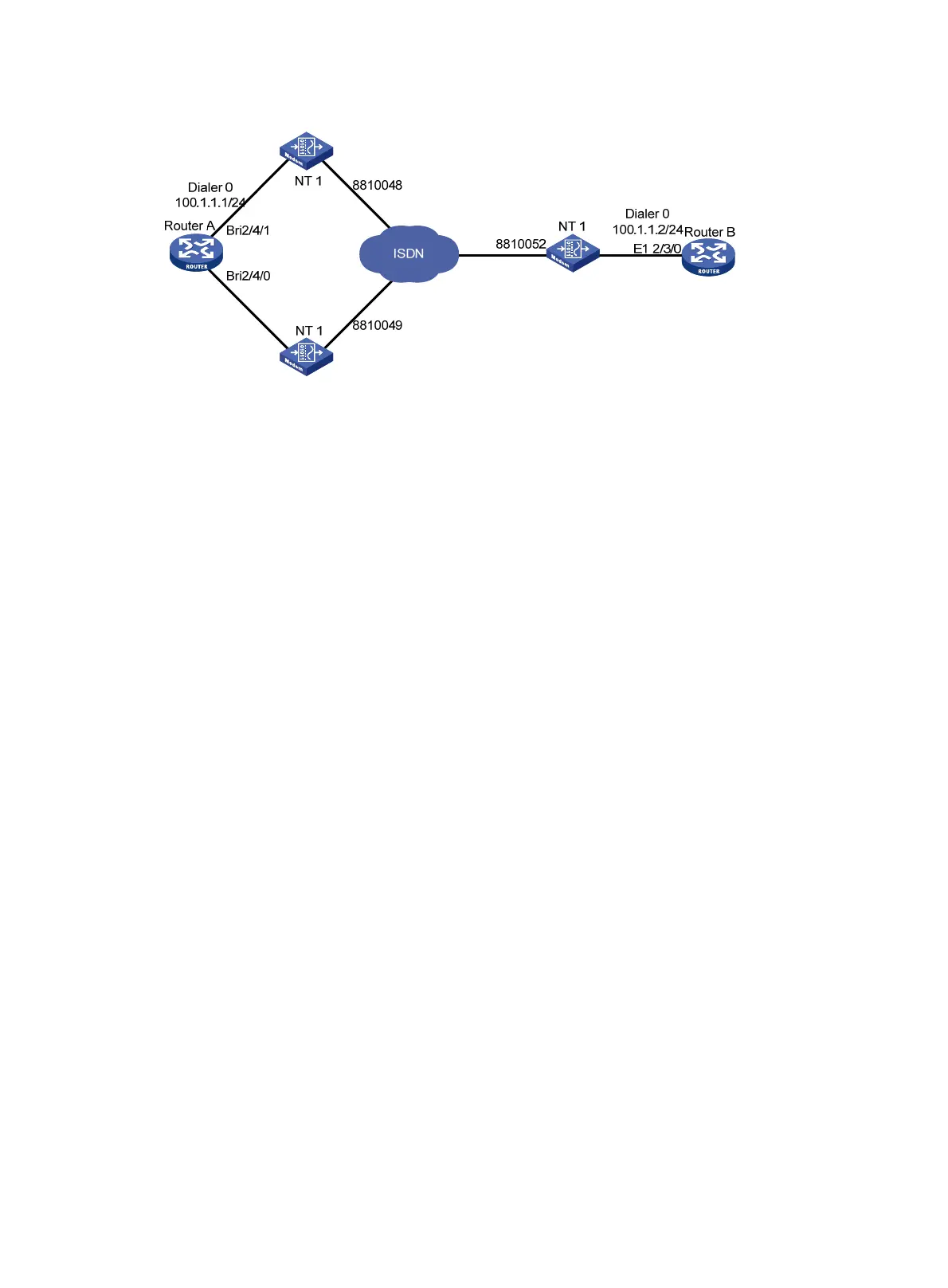

Figure 61 Network diagram

Configuration procedure

1. Configure Router A:

# Create dialer group 1 and configure a dial rule for it.

<RouterA> system-view

[RouterA] dialer-group 1 rule ip permit

# Create a local user userb for authenticating Router B, and configure the service type as PPP.

[RouterA] local-user userb class network

[RouterA-luser-network-userb] password simple userb

[RouterA-luser-network-userb] service-type ppp

[RouterA-luser-network-userb] quit

# Set the traffic statistics collection interval to 3 seconds.

[RouterA] dialer flow-interval 3

# Configure an IP address for interface Dialer 0, enable bundle DDR, and configure MP.

[RouterA] interface dialer 0

[RouterA-Dialer0] ip address 100.1.1.1 255.255.255.0

[RouterA-Dialer0] dialer bundle enable

[RouterA-Dialer0] ppp mp

[RouterA-Dialer0] dialer threshold 50

# Specify the host name of the remote router allowed to call in.

[RouterA-Dialer0] dialer peer-name userb

# Associate the interface with dialer group 1.

[RouterA-Dialer0] dialer-group 1

# Configure PAP authentication on the interface.

[RouterA-Dialer0] ppp authentication-mode pap

[RouterA-Dialer0] ppp pap local-user usera password simple usera

# Configure the dial string for calling Router B.

[RouterA-Dialer0] dialer number 8810052

[RouterA-Dialer0] quit

# Assign BRI 2/4/1 to dialer bundle 0.

[RouterA] interface bri 1/1

[RouterA-Bri2/4/1] dialer bundle-member 0

# Enable MP for the interface.
