HPE Apollo 2000 User Manual

Hardware options installation 103
o

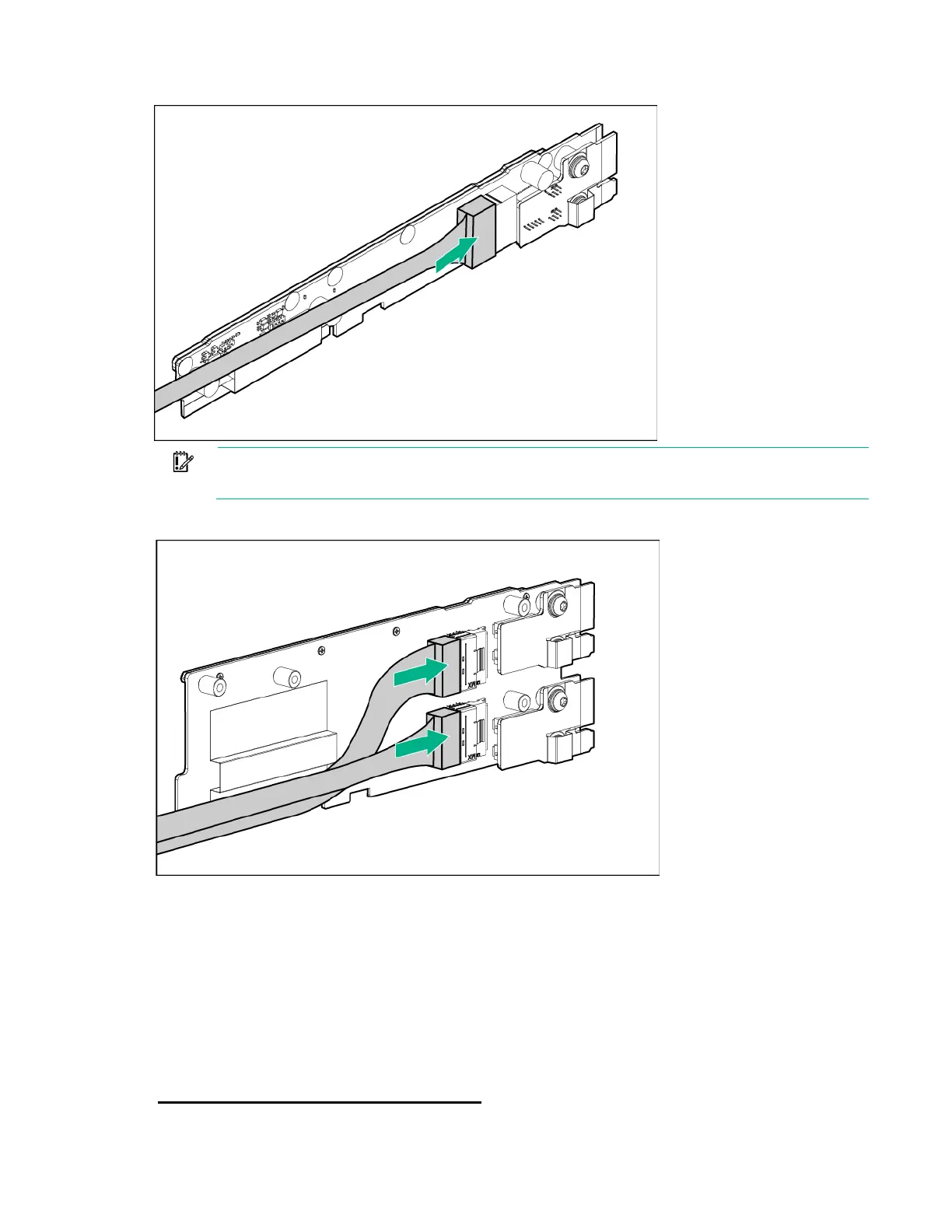

1U bayonet board
IMPORTANT: If connecting a SATA or Mini-SAS cable to the 2U bayonet board, route the
cable under the padding before installing the 2U bayonet board bracket.
o 2U bayonet board
17. Install the bayonet board bracket and bayonet board assembly ("Install the bayonet board assembly"
on page 45).
18. Route and secure the cable under the thin plastic cover.
19. Install any removed PCI riser cage assemblies. ("PCI riser cage assembly options" on page 84)
20. Install the node into the chassis ("Installing a node into the chassis" on page 60).
21. Connect all peripheral cables to the nodes.
22. Power up the node ("Power up the nodes" on page 32).
For more information about the integrated storage controller and its features, select the relevant user
documentation on the Hewlett Packard Enterprise website
(http://www.hpe.com/info/smartstorage/docs).

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
