HPE Apollo 2000 User Manual

Operations 37
11.

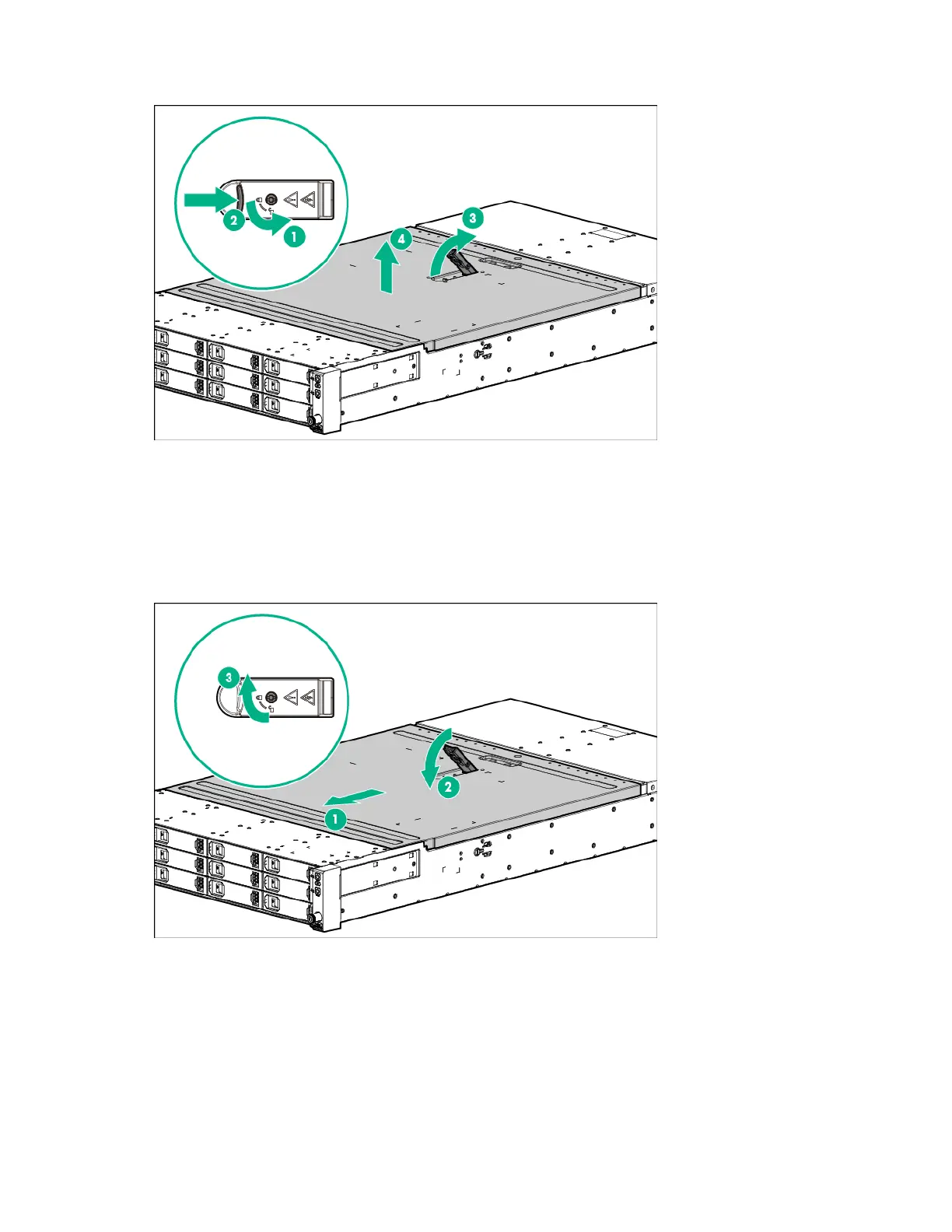

Lift and remove the access panel.
Install the chassis access panel
1. Install the chassis access panel.
a. Place the access panel and align the pin on the chassis, and slide it towards the front of the
server.
b. Lock the access panel latch using the T-15 Torx screwdriver.
2. Install the chassis into the rack ("Installing the chassis into the rack" on page 58).
3. Install all nodes, drives and power supplies ("Chassis component installation" on page 60).
4. If removed, install the security bezel ("Security bezel option" on page 67).
5. If removed, install the RCM module ("RCM module" on page 70).
6. Connect all peripheral cables to the nodes and chassis.
7. Power up the nodes (on page 32).

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
