HPE Apollo 2000 User Manual

Cabling 142

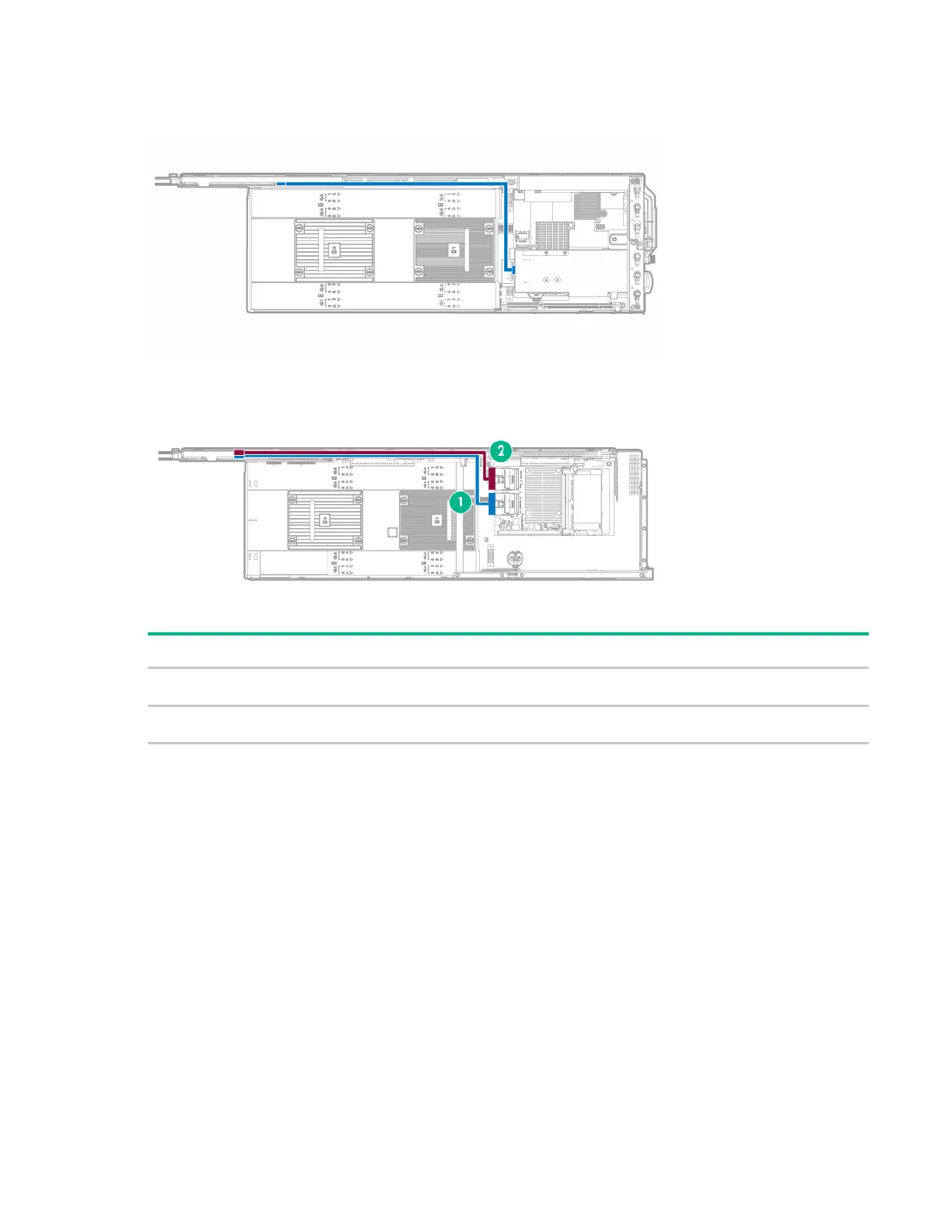

Mini-SAS P440/P840 cabling
HPE P440 Smart Array controller installed in a 1U node
HPE P840 Smart Array controller installed in FlexibleLOM 2U node riser cage assembly
Item Description Connection
1
Mini-SAS P440/P840 cable
Port 1 on P840 Smart Array controller to Port 1 on the bayonet
board
2
Mini-SAS P440/P840 cable
Port 2 on P840 Smart Array controller to Port 2 on the bayonet
board
FBWC module cabling
The FBWC solution is a separately purchased option. This node only supports FBWC module installation
when a Smart Array P-Series controller is installed.
Depending on the controller option installed, the actual storage controller connectors might look different
from what is shown in this section.

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
