HPE Apollo 2000

Component identification 9

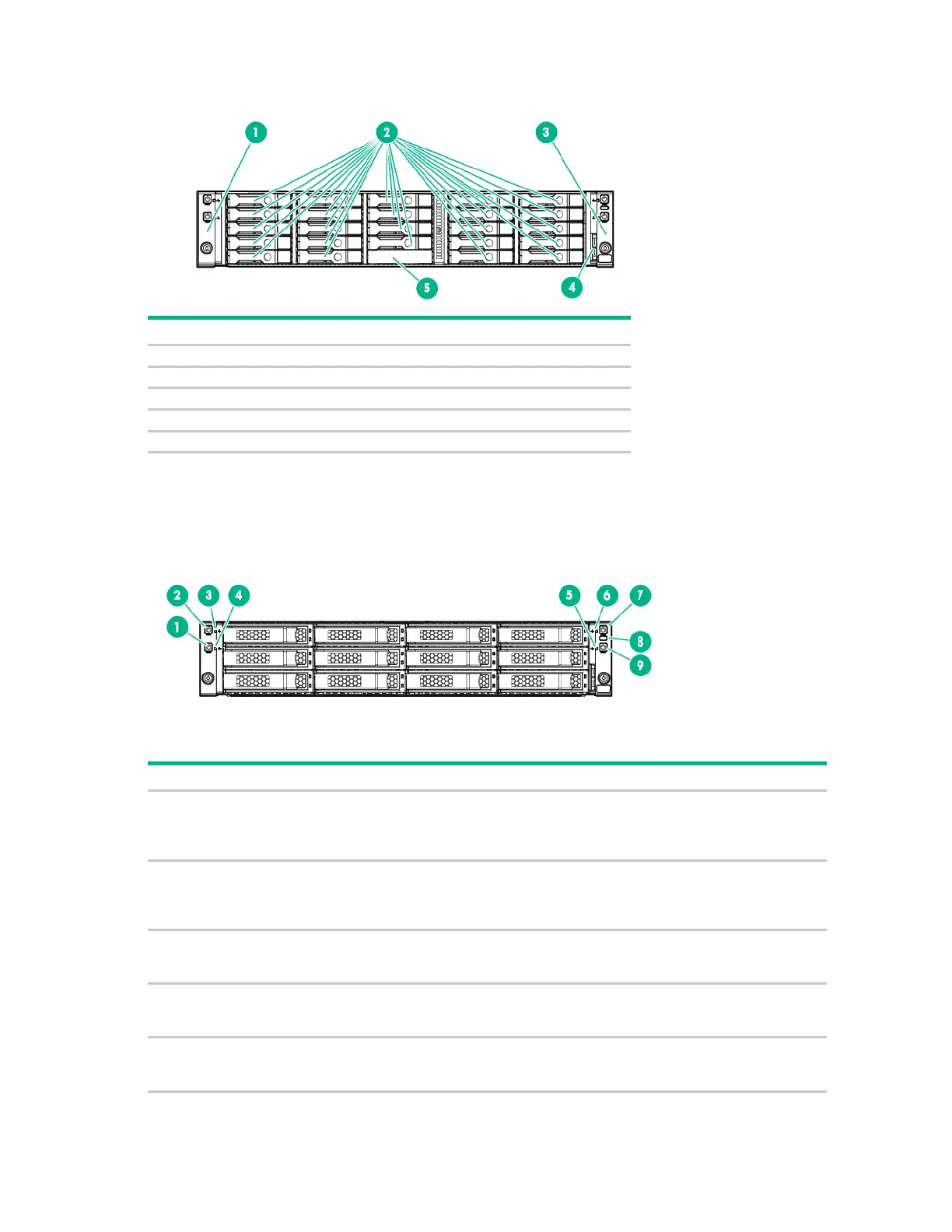

• HPE Apollo r2800 Chassis
Item
Description
1
Left bezel ear
2
SFF HPE SmartDrives
3
Right bezel ear
4
Chassis serial label pull tab
5
Non-removable bezel blank
Chassis front panel LEDs and buttons
Item Description Status
1
Power On/Standby button and
system power LED (Node 1)
1
Solid green = System on
Flashing green = Performing power on sequence
Solid amber = System in standby
Off = No power present
2
2
Power On/Standby button and
system power LED (Node 2)
1
Solid green = System on
Flashing green = Performing power on sequence
Solid amber = System in standby
Off = No power present
2
3
Health LED (Node 2)
1
Solid green = Normal
Flashing amber = System degraded
Flashing red = System critical
3
4
Health LED (Node 1)
1
Solid green = Normal
Flashing amber = System degraded
Flashing red = System critical
3
5
Health LED (Node 3)
1
Solid green = Normal
Flashing amber = System degraded
Flashing red = System critical
3
