HPE Apollo 2000 User Manual

Component identification 15
2
Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the front I/O cable is disconnected.
3
If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health
status.
Power fault LEDs
The following table provides a list of power fault LEDs, and the subsystems that are affected. Not all
power faults are used by all servers.
Subsystem
LED behavior
System board
1 flash
Processor
2 flashes
Memory
3 flashes
Riser board PCIe slots
4 flashes
FlexibleLOM
5 flashes
Removable HPE Flexible Smart Array
controller/Smart SAS HBA controller
6 flashes
System board PCIe slots
7 flashes
Power backplane or storage backplane
8 flashes
Power supply
9 flashes

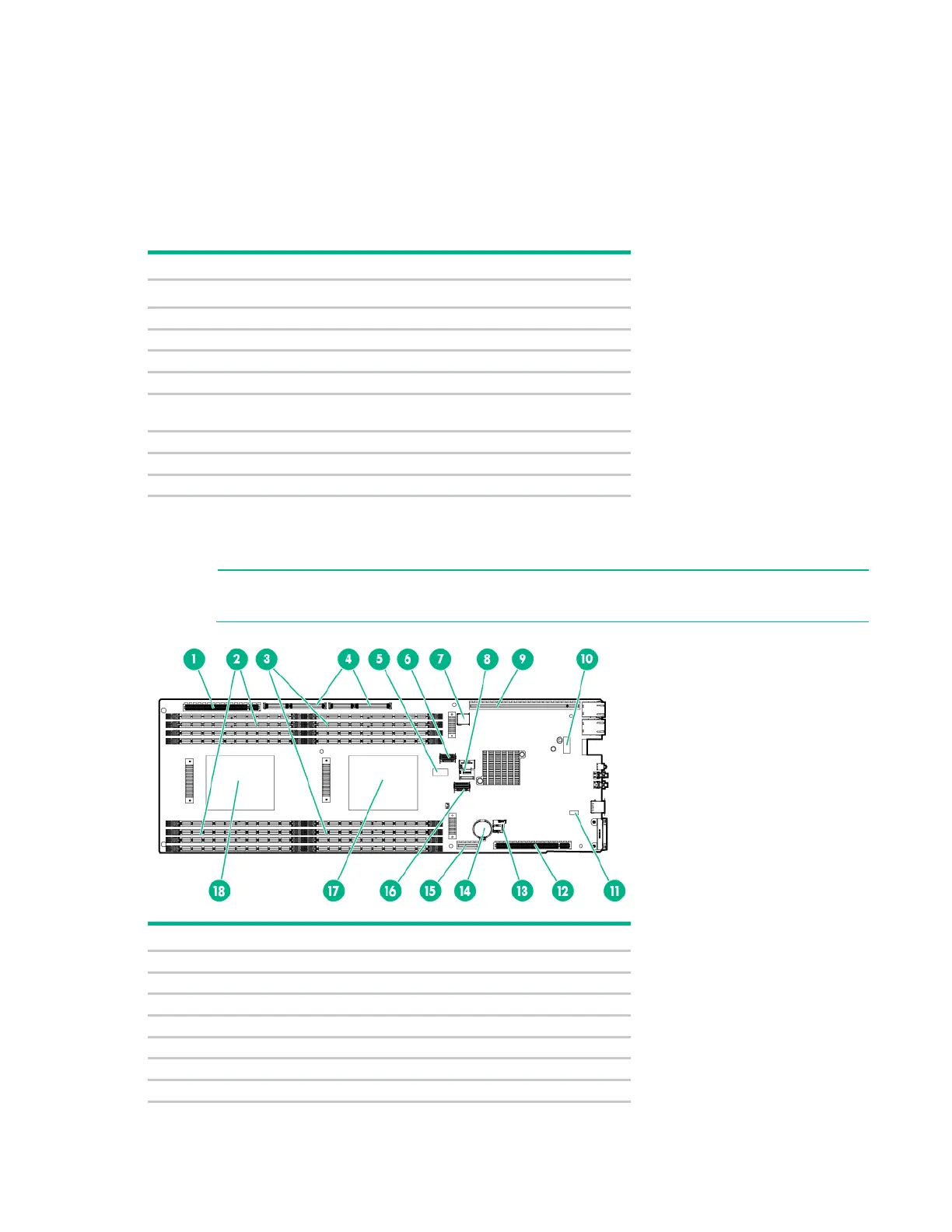

System board components
NOTE: HPE ProLiant XL170r and XL190r Gen9 Server Nodes share the same system board.
Item
Description
1
Bayonet board slot
2
DIMMs for processor 2
3
DIMMs for processor 1
4
PCIe x40 riser board connector*
5
System maintenance switch
6
Mini-SAS connector 1 (SATA x4)
7
Internal USB 3.0 connector

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
