Component identification  26
3
iLO link LED    Green = Linked to network
Off = No network connection
4
iLO activity LED    Green or flashing green = Network activity
Off = No network activity

For more information, see "RCM module (on page 70)."

PCIe riser board slot definitions

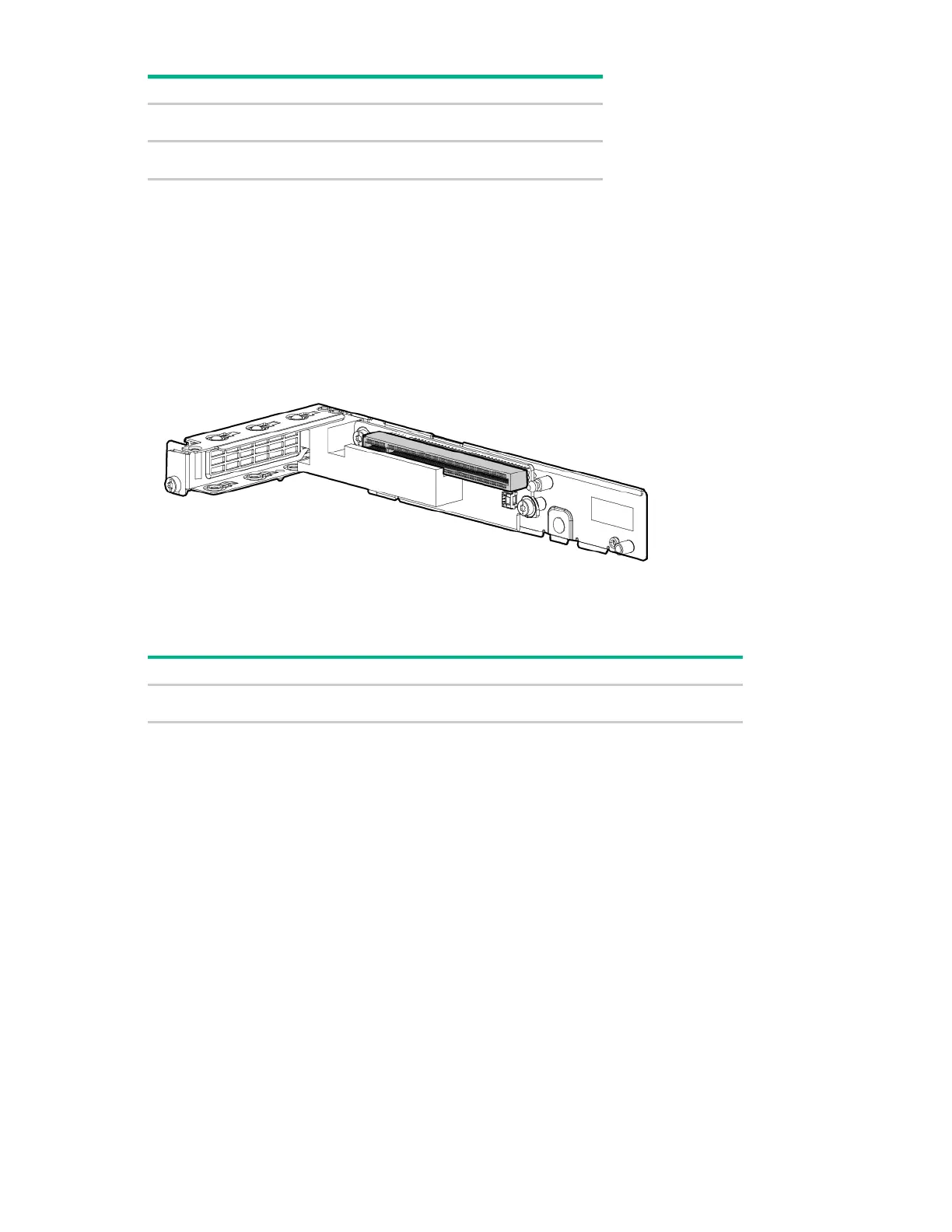

•  Single-slot left PCI riser cage assembly (PN 798178-B21)


Form factor  Slot number  Slot description
Storage controller or
low-profile PCIe NIC card
PCIe3 x16 (16, 8, 4, 1) for
Processor 1

For more information on installing a storage controller, see "Controller options (on page 96)."
