Hardware options installation 109
o

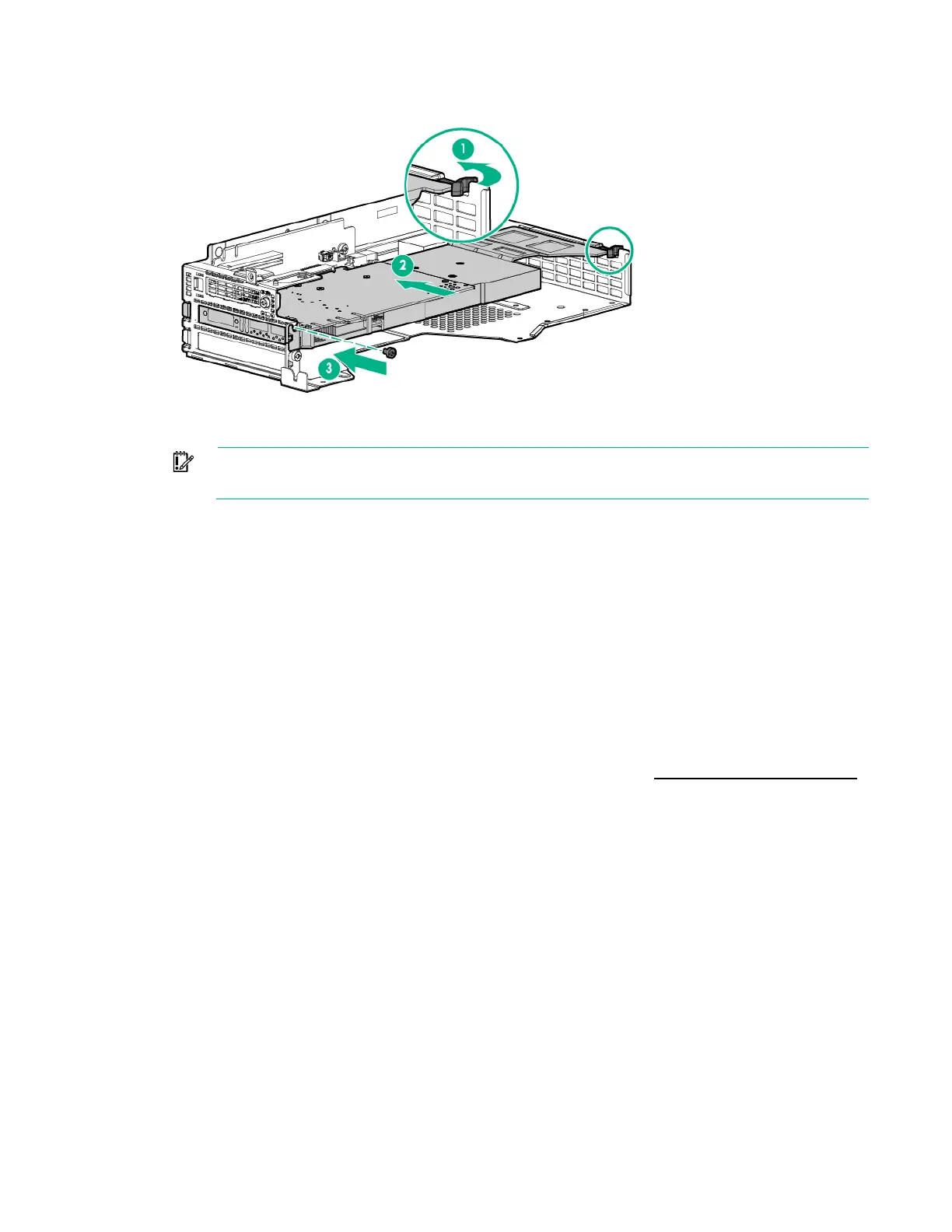

NVIDIA Quadro K4200 GPU
IMPORTANT:
If installing an Intel Xeon Phi Coprocessor 5110P, connect the power cable to
the 2x4 connector only. Do not connect the power cable to the 2x3 connector.
12. Connect the power cable to the accelerator. For more information, see "Accelerator cabling (on page
144)."
13. Install the FlexibleLOM 2U node riser cage assembly ("FlexibleLOM 2U node riser cage assembly
option" on page 91).
14. Connect the power cable to the bayonet board.
15. Install the node into the chassis ("Installing a node into the chassis" on page 60).
16. Connect all peripheral cables to the nodes.
17. Power up the nodes (on page 32).
Installing two accelerators in a three-slot riser cage assembly
For more information about product features, specifications, options, configurations, and compatibility,
see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
To install the component:
1. Power down the node (on page 32).
2. Disconnect all peripheral cables from the node.
3. Remove the node from the chassis (on page 32).
4. Place the node on a flat, level surface.
5. Remove the three-slot riser cage assembly ("Three-slot riser cage assemblies" on page 52).
6. Set the accelerator power setting switch to the correct settings based on the power consumption of
the processor ("Accelerator power setting switch" on page 104).
For more information, see the documentation that ships with the accelerator option.
