NMI functionality
An NMI crash dump creates a crash dump log before resetting a system which is not responding.
Crash dump log analysis is an essential part of diagnosing reliability problems, such as failures of
operating systems, device drivers, and applications. Many crashes freeze a system, and the only
available action for administrators is to restart the system. Resetting the system erases any information
which could support problem analysis, but the NMI feature preserves that information by performing a
memory dump before a system reset.
To force the system to invoke the NMI handler and generate a crash dump log, do one of the following:
• Use the iLO Virtual NMI feature.
• Short the NMI header ("System board components" on page 15).
For more information, see the Hewlett Packard Enterprise website
(http://www.hpe.com/support/NMI-CrashDump).
DIMM slot locations

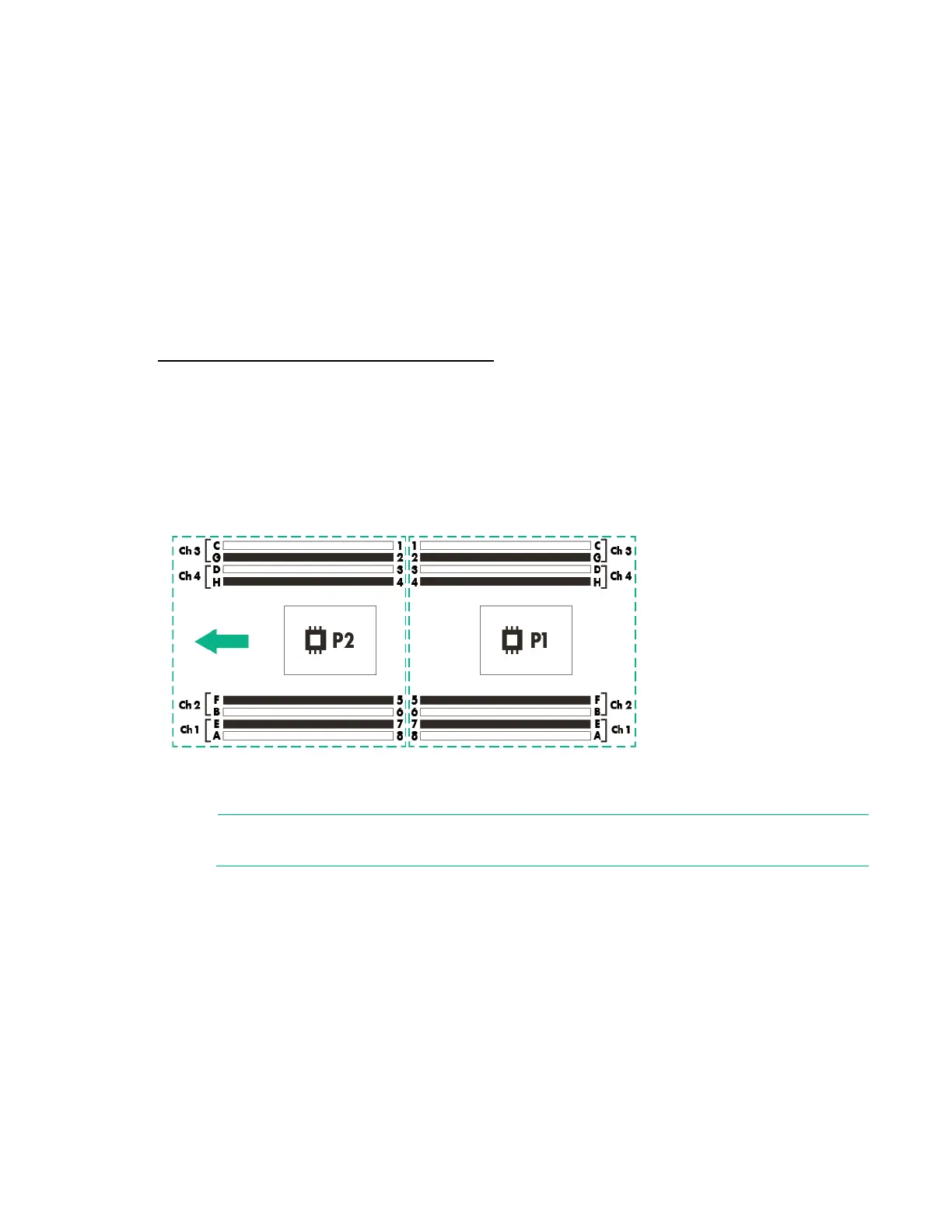

DIMM slots are numbered sequentially (1 through 8) for each processor. The supported AMP modes use
the letter assignments for population guidelines.
NOTE: The arrow indicates the front of the chassis.

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
