Cabling 140
Node cabling
SATA and mini-SAS cabling

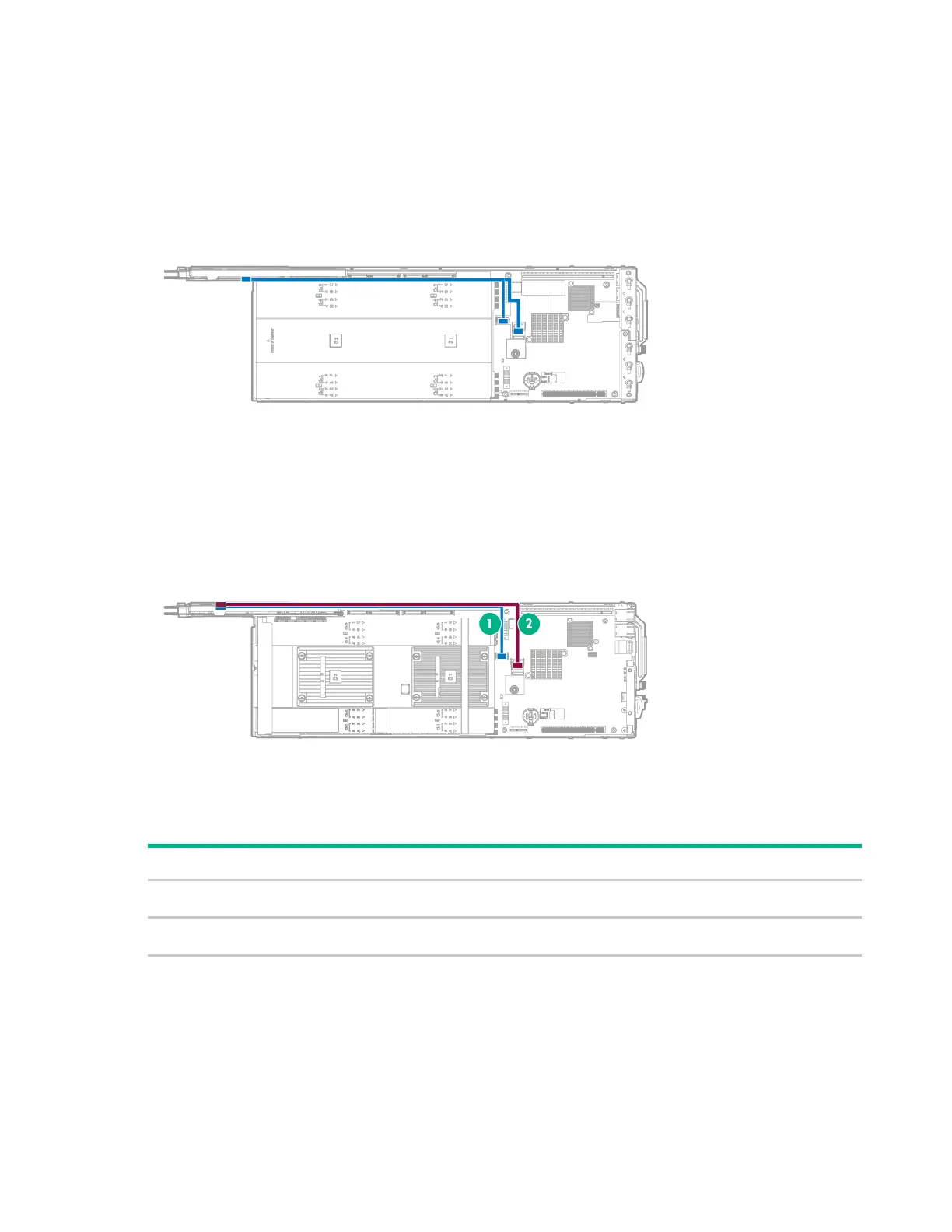

B140i 1U node SATA cabling
B140i 2U node SATA cabling
Item Description Connection
1
SATA 1 cable
Mini-SAS connector 1 (SATA x4) on the system board to Port 1 on the bayonet
board
2
SATA 2 cable
Mini-SAS connector 2 (SATA x4) on the system board to Port 2 on the bayonet
