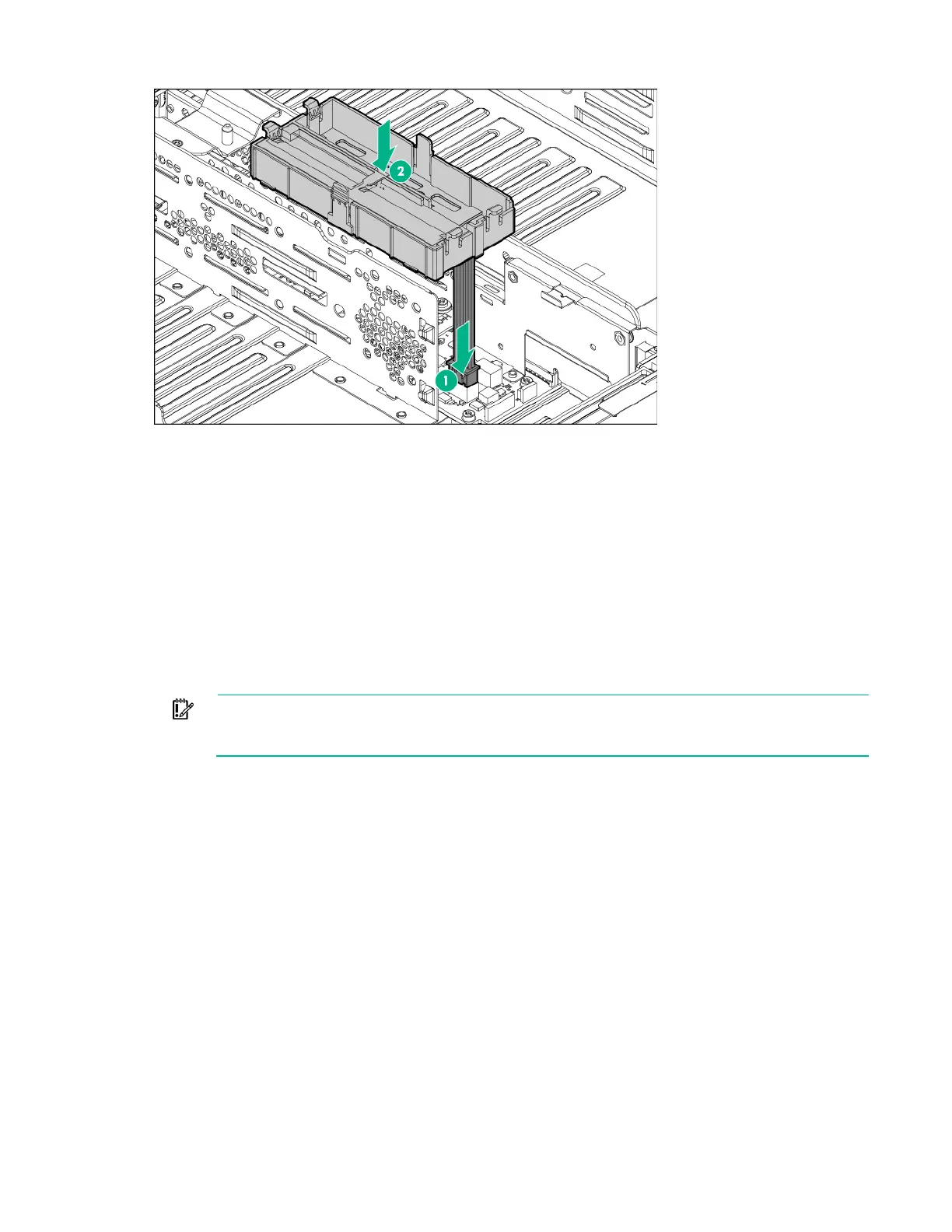

Hardware options installation 99
13. Install the access panel ("Install the chassis access panel" on page 37).
14. Install the chassis into the rack ("Installing the chassis into the rack" on page 58).
15. Install the storage controller and FBWC module options in the node ("Installing the storage controller
and FBWC module options" on page 99).
16. Install all nodes, drives and power supplies ("Chassis component installation" on page 60).
17. If removed, install the security bezel ("Security bezel option" on page 67).
18. If removed, install the RCM module ("RCM module" on page 70).
19. Connect all peripheral cables to the nodes and chassis.
20. Power up the nodes (on page 32).
Installing the storage controller and FBWC module options
IMPORTANT: If planning to install a Smart Storage Battery, install it in the chassis before
installing the storage controller and FBWC module in the node ("Installing the HPE Smart
Storage Battery" on page 97).
To install the component:
1. Power down the node (on page 32).
2. Disconnect all peripheral cables from the node.
3. Remove the node from the chassis (on page 32).
4. Place the node on a flat, level surface.
5. Remove the PCI riser cage ("Remove the PCI riser cage assembly" on page 48).
6. Identify the PCIe slot compatible with the new option, and then remove the PCI blank opposite that
slot.
7. Remove the bayonet board assembly and bayonet board bracket ("Remove the bayonet board
assembly" on page 43).
8. If you intend to use an FBWC module, install the module on the storage controller. Depending on the
controller model, the cable connector on the cache module might be facing up or down when the
module is installed on the controller board.
To Next Page
