Cabling 136

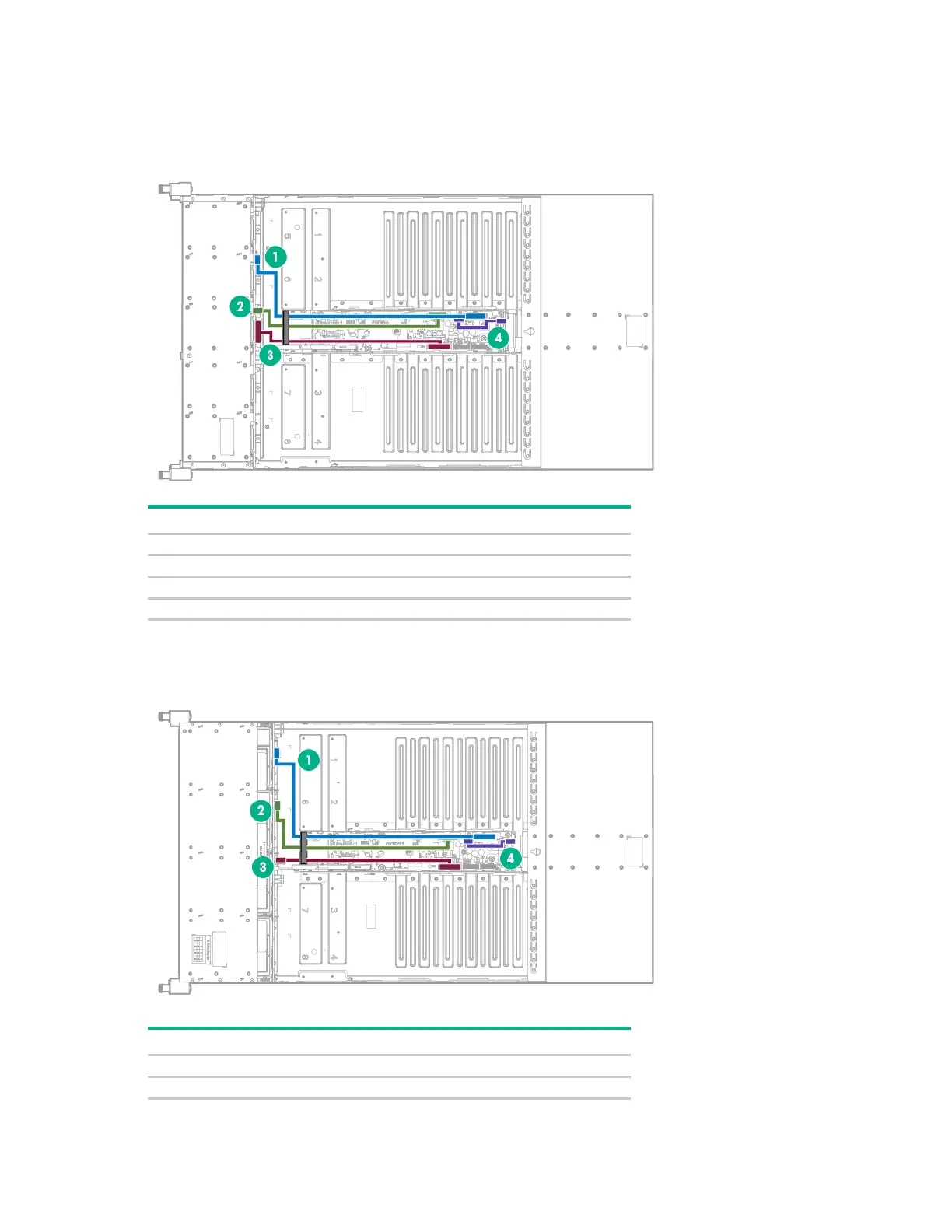

Drive backplane power cabling
HPE Apollo r2600 Chassis
Item Description
1
Power cable for Node 1 and Node 2
2
Power cable for drives
3
Power cable for Node 3 and Node 4
4
PDB pass-through cable
HPE Apollo r2200 Chassis
Item
Description
1
Power cable for Node 1 and Node 2
2
Power cable for drives
