Cabling 145

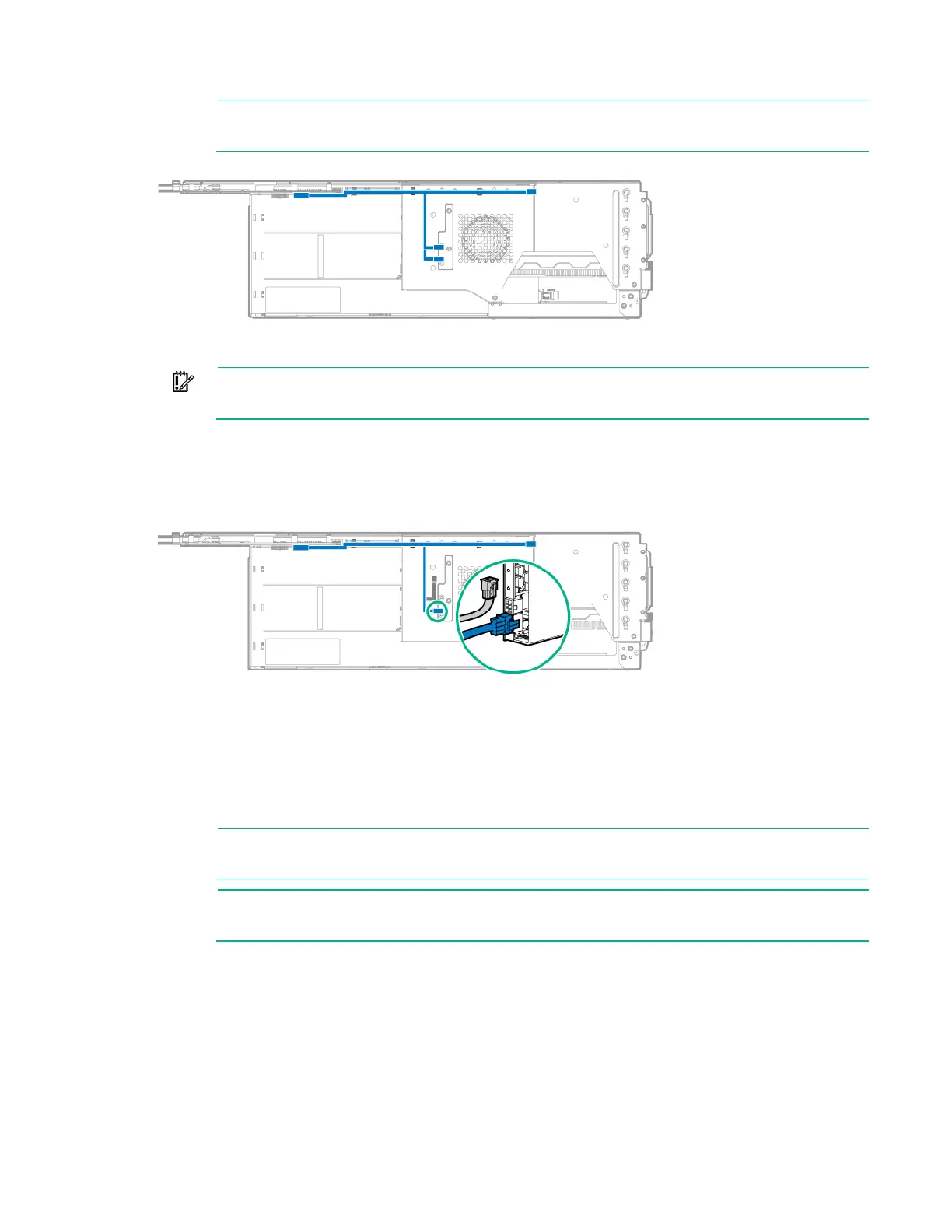

NVIDIA Tesla K40 GPU or AMD FirePro S9150 GPU
NOTE: Depending on the accelerator model purchased, the accelerator and cabling might
look slightly different than shown.
Intel Xeon Phi Coprocessor 5110P
IMPORTANT:
If installing an Intel Xeon Phi Coprocessor 5110P, connect the power cable to
the 2x4 connector only. Do not connect the power cable to the 2x3 connector.
Accelerator cabling in a three-slot riser cage assembly
NOTE: Depending on the accelerator model purchased, the accelerator and cabling might
look slightly different than shown.
NOTE: Three-
slot riser cage assemblies feature different riser boards. For more information
on the riser board slot specifications, see "PCIe riser board slot definitions (on page 26)."
