HPE Apollo 2000 User Manual

Component identification 13

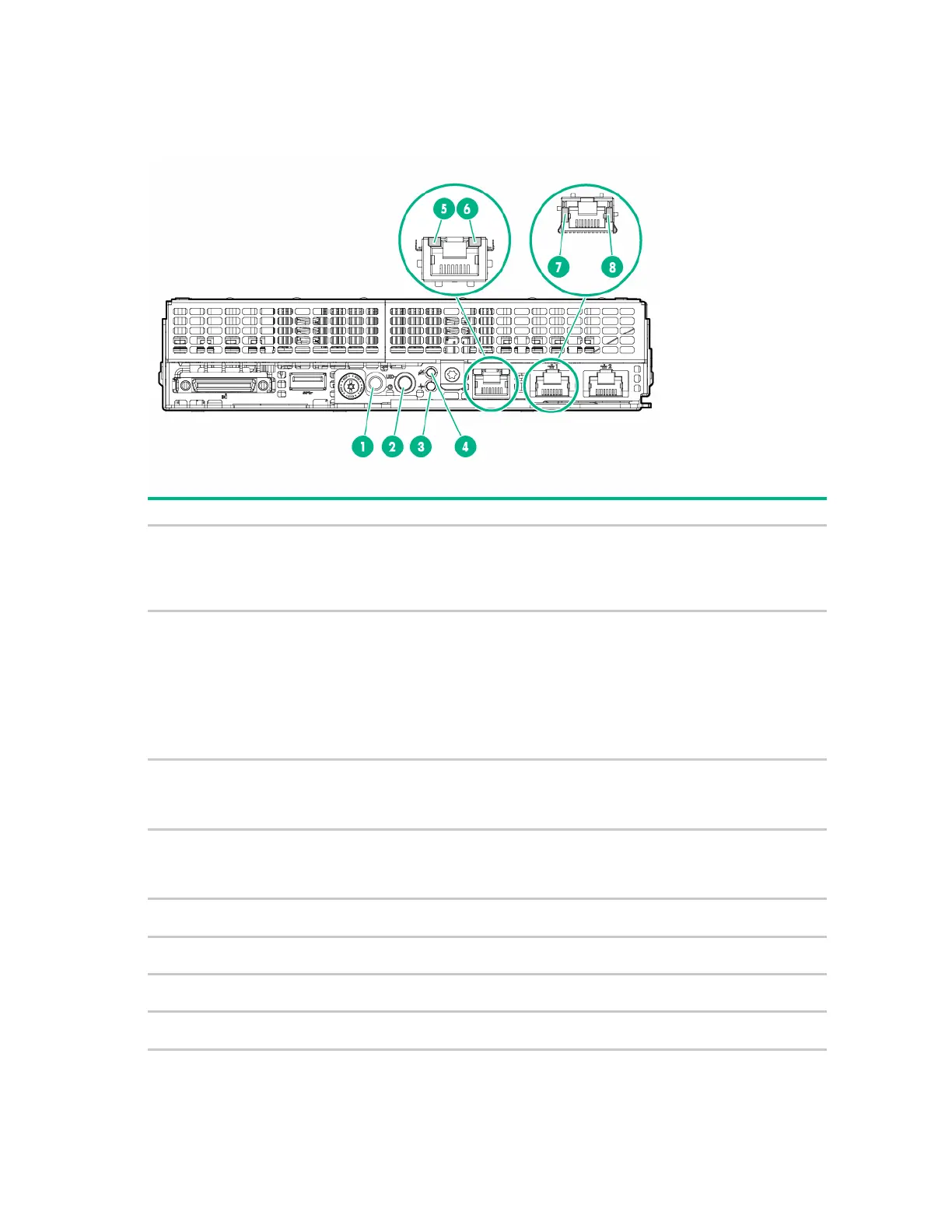

Node rear panel LEDs and buttons
• 1U node
Item
Description
Status
1
Power button/LED
1
Solid green = System on
Flashing green = Performing power on
sequence
Solid amber = System in standby
Off = No power present
2
2
UID button/LED
1
Solid blue = Activated
•
1 flash per second = Remote management
or firmware upgrade in progress
•
4 flashes per second = iLO manual soft
reboot sequence initiated
•
8 flashes per second = iLO manual hard
reboot sequence in progress
Off = Deactivated
3
Health LED
1
Solid green = Normal
Flashing green = iLO rebooting
Flashing amber = System degraded
Flashing red = System critical
3
4
Do not remove LED
Flashing white = Do not remove the node.
Removing the node may terminate the current
operation and cause data loss.
Off = The node can be removed.
5
iLO activity LED
Green or flashing green = Network activity
Off = No network activity
6
iLO link LED
Green = Linked to network
Off = No network connection
7
NIC link LED
1
Green = Linked to network
Off = No network connection
8
NIC activity LED
1
Green or flashing green = Network activity
Off = No network activity
1
When the LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
"Power fault LEDs (on page 15)."

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
