HPE Apollo 2000 User Manual

Operations 44
5.
If installed in a 2U node, remove the FlexibleLOM 2U node riser cage assembly ("FlexibleLOM 2U
node riser cage assembly" on page 52).
6. If installed in a 2U node, remove the three-slot riser cage assembly ("Three-slot riser cage
assemblies" on page 52).
7. If an accelerator power cable is installed, disconnect it from the bayonet board.
8. If a B140i SATA cable is installed, disconnect it from the system board.

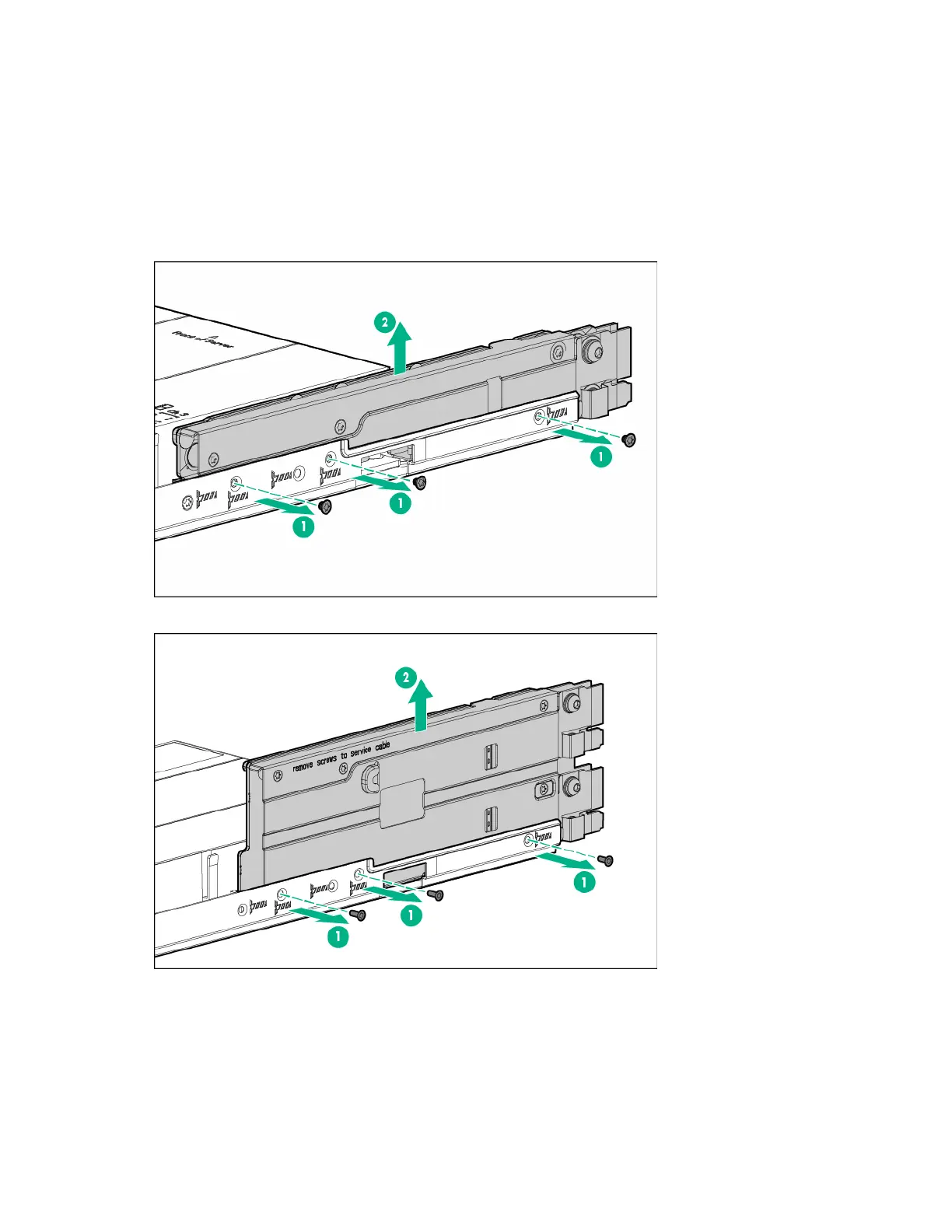

9. Remove the bayonet board assembly from the node.
o 1U bayonet board assembly
o 2U bayonet board assembly
10. If installing a SATA or mini-SAS cable, remove the bayonet board bracket from the bayonet board.

HPE Apollo 2000 Specifications

General

Form Factor	2U
Memory Type	DDR4
Max Processors	2
Memory Slots	16 DIMM slots per server tray
Storage Options	SAS, SATA
Networking	FlexibleLOM
Network	1/10/25/40/100 GbE options
Power Supply	Redundant Power Supplies
Power Supply Options	1600W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Storage	Up to 24 drives
