Hardware options installation 85
6.

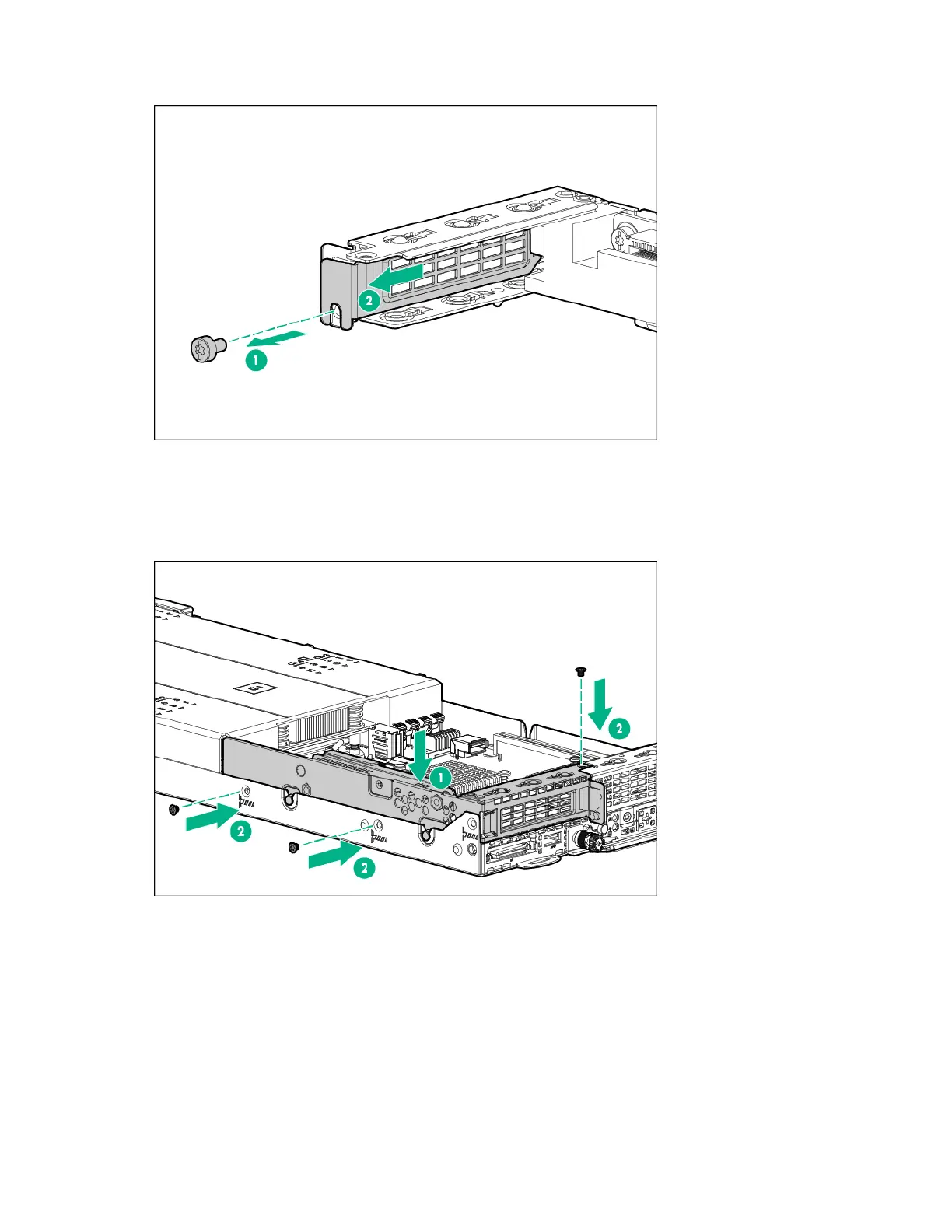

If you are installing an expansion board, remove the PCI blank.
7. Install any optional expansion boards.
8. Connect all necessary internal cabling to the expansion board. For more information on these
cabling requirements, see the documentation that ships with the option.
9. In a 1U node, install the single-slot left PCI riser cage assembly and then secure it with three T-10
screws.
10. In a 2U node, do the following:
