[PE2-xcg-vpnb-auto] site 2 range 10 default-offset 0
[PE2-xcg-vpnb-auto-2] connection remote-site-id 1
[PE2-xcg-vpnb-auto-2-1] ac interface GigabitEthernet 1/0/1 service-instance 10
[PE2-xcg-vpnb-auto-2-1] return
5. Configure CE 2.
<CE2> system-view
[CE2] interface gigabitethernet 1/0/1
[CE2-GigabitEthernet1/0/1] port link-type trunk
[CE2-GigabitEthernet1/0/1] port trunk permit vlan 10
[CE2-GigabitEthernet1/0/1] quit
Verifying the configuration
# Display L2VPN PW information on PE 1. The output shows that a PW has been established.
<PE1> display l2vpn pw
Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon
Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect
Xconnect-group Name: vpnb
Peer PW ID/Rmt Site In/Out Label Proto Flag Link ID State
192.3.3.3 2 65636/65625 BGP M 1 Up
# Display L2VPN PW information on PE 2. The output shows that a PW has been established.
<PE2> display l2vpn pw
Flags: M - main, B - backup, H - hub link, S - spoke link, N - no split horizon
Total number of PWs: 1, 1 up, 0 blocked, 0 down, 0 defect
Xconnect-group Name: vpnb
Peer PW ID/Rmt Site In/Out Label Proto Flag Link ID State
192.2.2.2 1 65625/65636 BGP M 1 Up
# Verify that CE 1 and CE 2 can ping each other. (Details not shown.)
Configuring a remote CCC connection
Network requirements
Create a remote CCC connection between PE 1 and PE 2 so VLAN 10 on CE 1 can communicate
with VLAN 10 on CE 2.

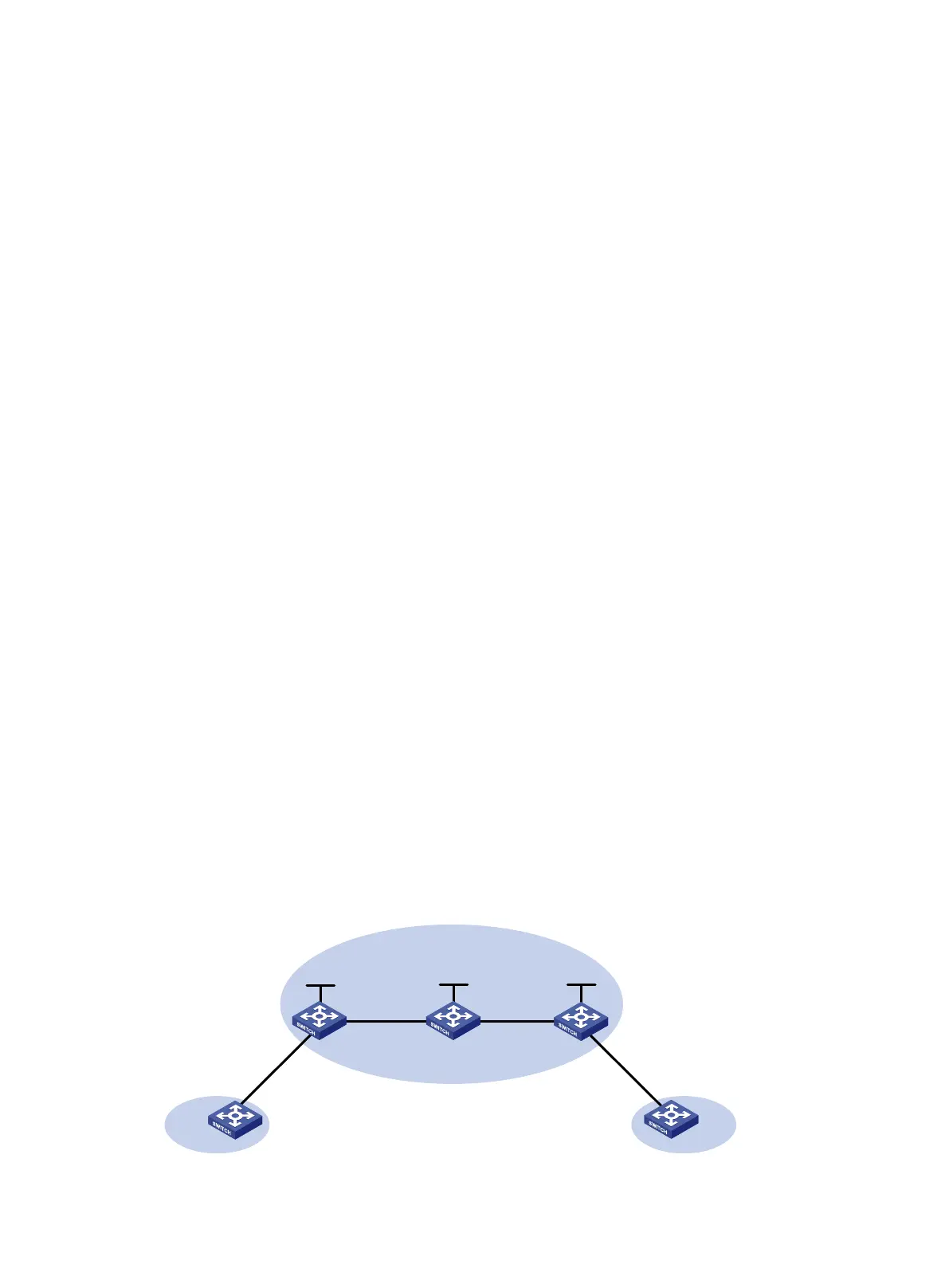

Figure 90 Network diagram
MPLS or IP backbone
CE 1 CE 2
PE 1 PE 2P
Vlan-int20
Vlan-int20
Vlan-int30
Vlan-int30
GE1/0/1 GE1/0/1
GE1/0/1
GE1/0/1
Loop0 Loop0 Loop0
Site 1 Site 2
