MCE configuration examples
Configuring the MCE that uses OSPF to advertise VPN
routes to the PE
Network requirements
As shown in Figure 110, VPN 2 runs OSPF. Configure the MCE device to separate routes from
different VPNs and to advertise the VPN routes to PE 1 through OSPF.

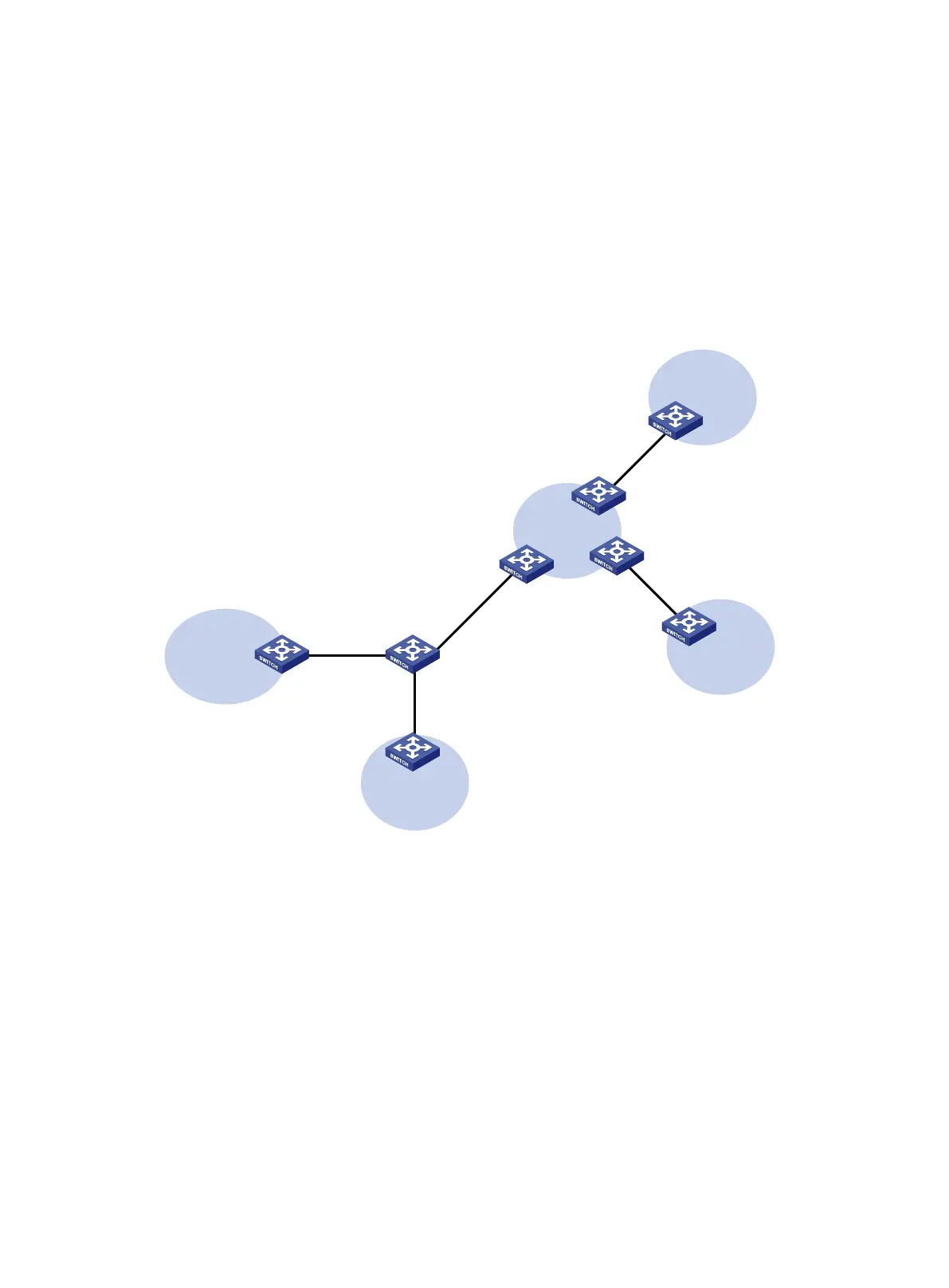

Figure 110 Network diagram
Configuration procedure
Assume that the system name of the MCE device is MCE, the system names of the edge devices of
VPN 1 and VPN 2 are VR1 and VR2, respectively, and the system name of PE 1 is PE1.
1. Configure the VPN instances on the MCE and PE 1:
# On the MCE, configure VPN instances vpn1 and vpn2, and specify an RD and route targets
for each VPN instance.
<MCE> system-view
[MCE] ip vpn-instance vpn1
[MCE-vpn-instance-vpn1] route-distinguisher 10:1
[MCE-vpn-instance-vpn1] vpn-target 10:1
[MCE-vpn-instance-vpn1] quit
[MCE] ip vpn-instance vpn2
[MCE-vpn-instance-vpn2] route-distinguisher 20:1
[MCE-vpn-instance-vpn2] vpn-target 20:1
[MCE-vpn-instance-vpn2] quit
