HPE FlexNetwork 5510 HI Series Mpls Configuration Guide

12
Step
Command
Remarks
static LSP.
outgoing-interface
interface-type
interface-number }
out-label
out-label
node has an active route to the
specified next hop address.
4.
Configure the
egress node of the
static LSP.
static-lsp egress
lsp-name
in-label
in-label
You do not need to configure this
command if the outgoing label
configured on the penultimate hop
of the static LSP is 0 or 3.
Displaying static LSPs
Execute display commands in any view.
Task
Command
Display static LSP information.
display mpls static-lsp
[
lsp-name
lsp-name ]
Static LSP configuration example
Network requirements
Switch A, Switch B, and Switch C all support MPLS.
Establish static LSPs between Switch A and Switch C, so that subnets 11.1.1.0/24 and 21.1.1.0/24
can access each other over MPLS.

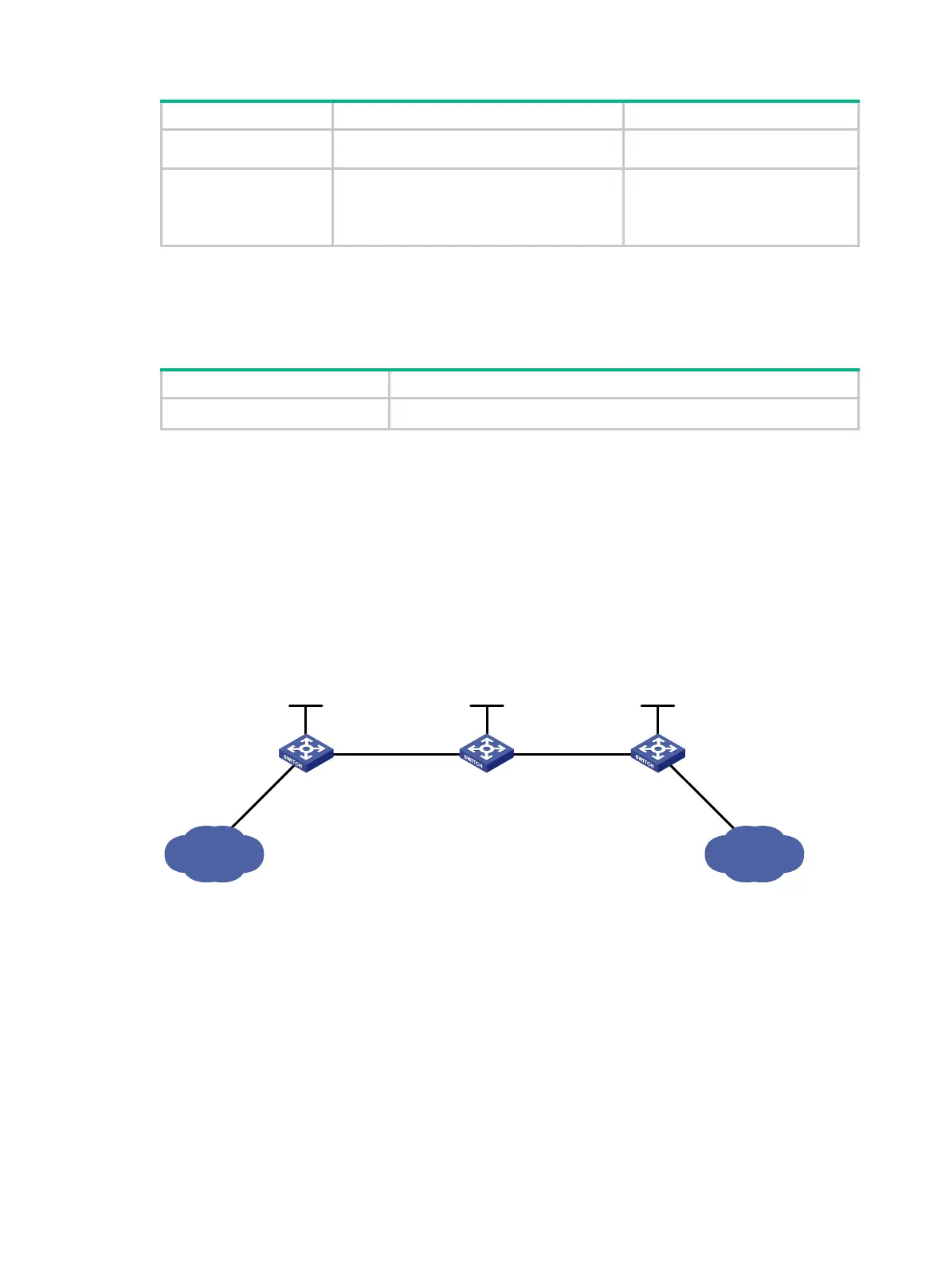

Figure 8 Network diagram
Configuration restrictions and guidelines
• For an LSP, the outgoing label specified on an LSR must be identical with the incoming label
specified on the downstream LSR.
• LSPs are unidirectional. You must configure an LSP for each direction of the data forwarding
path.
• A route to the destination address of the LSP must be available on the ingress node and the
egress node, but it is not needed on transit nodes. Therefore, you do not need to configure a
routing protocol to ensure IP connectivity among all switches.
Loop0
2.2.2.9/32
Vlan-int3
20.1.1.1/24
Loop0
3.3.
3.9
/32
Loop0
1.1.1.9/32
Vlan-
int
2
10.1.
1
.1/
24
Vlan-int
2
10.1.1.2/24
Vlan-int3
20.1.1.2/24
Switch A Switch B Switch C
11.1.1.0/24
21.1.1.0/24
Vlan-int4
11.1.1.1/24
Vlan-int5
21.1.1.1/24
