PW ID FEC (Local/Remote):
Local AII : (1.1.1.9, 3.3.3.9)
Remote AII : (3.3.3.9, 1.1.1.9)
PW Type : VLAN/VLAN
Group ID : 0/0
Label : 131154/131116
Control Word: Disabled/Disabled
VCCV CV Type: -/-
VCCV CC Type: -/-
MTU : 1500/1500
PW Status : PW forwarding/PW forwarding
H-VPLS using access configuration example
Network requirements
Configure an H-VPLS using MPLS access to avoid full-mesh PW configuration. The H-VPLS uses
LDP as the PW signaling protocol.

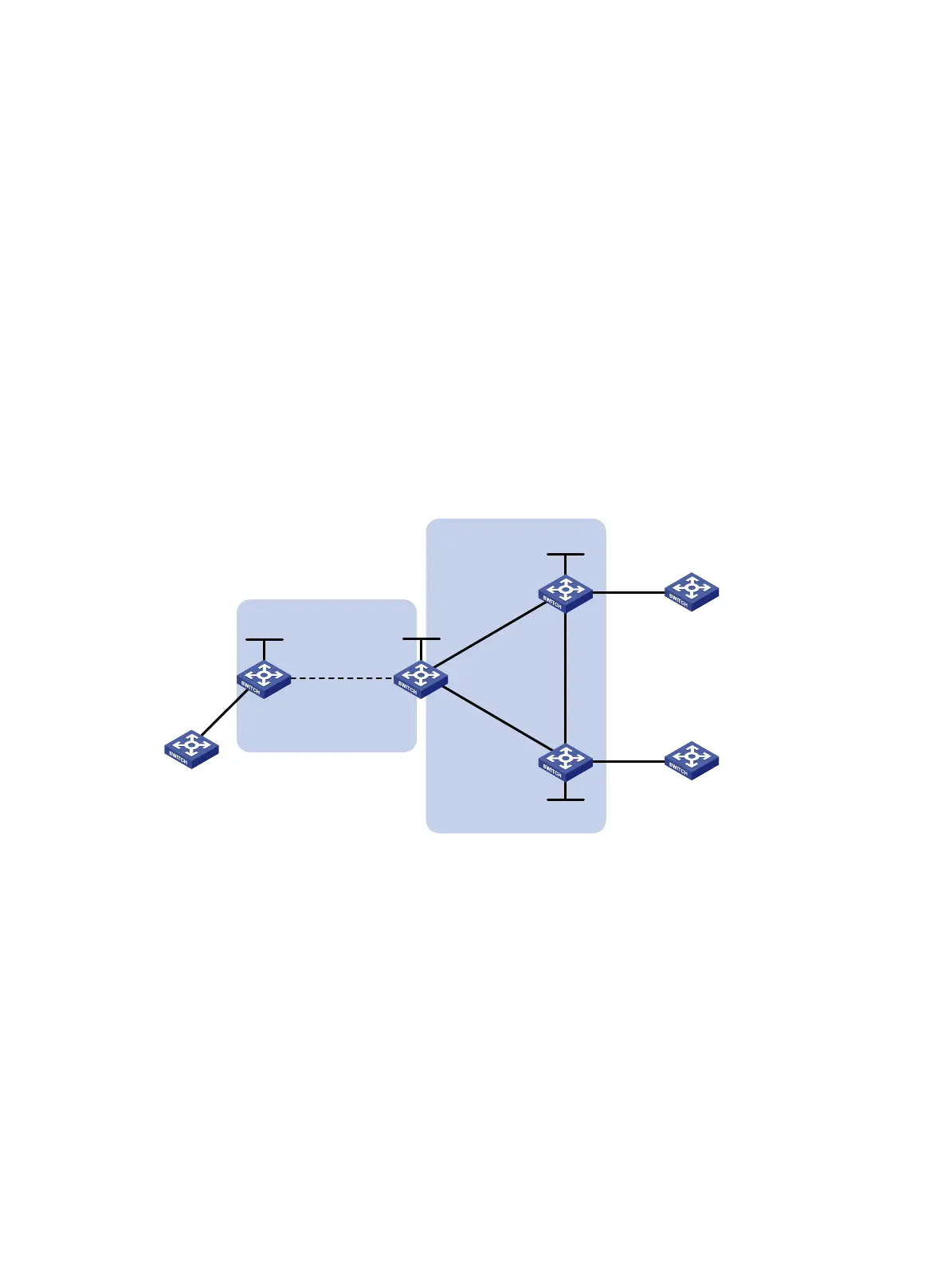

Figure 103 Network diagram
Configuration procedure
1. Configure an IGP and public tunnels on each PE. (Details not shown.)
2. Configure UPE:
# Configure basic MPLS.
<UPE> system-view
[UPE] interface loopback 0
[UPE-LoopBack0] ip address 1.1.1.9 32
[UPE-LoopBack0] quit
[UPE] mpls lsr-id 1.1.1.9
[UPE] mpls ldp
[UPE-ldp] quit
# Enable L2VPN.
[UPE] l2vpn enable
Backbone
domain
Edge
domain
UPE NPE 1
NPE 2
CE 2
GE1/0/1
Loop0
1.1.1.9/32
Loop0
2.2.2.9/32
Loop0
3.3.3.9/32
Vlan-int10
10.1.1.1/24
Vlan-int10
10.1.1.2/24
Vlan-int20
20.1.1.1/24
Vlan-int20
20.1.1.2/24
CE 1
NPE 3
CE 3
GE1/0/1
Vlan-int30
30.1.1.1/24
Vlan-int30
30.1.1.2/24
Loop0
4.4.4.9/32
GE1/0/1
Vlan-int40
40.1.1.1/24
Vlan-int40
40.1.1.2/24
