IPv6 MPLS L3VPN configuration examples
Configuring IPv6 MPLS L3VPNs
Network requirements
CE 1 and CE 3 belong to VPN 1. CE 2 and CE 4 belong to VPN 2.
VPN 1 uses route target attributes 111:1. VPN 2 uses route target attributes 222:2. Users of different
VPNs cannot access each other.
Run EBGP between CE and PE switches to exchange VPN routing information.
PEs use OSPF to communicate with each other and use MP-IBGP to exchange VPN routing
information.

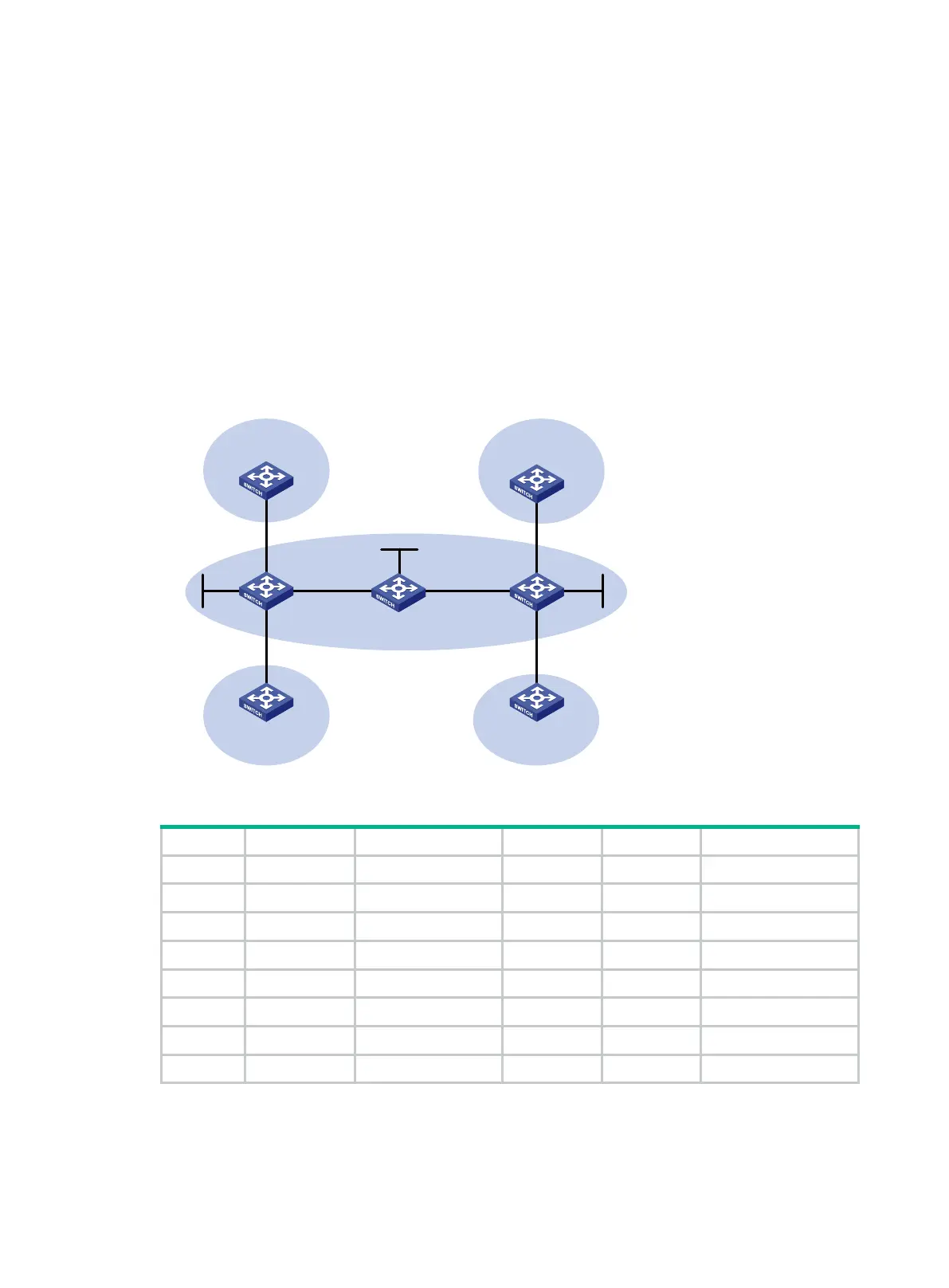

Figure 77 Network diagram
Table 25 Interface and IP address assignment
Device
Interface
IP address
Device
Interface
IP address
CE 1 Vlan-int11 2001:1::1/96 P Loop0 2.2.2.9/32
PE 1 Loop0 1.1.1.9/32 Vlan-int12 172.2.1.1/24
Vlan-int11 2001:1::2/96 Vlan-int13 172.1.1.2/24
Vlan-int13 172.1.1.1/24 PE 2 Loop0 3.3.3.9/32
Vlan-int12 2001:2::2/96 Vlan-int12 172.2.1.2/24
CE 2 Vlan-int12 2001:2::1/96 Vlan-int11 2001:3::2/96
CE 3 Vlan-int11 2001:3::1/96 Vlan-int13 2001:4::2/96
CE 4 Vlan-int13 2001:4::1/96
Configuration procedure
1. Configure OSPF on the MPLS backbone to ensure IP connectivity among the PEs and the P
switch:
CE 1
Loop0
Loop0 Loop0
PE 1
PE 2
Vlan-int11
Vlan-int11
Vlan-int12
Vlan-int12
Vlan-int12
Vlan-int13
Vlan-int13
Vlan-int11
Vlan-int11
CE 3
CE 2
CE 4
Vlan-int13
Vlan-int12
Vlan-int13
VPN 1
VPN 1
VPN 2
VPN 2
MPLS backbone
AS 65410 AS 65430
AS 65420
AS 65440
P
