121
• The device detects whether a user has gone offline every 180 seconds. If a user fails
authentication, the device does not authenticate the user within 180 seconds.
• All MAC authentication users belong to ISP domain 2000 and share the user account aaa with
password 123456.

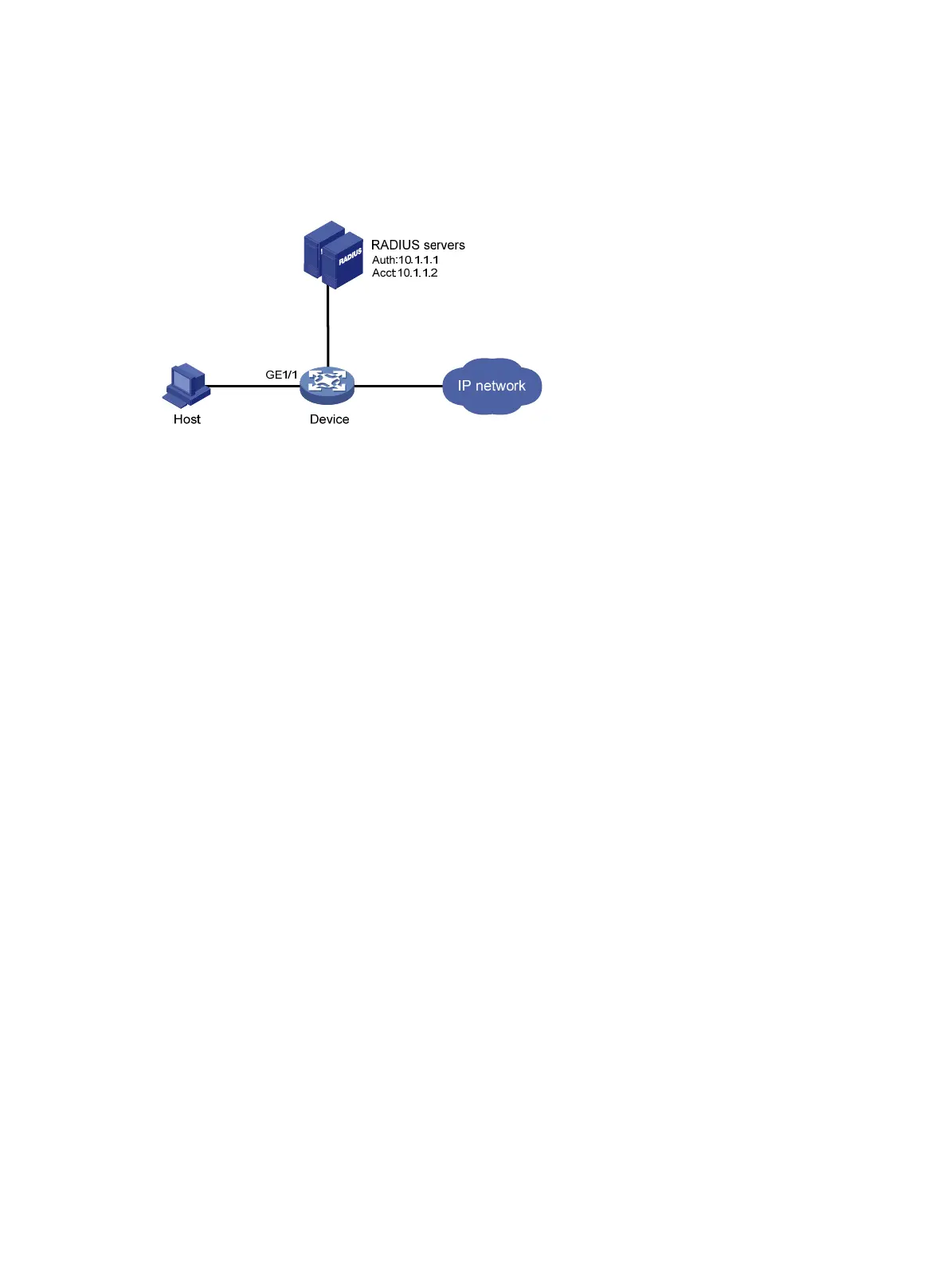

Figure 48 Network diagram
Configuration procedure
1. Make sure the RADIUS server and the access device can reach each other.
2. Create a shared account for MAC authentication users on the RADIUS server, and set the
username aaa and password 123456 for the account.
3. Configure the device:
# Configure a RADIUS scheme.
<Device> system-view
[Device] radius scheme 2000
[Device-radius-2000] primary authentication 10.1.1.1 1812
[Device-radius-2000] primary accounting 10.1.1.2 1813
[Device-radius-2000] key authentication abc
[Device-radius-2000] key accounting abc
[Device-radius-2000] user-name-format without-domain
[Device-radius-2000] quit
# Apply the RADIUS scheme to ISP domain 2000 for authentication, authorization, and
accounting.
[Device] domain 2000
[Device-isp-2000] authentication default radius-scheme 2000
[Device-isp-2000] authorization default radius-scheme 2000
[Device-isp-2000] accounting default radius-scheme 2000
[Device-isp-2000] quit
# Enable MAC authentication globally.
[Device] mac-authentication
# Enable MAC authentication on port GigabitEthernet 1/1.
[Device] mac-authentication interface gigabitethernet 1/1
# Specify the ISP domain for MAC authentication.
[Device] mac-authentication domain 2000
# Set the MAC authentication timers.
[Device] mac-authentication timer offline-detect 180
[Device] mac-authentication timer quiet 180
# Specify username aaa and password 123456 in plain text for the account shared by MAC
authentication users.
