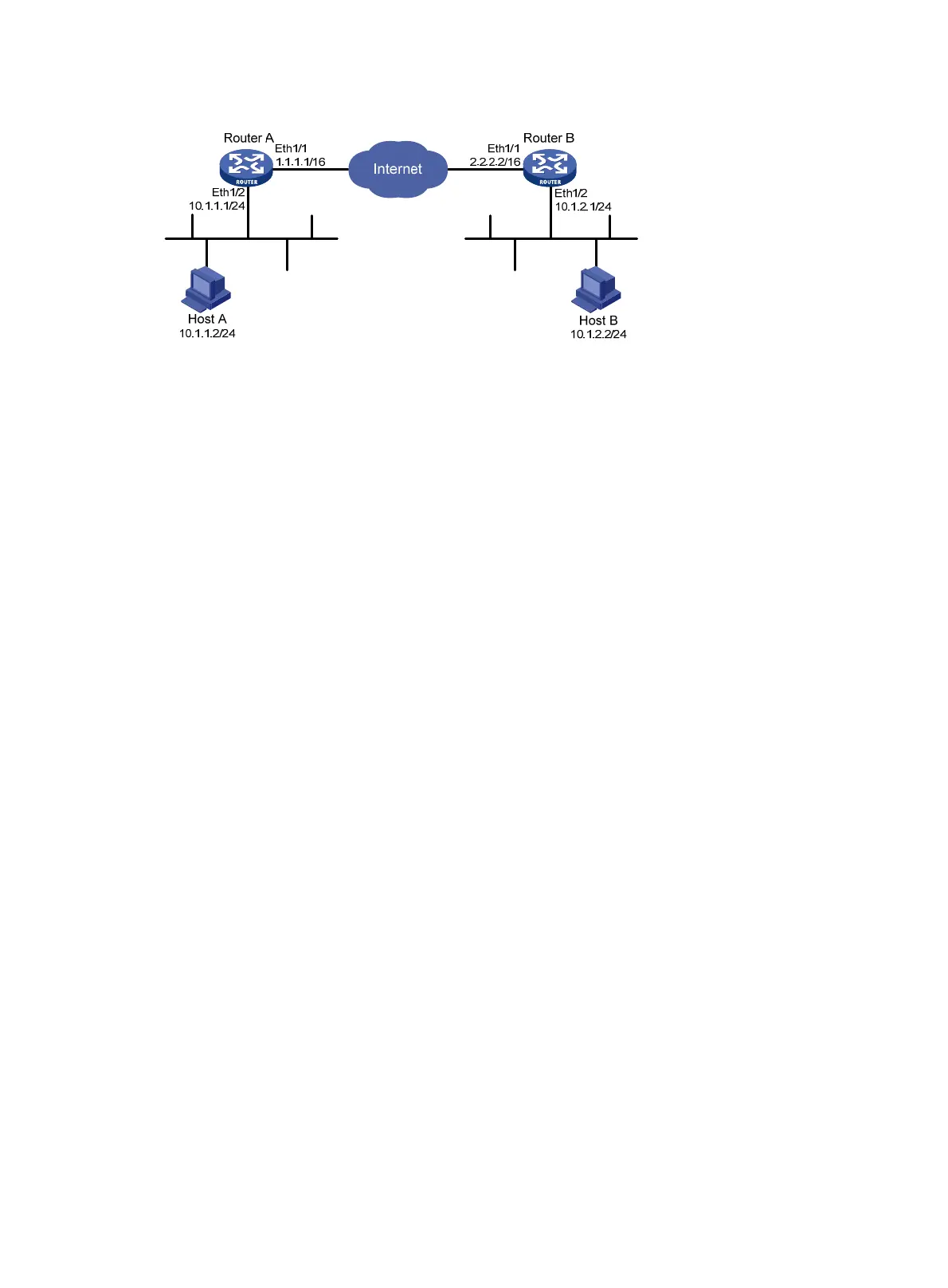

Figure 69 Network diagram

Configuration prerequisites

Make sure Router A and Router B can reach each other.

Configure the security gateway Router A

1. Configure ACL 3101 to identify traffic from subnet 10.1.1.0/24 to subnet 10.1.2.0/24.

<RouterA> system-view

[RouterA] acl number 3101

[RouterA-acl-adv-3101] rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0

0.0.0.255

[RouterA-acl-adv-3101] quit

2. Configure an IPsec transform set:

# Create IPsec transform set transform_a.

[RouterA] ipsec transform-set transform_a

# Configure the IPsec transform set to use the security protocol ESP, encryption algorithm DES,

and authentication algorithm SHA1.

[RouterA-ipsec-transform-set-transform_a] transform esp

[RouterA-ipsec-transform-set-transform_a] esp encryption-algorithm des

[RouterA-ipsec-transform-set-transform_a] esp authentication-algorithm sha1

[RouterA-ipsec-transform-set-transform_a] quit

3. Configure an IKEv2 proposal:

# Create IKEv2 proposal proposal_a.

[RouterA] ikev2 proposal proposal_a

# Configure the IKEv2 proposal to use the encryption algorithm AES-CBC-192, integrity

protection algorithm MD5, PRF algorithm MD5, and 1024-bit DH group.

[RouterA-proposal-proposal_a] encryption aes-cbc-192

[RouterA-proposal-proposal_a] integrity md5

[RouterA-proposal-proposal_a] prf md5

[RouterA-proposal-proposal_a] group 2

[RouterA-proposal-proposal_a] quit

4. Configure an IKEv2 policy:

# Create IKEv2 policy policy_a.

[RouterA] ikev2 policy policy_a

# Configure the IKEv2 policy to use IKEv2 proposal proposal_a.

[RouterA-policy-policy_a] proposal proposal_a

[RouterA-policy-policy_a] quit

5. Configure an IKEv2 keyring:
