288
10. The portal server notifies the authentication client of logon success.
11. The portal server sends a user IP address change acknowledgment message to the access
device.
With extended portal functions, the process includes additional steps:
12. The security policy server exchanges security check information with the authentication client
to check whether the authentication client meets the security requirements.
13. Based on the security check result, the security policy server authorizes the user to access
certain resources, and sends the authorization information to the access device. The access
device then controls access of the user based on the authorization information.
Authentication process with the local portal server

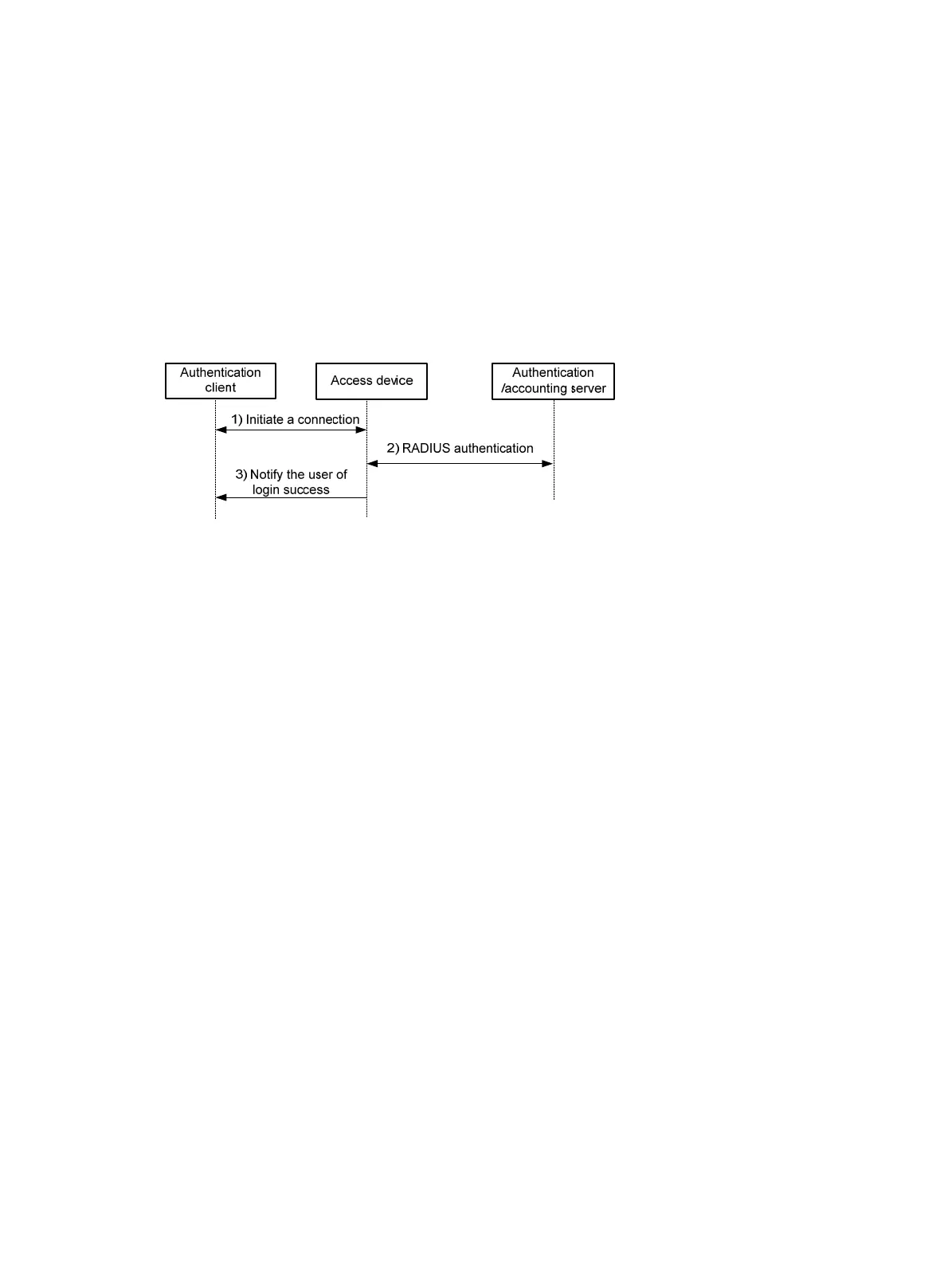

Figure 91 Authentication process with the local portal server
With the local portal server, the direct/cross-subnet authentication process is as follows:
1. A portal client initiates authentication by sending an HTTP request. When the HTTP packet
arrives at an access device using the local portal server, it is redirected to the local portal server,
which then pushes a Web authentication page for the user to enter the username and password.
The listening IP address of the local portal server is the IP address of a Layer 3 interface on the
access device that can communicate with the portal authentication client.
2. The access device and the RADIUS server exchange RADIUS packets to authenticate the
user.
3. If the user passes authentication, the local portal server pushes a logon success page to the
authentication client, informing the user of the authentication (logon) success.
