The load balancing mode for unknown unicast traffic is configured.
----End
2.3.8 Checking the Configuration
Procedure
l Run the display trunkmembership eth-trunk trunk-id command to display the member
interfaces of the Eth-Trunk.
l Run the display eth-trunk trunk-id command to display the load balancing status of the
Eth-Trunk.
----End
2.4 Configuring Link Aggregation in Static LACP Mode
This section describes how to configure link aggregation in static LACP mode.
2.4.1 Establishing the Configuration Task
Applicable Environment
To increase the bandwidth and improve the connection reliability, you can configure a link
aggregation group on two directly connected Switches. The requirements are as follows:
l The links between two devices can implement redundancy backup. When a fault occurs on
some links, the backup links replace the faulty ones to keep data transmission uninterrupted.
l The active links have the load balancing capability.

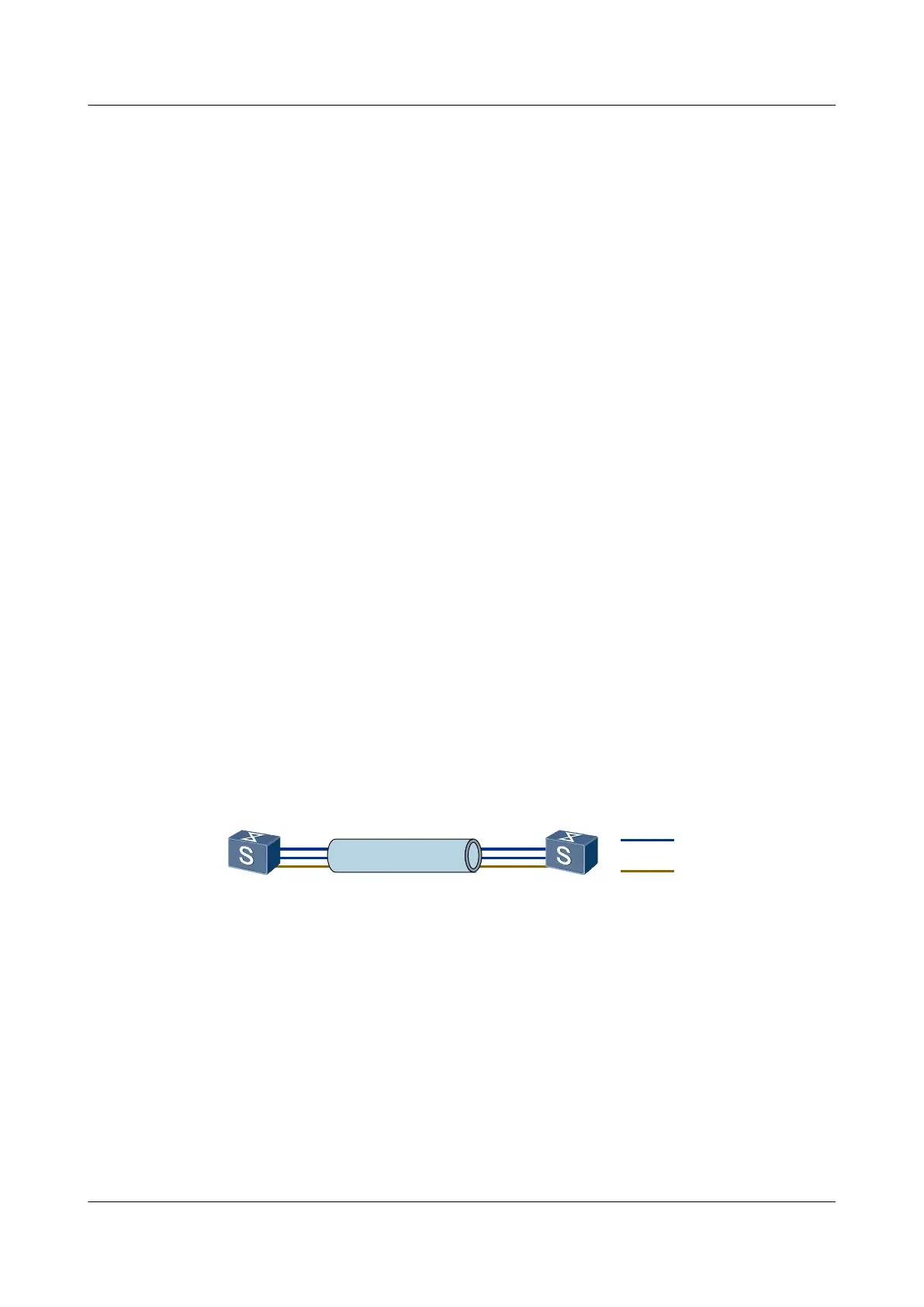

Figure 2-3 Typical networking of link aggregation in static LACP mode
SwitchB
Eth-Trunk 1
SwitchA
Eth-Trunk 1
Eth-Trunk
Active link
Standby link
Pre-configuration Tasks
Before configuring an Eth-Trunk in static LACP mode, complete the following tasks:
l Powering on the S7700
l Creating the Eth-Trunk
Data Preparation
To configure an Eth-Trunk in static LACP mode, you need the following data.
Quidway S7700 Smart Routing Switch
Configuration Guide - Ethernet 2 Link Aggregation Configuration
Issue 01 (2011-07-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26
