EDGE Pro Ti CNC Instruction Manual 807660 83
Installation
Plasma connection

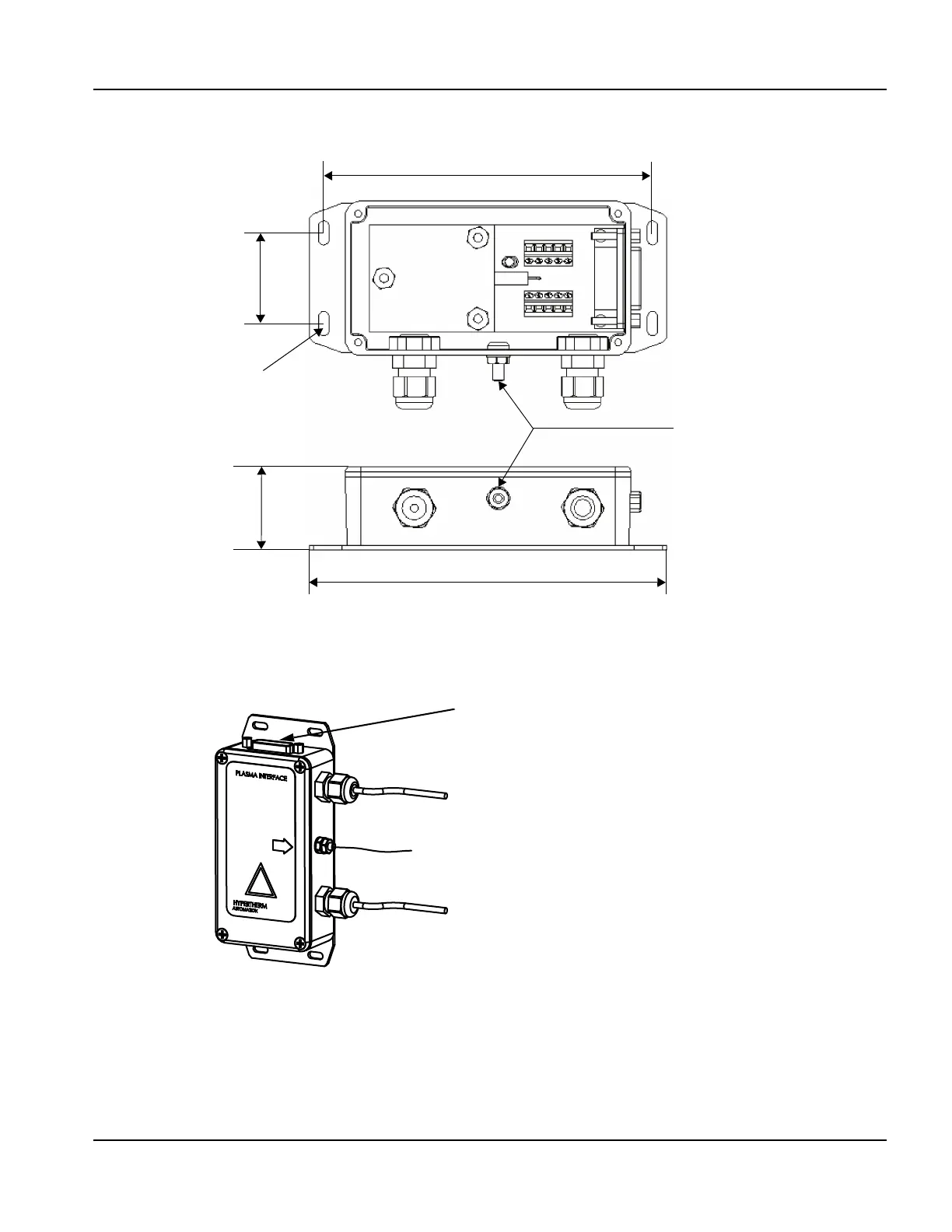

Figure 43 Mounting dimensions for the plasma interface assembly (228256)
Figure 44 Plasma interface assembly (228256)
129.8 mm (5.08 in.)
35.6 mm
1.40 in.
Slots for no. 6 or
M3 screws
32.8 mm
(1.29 in.)
140.2 mm (5.52 in.)
Connect to the star ground on the
work table
15-pin D-sub connector for the plasma interface cable to the CNC
To the star ground on the work table
Arc voltage signals to the electrode on the control board
I/O signals between the CNC and the control board
