15. Monitor
216
15.11. Virtual Input/Output Port

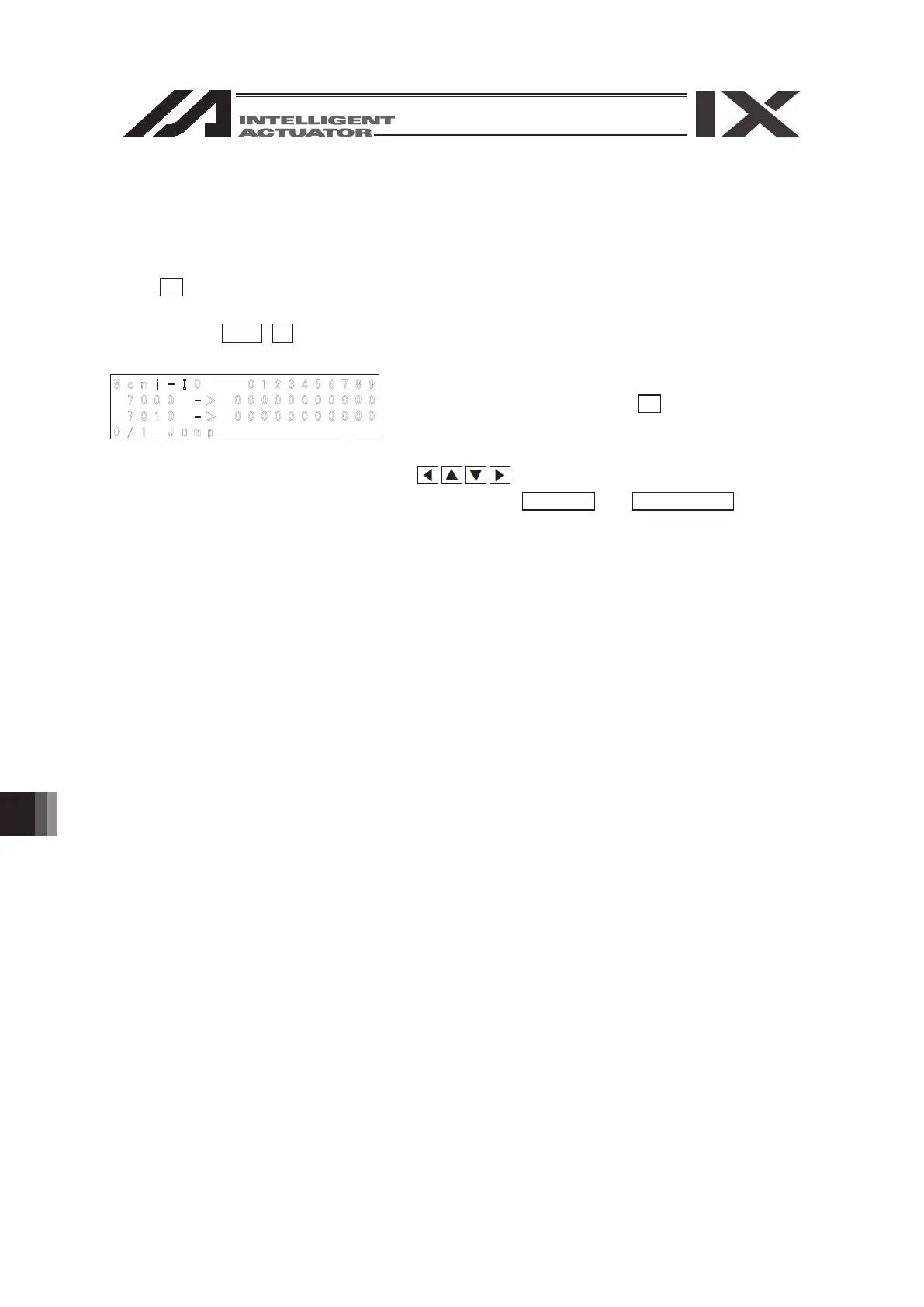

It shows the status on/off of the TTA virtual input and output ports.
[Refer to SEL Language Programing Manual for assignment of the virtual input and output ports]
It is available to switch on/off the virtual output port.
Select F2
[IO] key from the monitor item screen.
Mode Transfer: Moni - IO
The output port which the cursor is placed at can be
switched on and off every time F1
(0/1) key is pressed.
1 : ON 0 : OFF
The cursor can be moved with the return key and
keys.
Every touch of PAGE UP
and PAGE DOWN buttons
scrolls up/down the port numbers by 20 items.
M o n i - I O 0 1 2 3 4 5 6 7 8 9
7 0 0 0 - ＞ 0 0 0 0 0 0 0 0 0 0 0
7 0 1 0 - ＞ 0 0 0 0 0 0 0 0 0 0 0
0 / 1 J u m p
To Next Page
