13. Symbol Edit
(Excluding the positioner mode of the SSEL, ASEL and PSEL controller.)
190
175

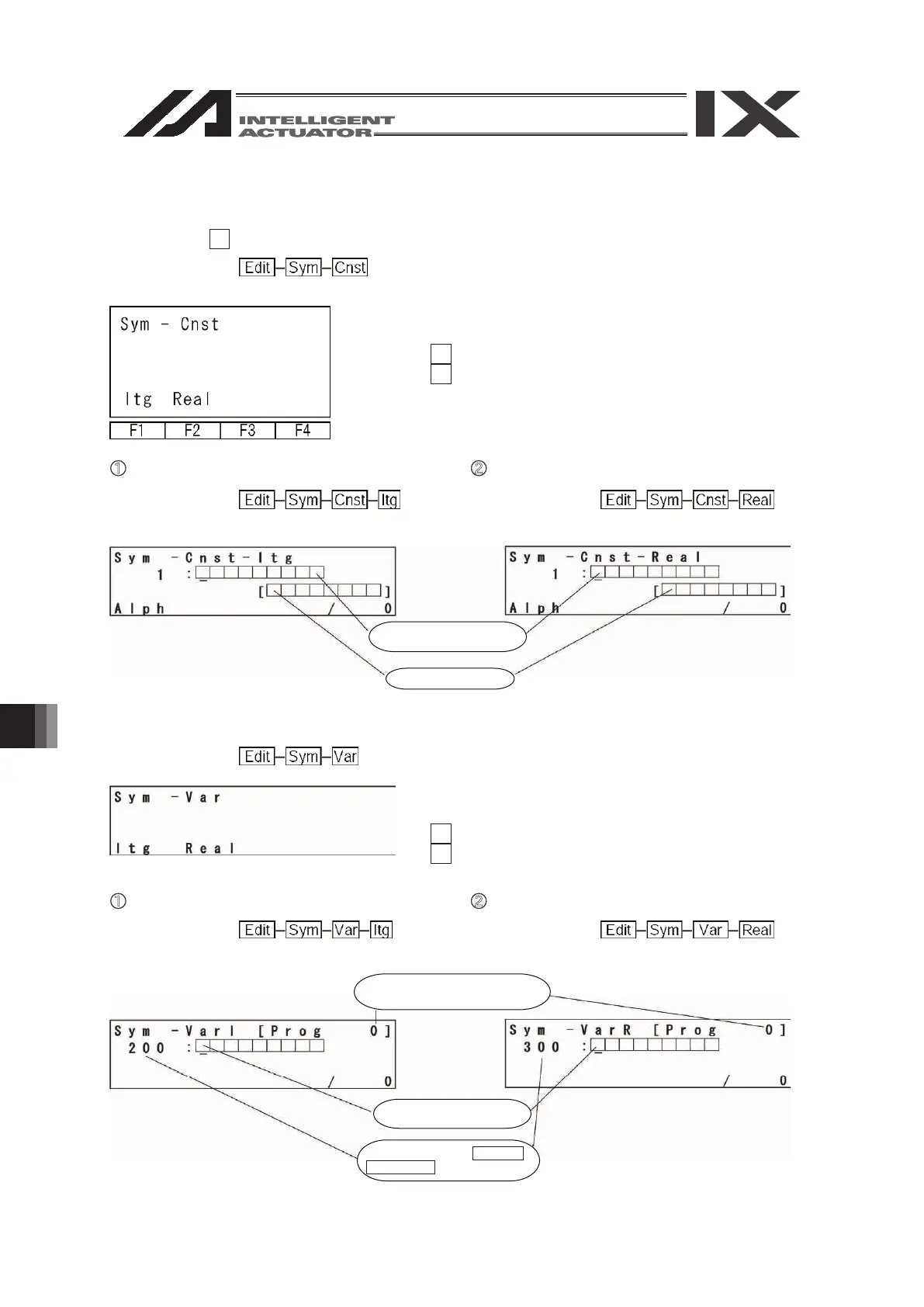

15.3. Symbol Edit Screen of Each Items
(1) Constant Number
Select the F1 (Cnst) key on the constant number symbol edit item screen.
Mode Transition:
Selection of Integer Type · Real Number Type Constant Number
Select an integer or real number.
F1 (ltg): Integer
F2 (Real): Real Number
① Integer Type Constant Number ② Real Number Type Constant Number
Mode Transition:
Integer Type Constant Number
Symbol Edit Screen
Mode Transition:
Real Type Constant Number Symbol Edit Screen
(2) Variable
Select the F2 (Var) key on the variable symbol edit item screen.
Mode Transition:
Selection of Integer Type · Real Number Type Variable
Select an integer or real number.
F1 (ltg): Integer
F2 (Real): Real Number
① Integer Type Variable No. ② Real Number Type Variable No.
Mode Transition:
Integer Type Variable No. Symbol Edit Screen
Mode Transition:
Real Number Type Variable No. Symbol Edit Screen
Input alphabet and number.
Input constant value.
Input alphabet and number.
Input variable No. by PAGE UP ·
PAGE DOWN key or 10 keys
Input program No. at local area.
Input 0 at
g
lobal area.
13.3.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
