7. Simple Operation Procedure
57
7. Simple Operation Procedure
7.1. Orthogonal Axis:
5th and 6th Axes of XSEL-K, P/Q or PX/QX Controller,
5th to 8th Axes of R/S or RX/SX Controller or TT, TTA, SSEL, ASEL or
PSEL Controller

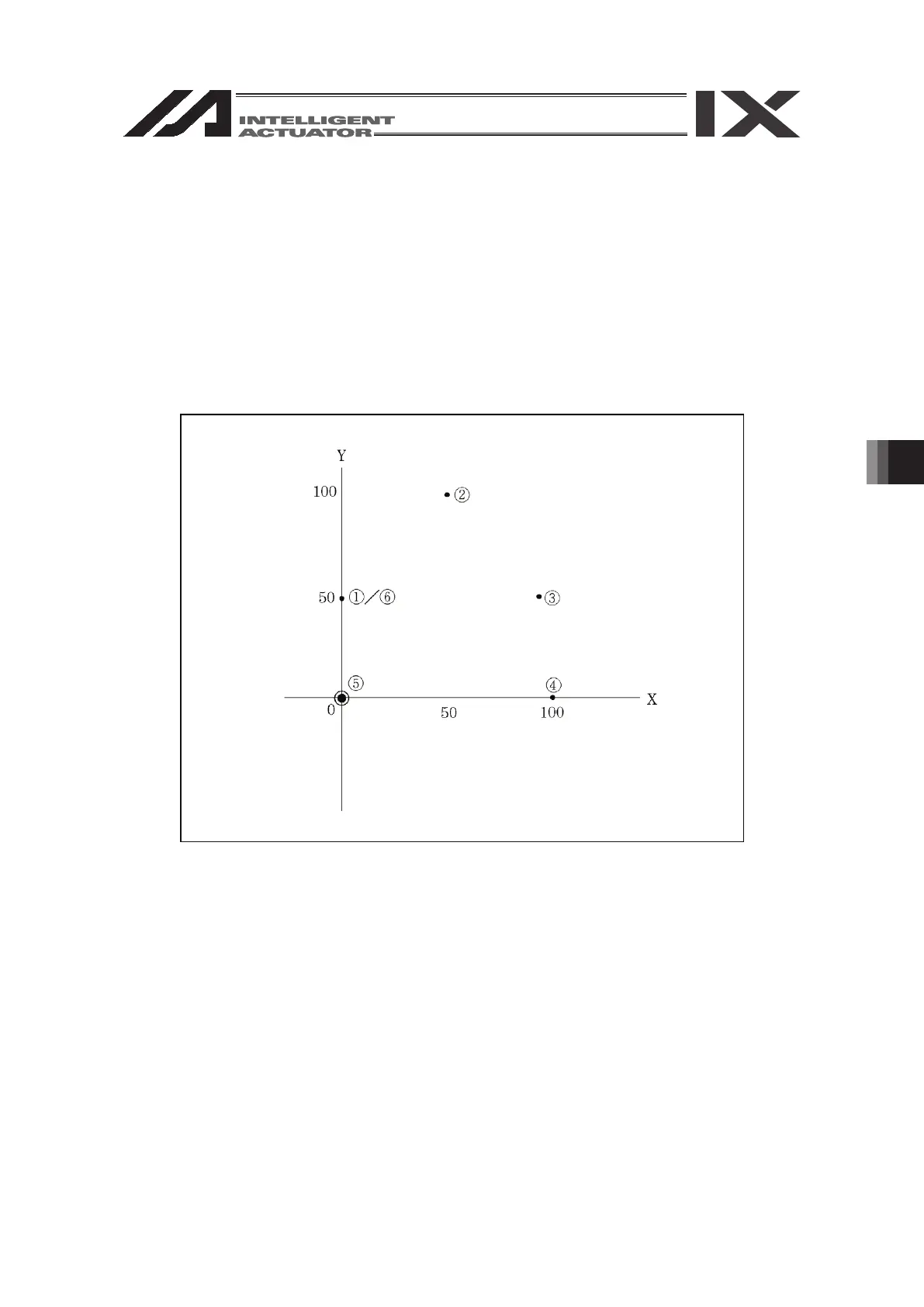

Here, the program and position data to draw a simple “pentagon” passing through the following 6
points (
and
are same position) by the actuator of 2 axes (X, Y) are created.
47
9. Simple Operation Procedure
9-1. Orthogonal Axis: 5th and 6th Axes of X-SEL-K, P/Q or PX/QX - TT, SSEL,
ASEL or PSEL Controller
Here, the program and position data to draw a simple “pentagon” passing through the following 6
points ( and are same position) by the actuator of 2 axes (X, Y) are created.
Position Data ( to )
