13. Symbol Edit (Excluding the positioner mode of the SSEL, ASEL and PSEL controller.)
185
170
15. Symbol Edit
(Excluding the positioner mode of the SSEL, ASEL and
PSEL controller.)
Symbol (Names) can be applied to variables, input ports, flags, position, etc., in SEL controller.
Select the F1 (Edit) key.
Select the F3 (Sym) key.
15-1. Symbol Edit Items

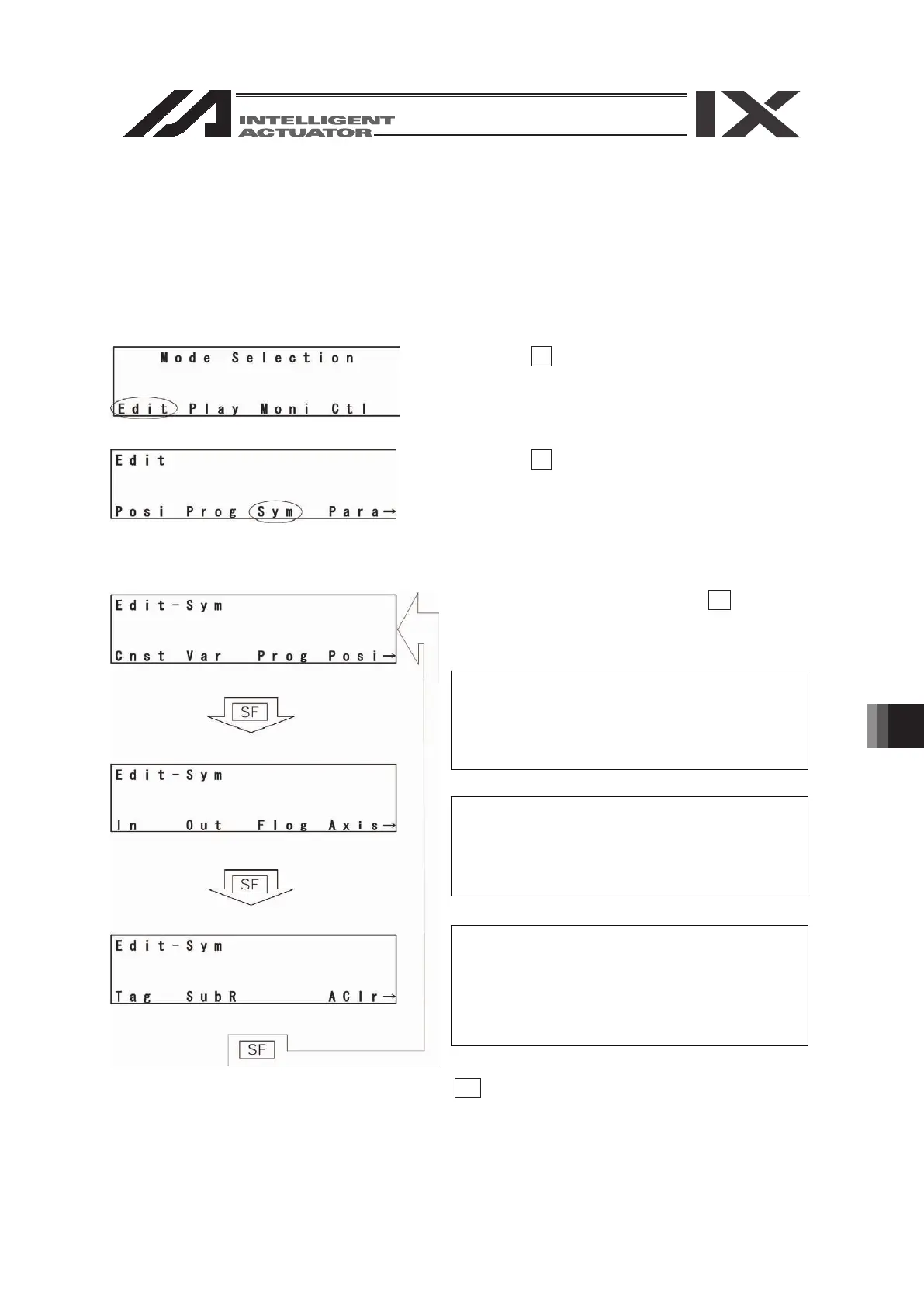

Symbolized items will be displayed in the function
key area. Each time by pressing SF key, items
are shifted and displayed.
Symbol Edit Items
Cnst: Constant number
Var: Variable
Prog: Program No.
Posi: Position No.
In: Input port No.
Out: Output port No.
Flag: Flag No.
Axis: Axis No.
Tag: Tag No.
SubR: Subroutine No.
Aclr: All clear
Clear all the symbol data.
Display the list of items to symbolize by using the
SF (shift) key and select with the function keys.
13.
13.1.

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
