IAI SEL User Manual

16. Controller
229

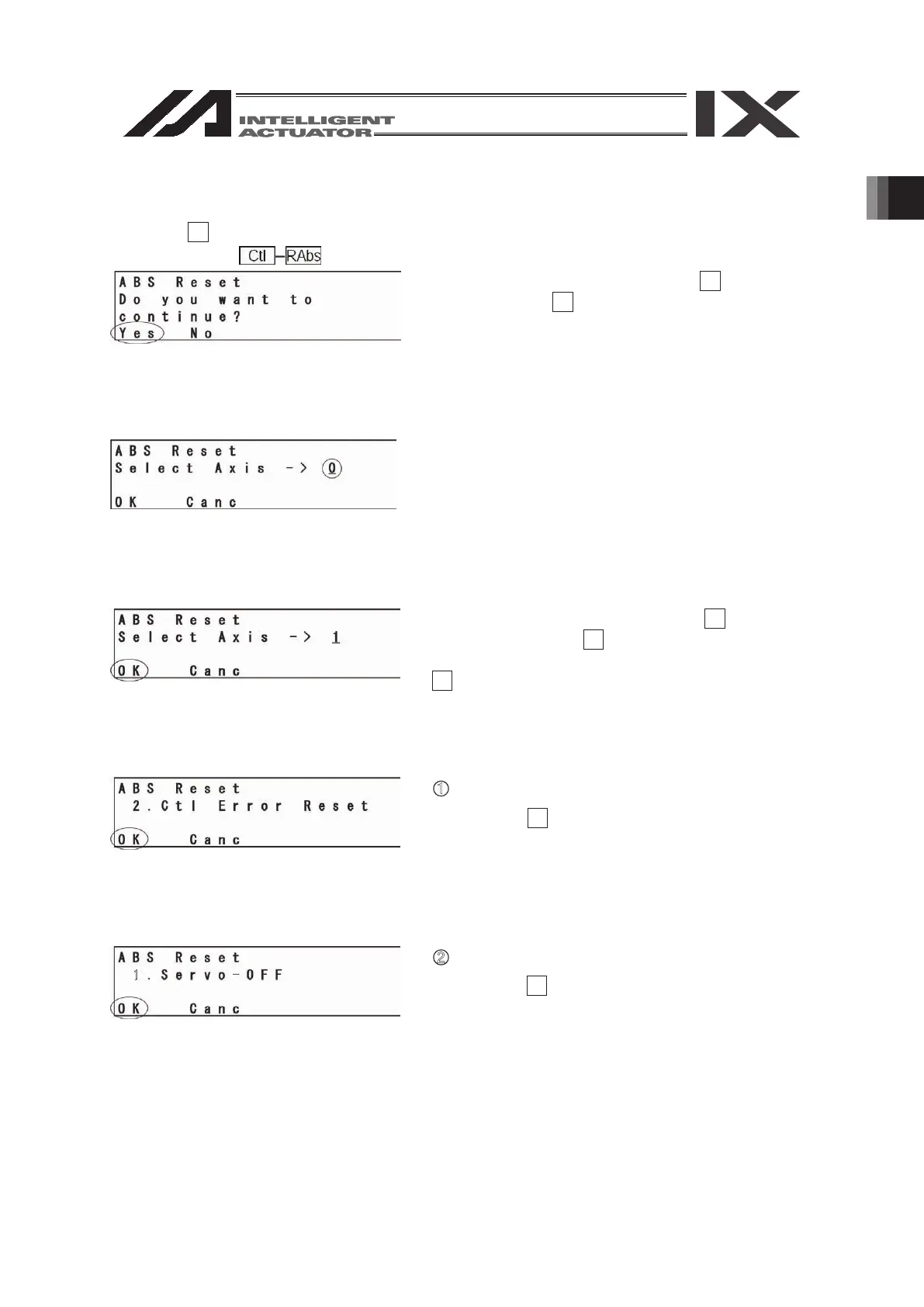

16.13.2. Absolute Reset of the orthogonal axis: PSEL controller
Executes absolute data reset.
Select the F1 (RAbs) key on the controller item screen.
Mode Transition:
To execute absolute reset, press the F1 (Yes) key.
If not, press the F2 (No) key. Return to the previous
screen.
Axis No. Input
Input the axis No. for executing absolute reset by
using the 10 keys and press the return key.
To continue absolute reset, press the F1 (OK) key.
To cancel, press the F2 (Canc) key.
To cancel on screens ①~⑧ (see below), press the
F2 (Canc) key.
Controller error reset
Press the F1 (OK) key.
Servo OFF
Press the F1 (OK) key.
1
①
②

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
