17. Gateway Function Associated
266
17. Gateway Function Associated
In the case of the XSEL-P/Q/PX/QX, XSEL-R/S/RX/SX/RXD/SXD controllers with the RC gateway
function, the following operations are available.
•
Editing of the RC Position Data in X-SEL
•
RC-axis Monitoring
The Gateway Function Associated is applied to the SEL-T/TD version V1.02 and later.
17.1. Editing of the RC Position Data in X-SEL

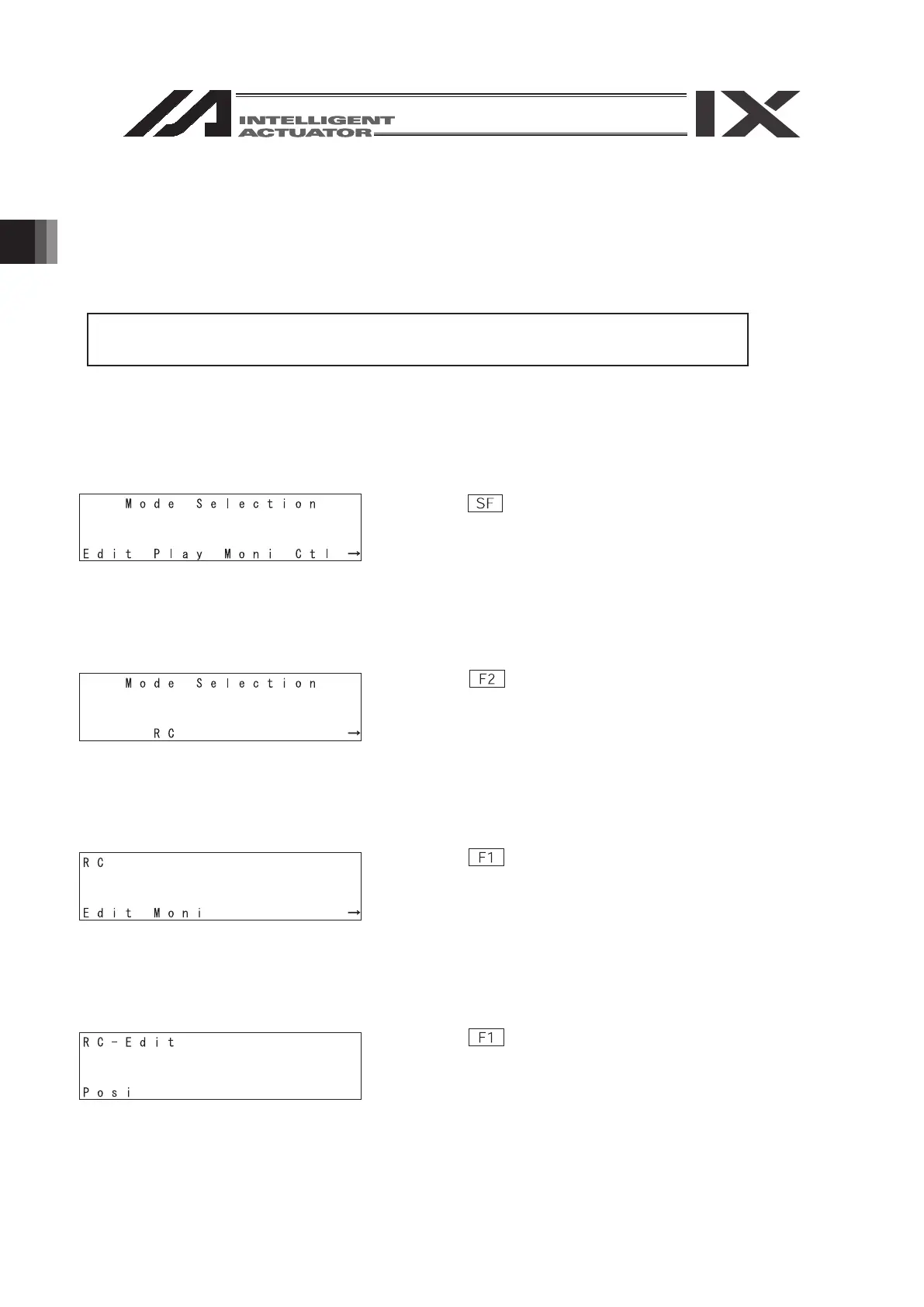

17.1.1. RC Position Data Creation
The RC position data to be set in the X-SEL controller is edited.
Press the key.
Press the key (RC).
Press the key (Edit).
Press the key (Posi).

IAI SEL Specifications

General

Protection Class	IP20
Communication	RS-232C
Control Method	PTP
Number of Axes	Up to 4 axes
Vibration Resistance	4.9 m/s² (0.5 G)
Humidity	20 to 85% RH (non-condensing)
