11. Program Edit

(Excluding the positioner mode of the SSEL, ASEL and PSEL controller.)

170

155

13.5. Program: Clear

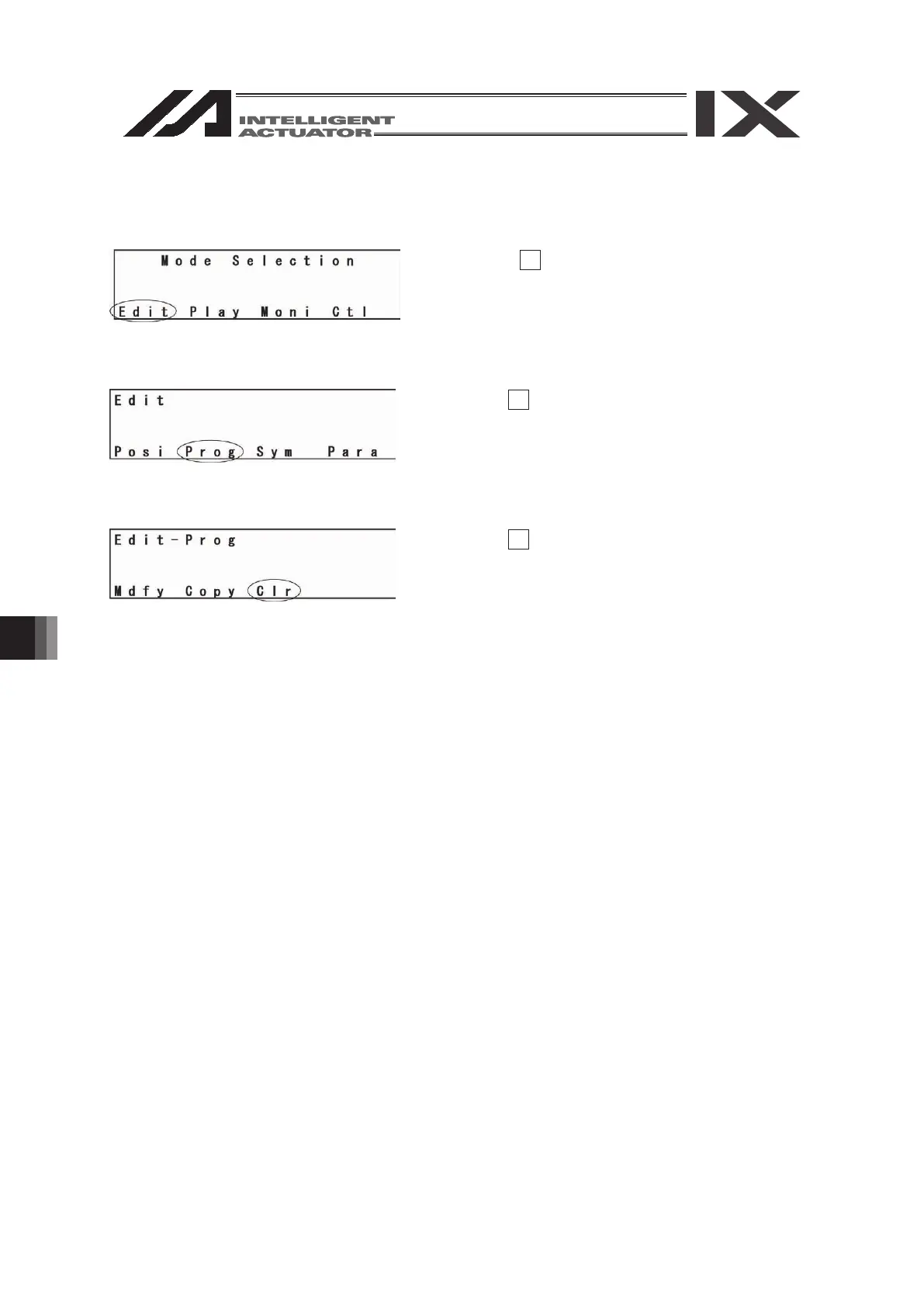

The following operating instructions are to clear a program.

Select the F1 (Edit) key on the mode selection

screen.

Select the F2 (Prog) key.

Select the F3 (Clr) key.

11.5.
