IBM V7000 User Manual

Chapter 12. Host configuration 541

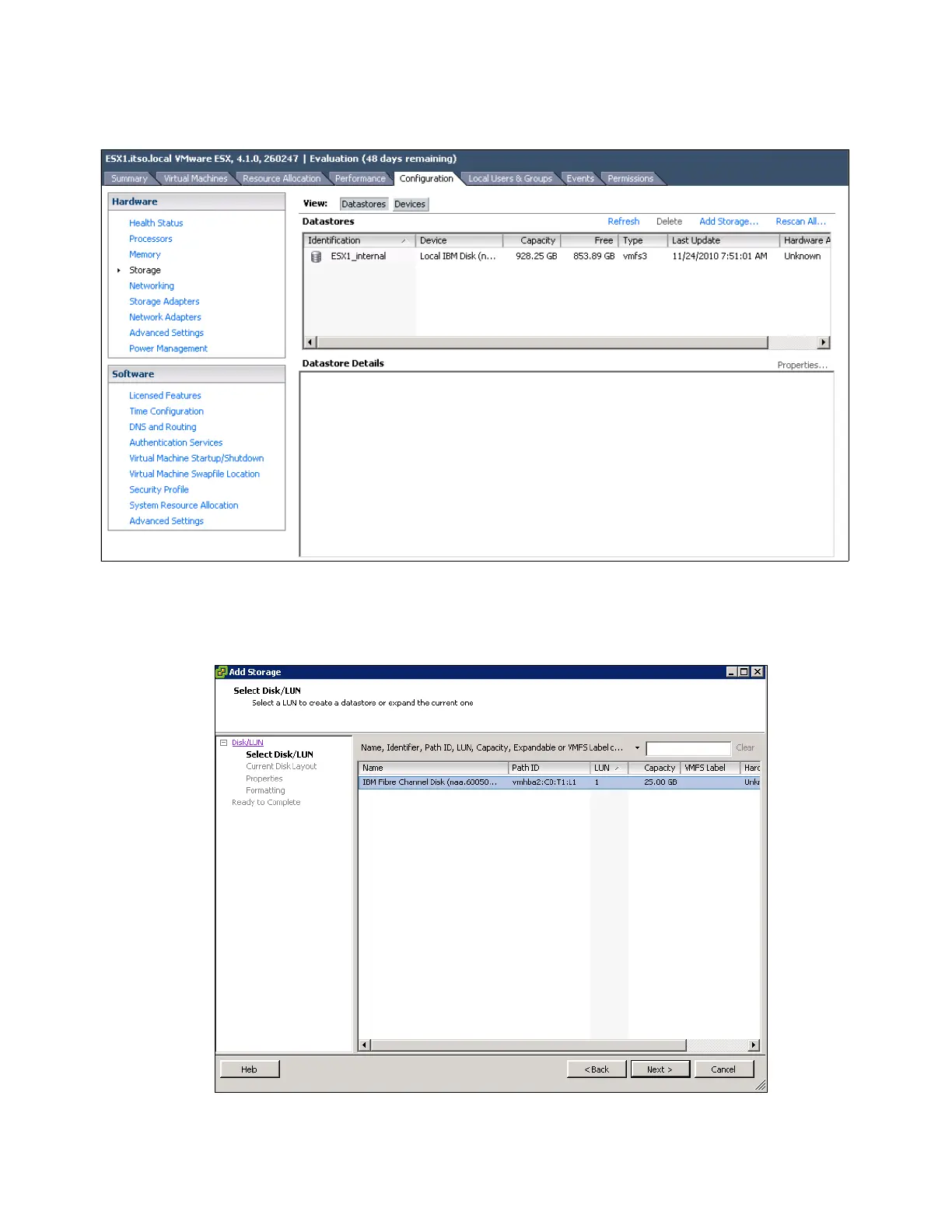

4. Select Storage and click Add Storage (Figure 12-43).
Figure 12-43 vSphere Client: Storage
5. The Add Storage wizard opens. Click Select Disk/LUN and click Next. The IBM Flex
System V7000 Storage Node disk appears (Figure 12-44). Highlight it and click Next.
Figure 12-44 Select Disk/LUN menu

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
