Icom IC-E92D Instruction Manual

23
5
BASIC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

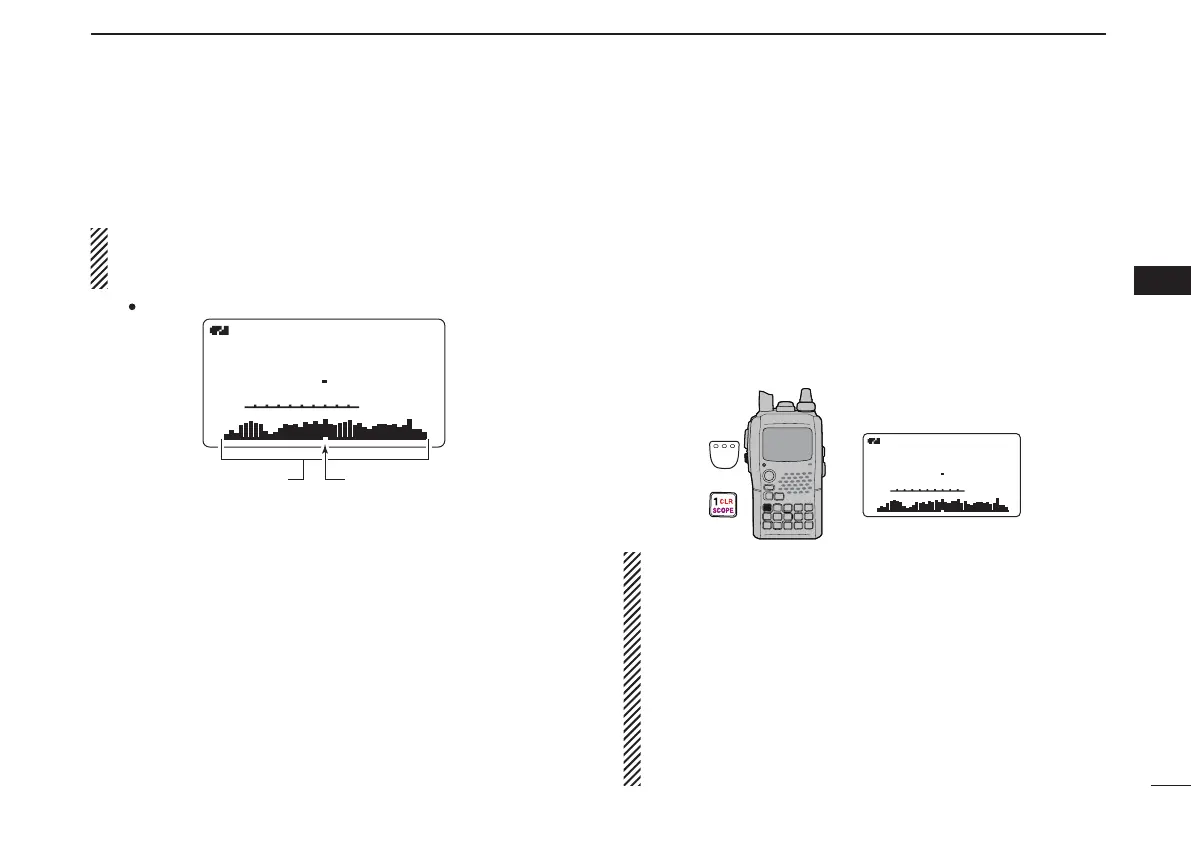

■ Band scope
The band scope function allows you to visually check a
specifi ed frequency range around the center frequency.
About the sweep steps: The specified tuning step in
each frequency band
(in VFO mode) or programmed tuning
step
(in memory mode) is used during sweep.
D Single sweep
q Set the desired frequency as band scope center fre-
quency.
• Push [MAIN/DUAL] to select “MAIN band” during dual watch.
w Push and hold [SCOPE](1) for 1 sec. to start a single
sweep.
• 1 short and 1 long beeps sound.
• Signal conditions (strengths) appear starting from the left of the
range.
e Rotate [DIAL] to set the highlighted cursor to the desired
signal and set the frequency of the signal.
r Push [VFO] to return to normal operation.
D Continuous sweep
q Set the desired frequency as band scope center fre-
quency.
• Push [MAIN/DUAL] to select “MAIN band” during dual watch.
w Push and hold [SCOPE](1) for 3 sec. to start continuous
sweep.
• 2 short beeps sound after 1 short and 1 long beeps.
• Signal conditions (strengths) appear starting from the left of the
range.
e Push and hold [SCOPE](1) for 1 sec. to cancel sweep.
• Pushing [SQL] also cancels sweep.
r Push [VFO] to return to normal operation.
• The receive audio during sweeping can be muted in
sounds set mode. See p. 115 for details.
• We recommend setting the tuning step to less then
20 kHz when using band scope function.
• Even if a strong signal is present, it may not be displayed
on the band scope if the tuning step is set to wide (ex.125
kHz, 200 kHz, etc)
• The display frequency’s audio sounds for single watch op-
eration within 118–174MHz and 350–470MHz regardless
“Scope AF Output” setting in the MENU screen.
• If ghost waveform or audio appear, operate follow to avoid
those. “tuning step changing,” “selecting dualwatch,” or
“changing non sweep frequency if dualwatch operating”.
PRIO
PRIO
WX
WX
EMR
EMR
DTCS
DTCS
FM
FM
B
A
14
145
780
780
+DUP
+DUP
25
25
µ
000
000
PSKIP
PSKIP
Sweep markerBand scope indication
Single watch mode display
1
SCOPE
CLR
[SQL]
PRIO
PRIO
WX
WX
EMR
EMR
DTCS
DTCS
FM
FM
B
A
14
145
780
780
+DUP
+DUP
25
25
µ
000
000
PSKIP
PSKIP
