ACCESSORY ATTACHMENT
1

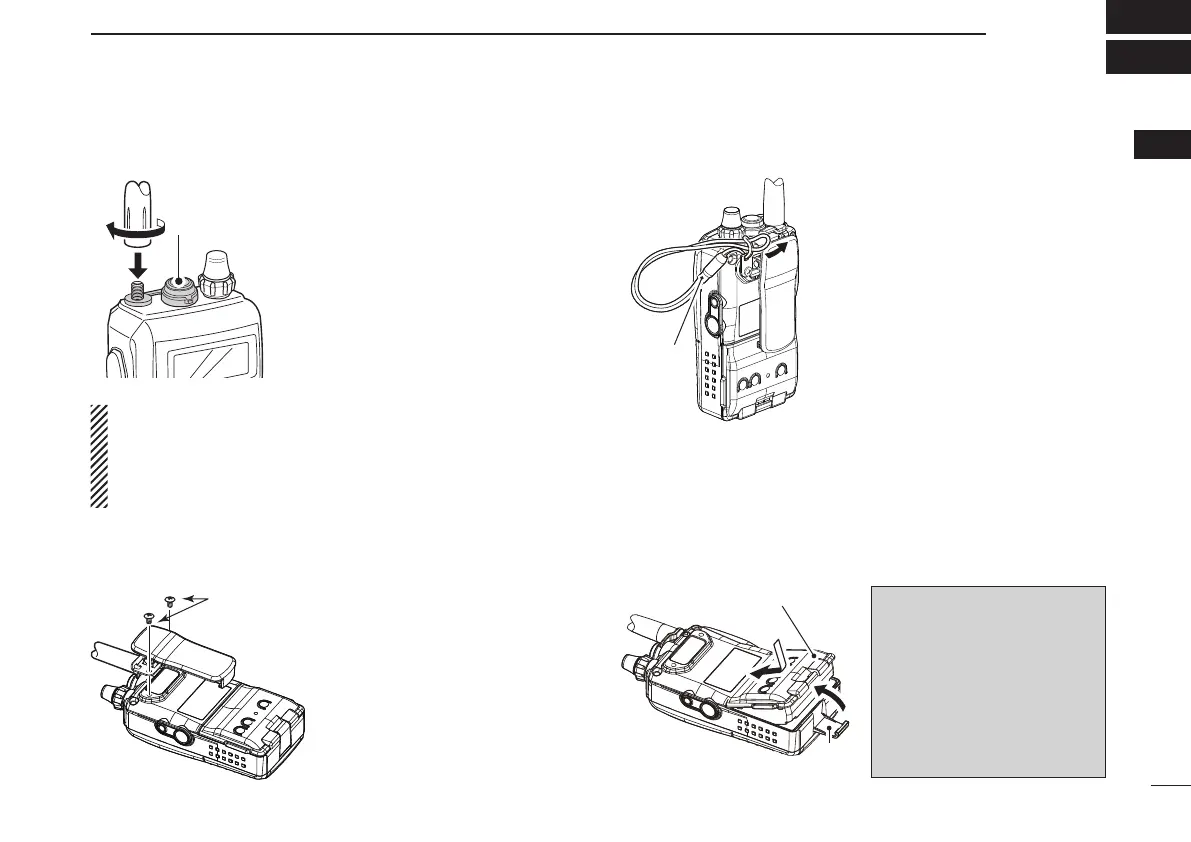

■ Antenna
Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at left.
NEVER carry the transceiver by
holding the antenna.
KEEP the jack cover attached when
jack is not in use to protect the con-
nector from dust and water.
✔ For your information
Third-party antennas may increase transceiver perform-
ance. An optional AD-92SMA
ANTENNA CONNECTOR
ADAPTER is available to connect an antenna with a BNC
connector.
■ Belt clip
■ Hand strap
Slide the hand strap through the
loop on the top of the belt clip as
illustrated at left to facilitate carrying
the transceiver.
■ Battery pack
Attach the Li-Ion battery pack (BP-256) or battery case
(BP-257) as illustrated below.
• Charge the Li-Ion battery pack before use. (pgs. 10, 11)
Handstrap
Supplied screws*
*NOTE:
USE the supplied screws
only. Using screws longer
than specified could damage
the transceiver.
q
w
Battery pack/Battery case
Latch
CAUTION!:
NEVER attach or detach the battery
pack when wet.
Be careful when releasing the latch.
Because the latch is tightly locked,
don’t use a finger nail to open it—
you may injure yourself. Instead, use
something relatively flat, like the
edge of a coin or the tip of a
screwdriver, to carefully release the
latch.
