DV MODE OPERATION
New2001
7
Area 1
Zone
to another Zone
• Setting example 1
Repeater 1
: A11111
Area 2 Repeater 2
: A22222
Area 3
(Gateway)
Repeater 3
: A33333
Area 4 Repeater 4
: A44444

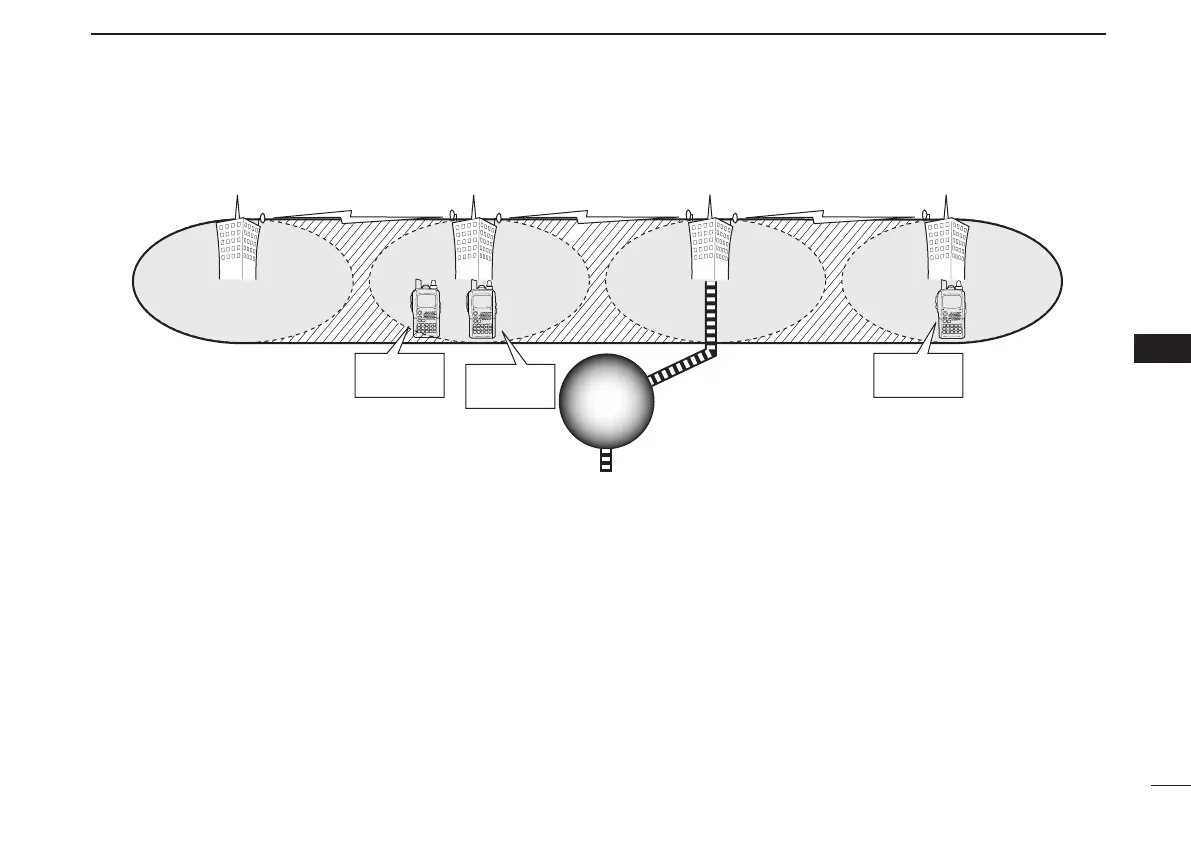

✔ What is the area?
The Area is the communication range that is
covered by a single repeater.
The repeater is called an area repeater in the
D-STAR system.
✔ What is the zone?
The Zone is composed of several areas, that
are linked by a 10 GHz microwave link.
The areas 1 to 4 make up a zone in the
example above.
Station A
: A2222A
Station B
: A2222B
Station C
: A4444C
Internet
Internet
network
network
Internet
network
❑ The setting when Station A is call-
ing Station B
UR : A2222B
R1 : A22222
R2 : NOT USE✱
MY : A2222A
❑ The setting when Station A is
making a CQ call in Area 1
UR : CQCQCQ
R1 : A22222
R2 : A11111
MY : A2222A
❑ The setting when Station A is call-
ing Station C
UR : A4444C
R1 : A22222
R2 : A44444
MY : A2222A
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
