Body Quick Guides 104 Section - 15
Operator’s - Manual # 99906363
Lights

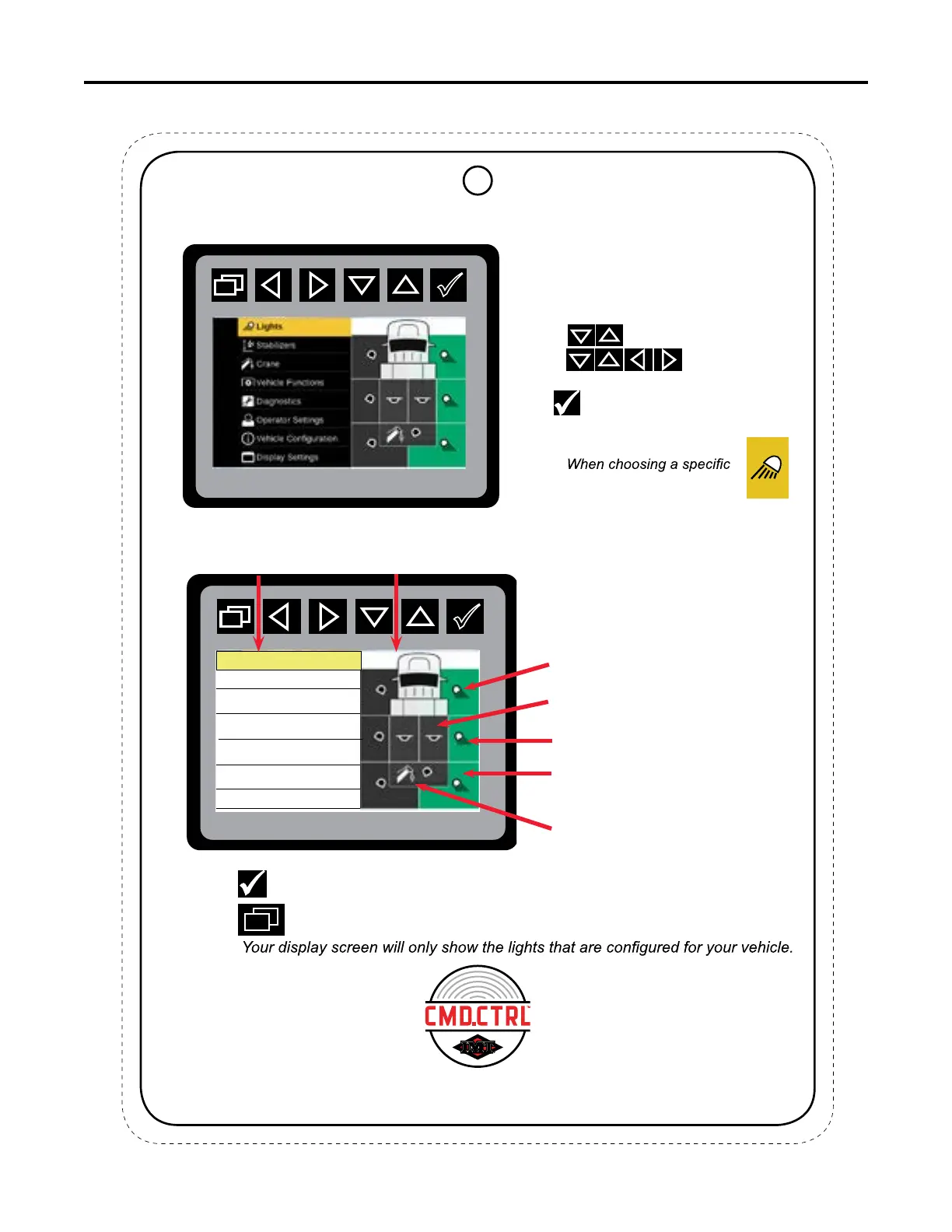

The Lighting Screen will be split into two areas:
• Light Group (left sidebar),
• Status and Individual Selection (right sidebar).
From the Main Menu:
1. Press
to select Lights Mode.
light, the illustration will turn
yellow
Press
to choose light(s).
Light Menu
3. Press
to turn power ON or power OFF selected light groups or individual lights.
4. Press
to return to Main Screen.
All
Compartment Lights
Front
Rear
Left
Right
Boom Tip Lights
☛
Left sidebar
Light Group
Right sidebar
Status and
Individual Selection
Front Left / Right Flood Lights
Rear Left / Right Flood Lights
Middle Left / Right Flood Lights
Boom Tip Lights
Main Menu: Lights Preview
Compartment Lights
LIGHTS
2. Press to select individual
light group.
This chart is to be used as a “quick reference” guide only.
It should not be substituted for a thorough review of the manual.
70490137
3
To Next Page
