IMT CMD.CTRL - Stabilizer Screen

Radio Remote 87 Section - 13
Operator’s - Manual # 99906363

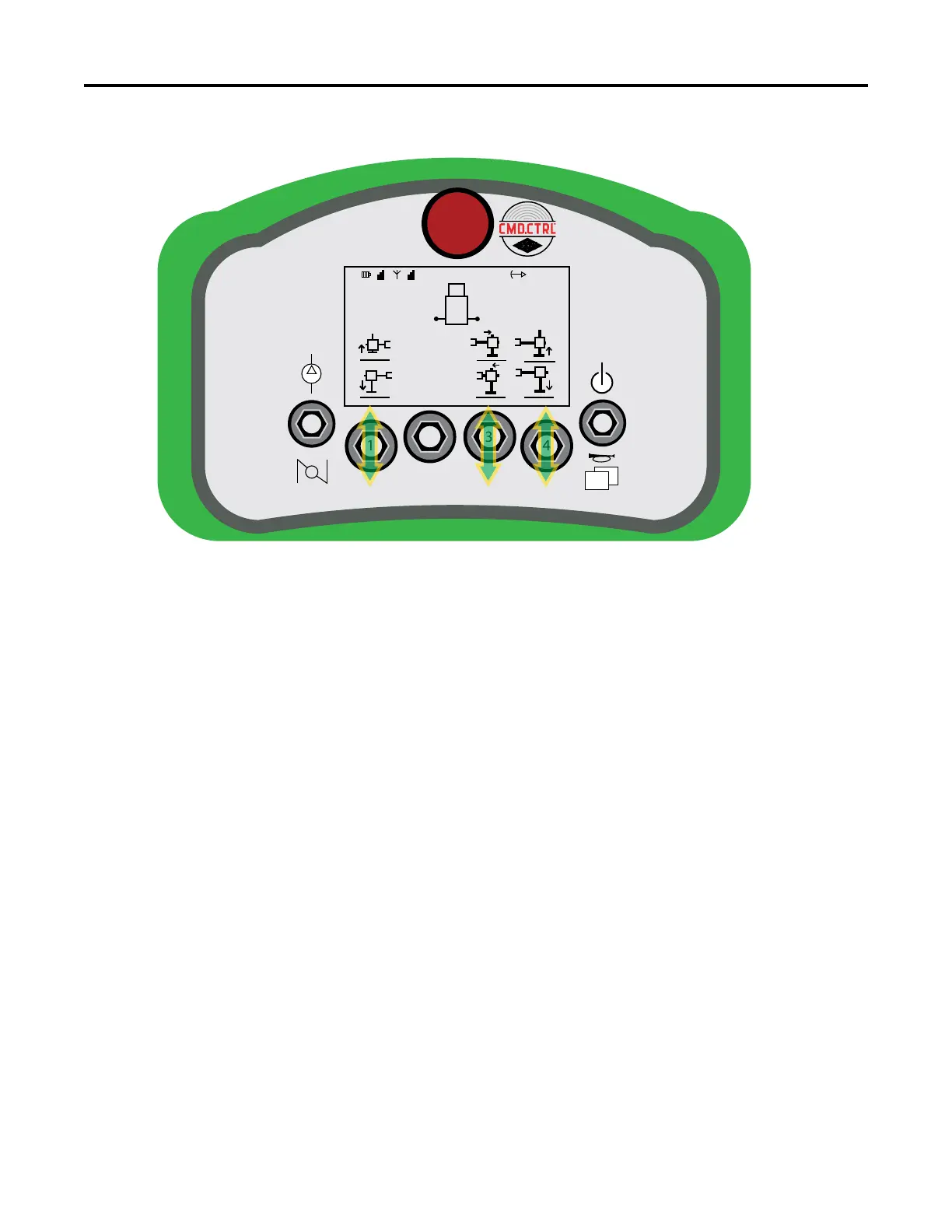

Stabilizer Screen
Right-Hand Crane without Auto Stabilizer Option
When in Stabilizer Screen:
Soft Toggle 1 UP: Rear left stabilizer UP.
Soft Toggle 1 DOWN: Rear left stabilizer DOWN.
Soft Toggle 2 UP: NA
Soft Toggle 2 DOWN: NA
Soft Toggle 3 UP: Right Rear EXTEND.
Soft Toggle 3 DOWN: Right Rear RETRACT
Soft Toggle 4 UP: Right Rear.
Soft Toggle 4 DOWN: Right Rear
M-STOP
1
2 3
4
